Trijicon Ascent Scopes

Trijicon Ascent Scopes

Trijicon Ascent scopes combine non-illuminated black BDC Target Holds reticles with matte black bodies and capped adjustments. The lineup spans 1-4×24, 1-6×24, 3-12×40, and 4-16×50 configurations. Each has a 30 mm tube and a second-focal-plane reticle, so the main choices are magnification, objective size, weight, and the space the scope requires.

Compare the Ascent Magnification Ranges

1-4×24: The Lightest Option

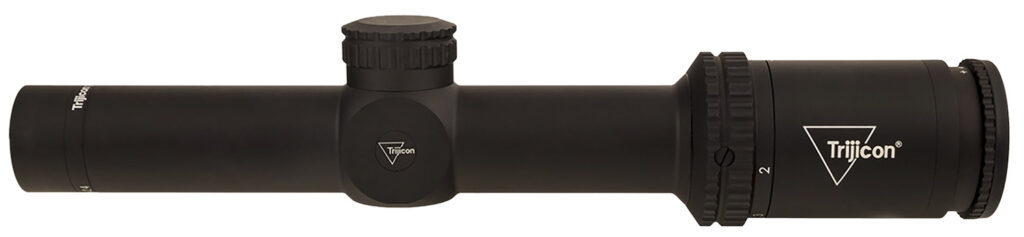

The Ascent 1-4×24, model AT424-C-2800001, weighs 15.9 ounces and measures 10.4 inches long. It is the lightest of these four models and suits buyers who prioritize a compact optic over higher magnification. Its 24 mm objective and 1x starting point distinguish it from the larger-objective Ascent models.

1-6×24: More Top-End Power in an LPVO

Model AT624-C-2800003 retains the 24 mm objective and 1x minimum magnification while extending the upper end to 6x. It weighs 17.8 ounces, or 1.9 ounces more than the 1-4×24. Both are low-power variable optics, but the 1-6×24 gives you a wider magnification range. You can also explore the broader Trijicon LPVO collection.

3-12×40: Higher Magnification at 17.8 Ounces

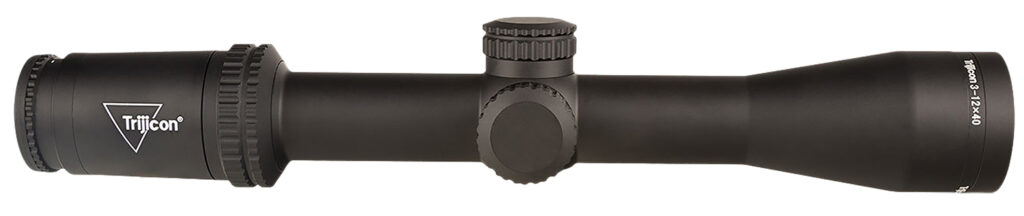

The Ascent 3-12×40, model AT1240-C-2800002, adds a 40 mm objective and up to 12x magnification. It weighs the same 17.8 ounces as the 1-6×24, though its optical layout and 3x starting point are different. This model offers a middle ground between the low-power scopes and the larger 4-16×50.

4-16×50: The Largest Objective and Highest Upper Range

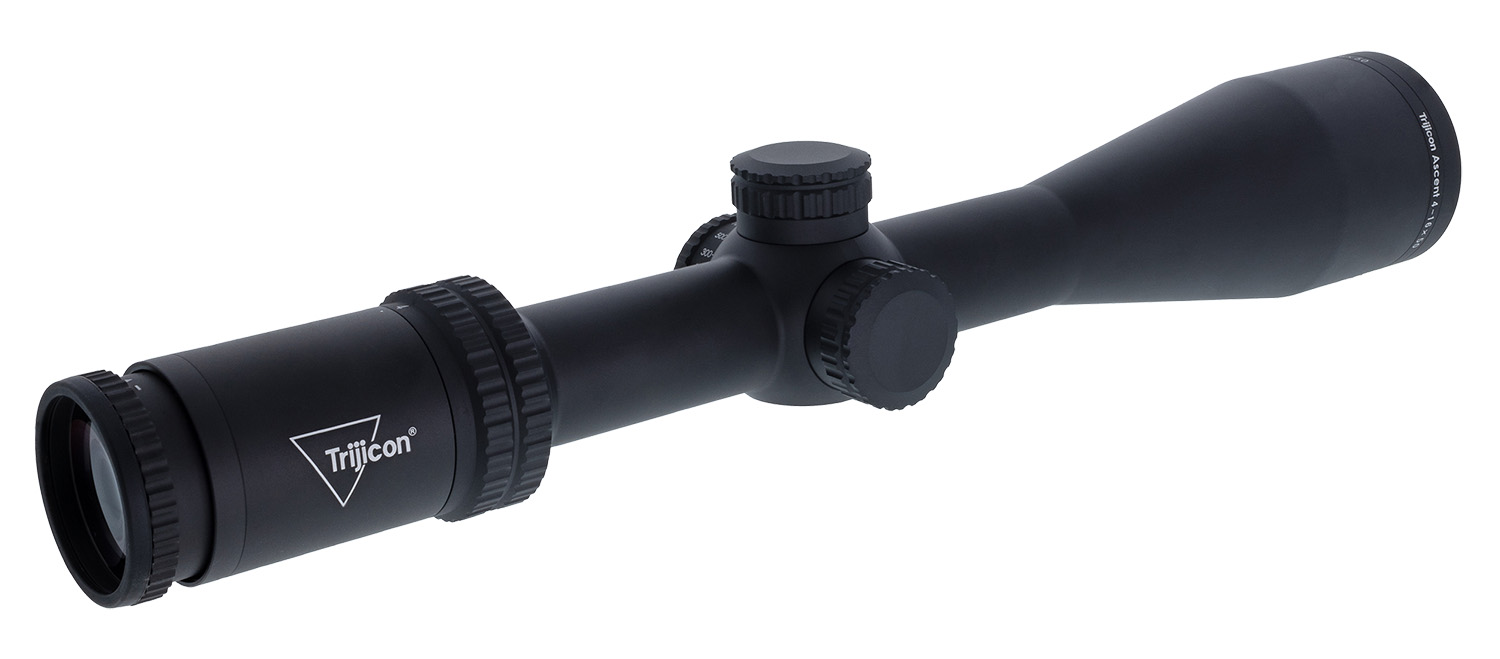

Model AT1650-C-2800004 pairs a 50 mm objective with 4-16x magnification. At 24.2 ounces, it is 6.4 ounces heavier than the 3-12×40. That added weight and the larger objective housing are worth considering alongside its higher magnification, especially when comparing overall scope size and mount clearance.

What the Ascent Models Share

All four scopes have fully multi-coated lenses with broadband anti-reflective and scratch-resistant coatings. Their aluminum housings are dry-nitrogen filled to resist internal fogging. Capped windage and elevation controls use 1/4 MOA clicks, while a focusing eyepiece allows adjustment for individual eyesight. These are non-illuminated optics, not scopes with a powered or glowing center dot.

The BDC Target Holds name is shared across the lineup, but the reticle dimensions are model-specific. The second-focal-plane design keeps the reticle the same apparent size as magnification changes. Compare the reticle illustration for the exact model as well as its magnification range; a shared reticle name does not mean every version has identical spacing.

Mounting and Included Accessories

Each model comes with a lens cap, Scopecoat cover, quick reference guide, warranty card, and vinyl logo sticker. Rings or a scope mount are separate. All four use a 30 mm tube, but objective housing size and clearance still differ. The 24 mm, 40 mm, and 50 mm designations describe the objective lenses, not the outside diameters of their housings.

Frequently Asked Questions

Are Trijicon Ascent scopes illuminated?

No. These four Ascent models use non-illuminated black BDC Target Holds reticles. They have no brightness settings and do not need batteries. A non-illuminated reticle should not be confused with a battery-free illuminated reticle.

Are these first- or second-focal-plane scopes?

All four are second-focal-plane scopes. The reticle stays the same apparent size while the viewed image changes with magnification. The manufacturer provides a separate reticle diagram for each model.

Which Ascent models are LPVOs?

The 1-4×24 and 1-6×24 are the low-power variable models in this group. Both start at 1x and have 24 mm objectives. The 3-12×40 and 4-16×50 start at higher magnifications and have larger objectives.

Which model is lightest?

The 1-4×24 is lightest at 15.9 ounces. Both the 1-6×24 and 3-12×40 weigh 17.8 ounces, and the 4-16×50 weighs 24.2 ounces. These figures are for the scopes, not a scope-and-mount combination.

Are the adjustments measured in MOA or MRAD?

All four models use 1/4 MOA clicks. The 1-4×24 and 1-6×24 have 100 MOA of total travel for each adjustment axis; the 3-12×40 and 4-16×50 have 70 MOA. None of these four configurations uses MRAD clicks.

Are rings or a mount included?

No. The included accessories provide lens and scope protection, but mounting hardware is separate. A 30 mm tube specification establishes the required ring diameter, not the complete fit or clearance of a mount.

Explore More Trijicon Options

For other magnification ranges and reticle configurations, browse the Trijicon Rifle Scopes collection.
