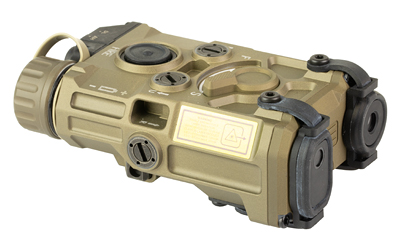

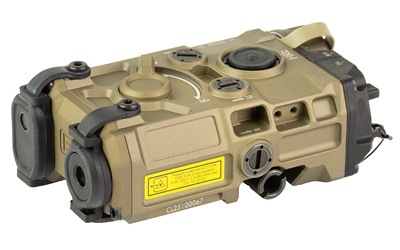

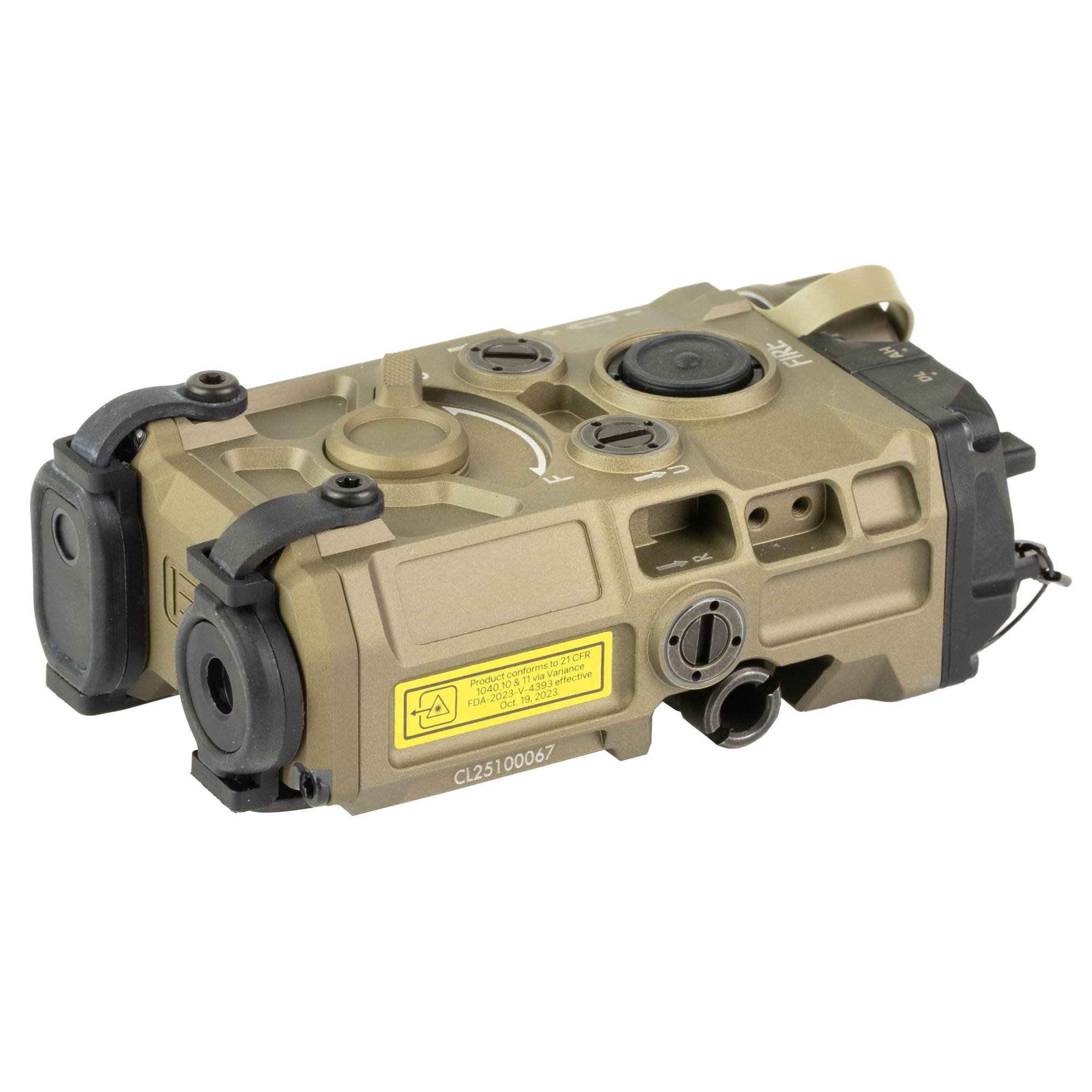

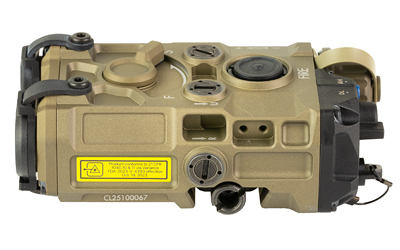

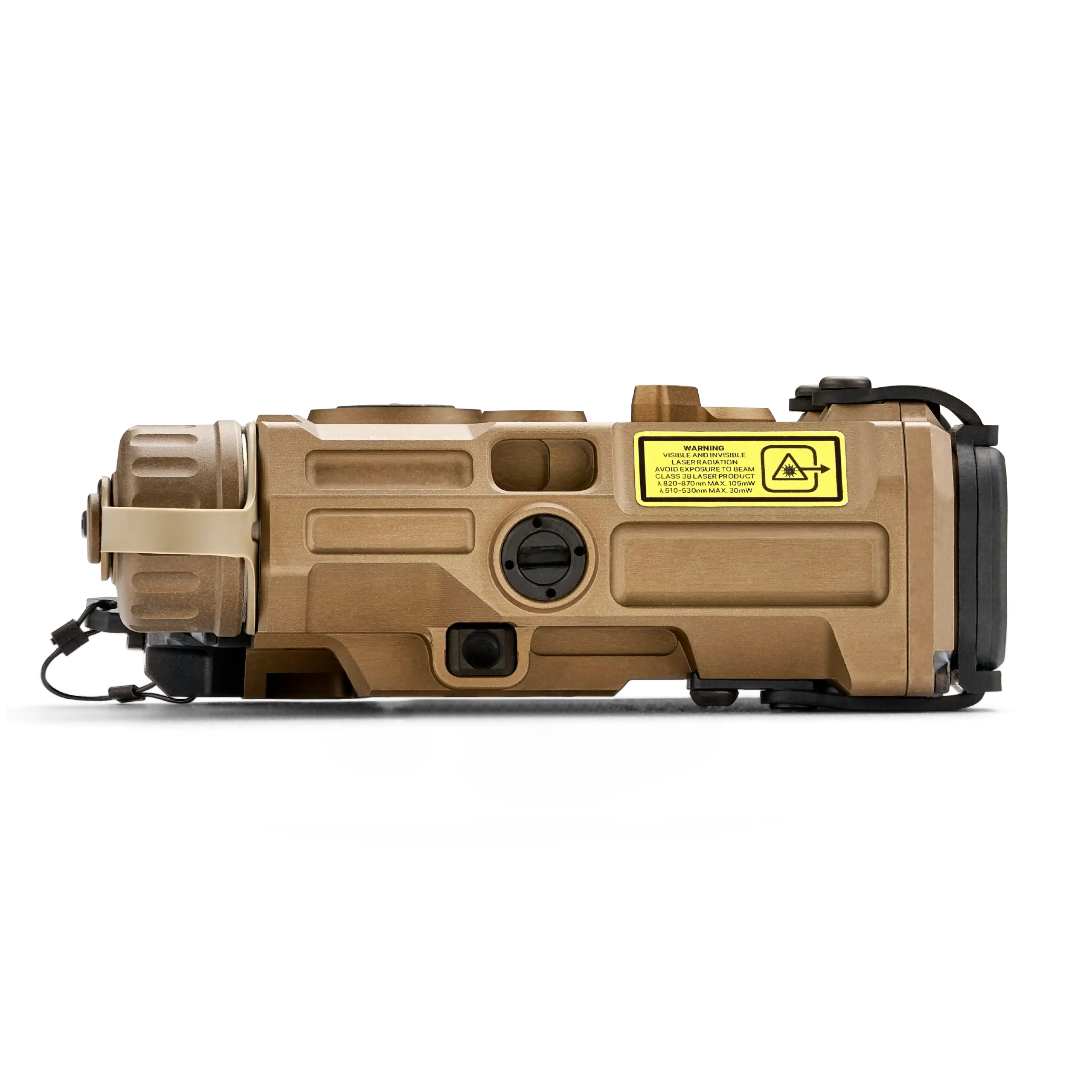

EOTECH OGL Commercial Power On-Gun Laser, Tan

EOTECH OGL Commercial Power On-Gun Laser, Tan Features and Performance

The EOTECH OGL Commercial Power On-Gun Laser, Tan is the commercial-power EOTECH OGL C on-gun laser module, built for shooters who want a compact visible/IR aiming and illumination system in an eye-safe, consumer-ready package. It is based on the proven OGL platform and gives you co-aligned green visible and IR aiming lasers, a dedicated IR illuminator, and intuitive controls in a rugged all-aluminum housing.

This OGL C is designed for top-rail mounting and can be adapted to either side of the handguard to help avoid interference with front iron sights. The co-aligned aiming lasers simplify zeroing, while the adjustable IR illuminator uses a VCSEL diode with a sliding divergence control so you can move from a tighter spot to a wider flood beam. That makes the unit useful for daylight aiming, low-light work, and night-vision-supported shooting.

The control layout is made for practical rifle use, with a mode selector, windage and elevation adjustments, a focus slide, protective covers, tethered caps, and pattern generators. A single CR123 lithium battery provides up to 9 hours of runtime, and the Crane-type laser port with included Modlite 7" switch gives the OGL C a ready-to-use remote activation setup. The tan finish works well on FDE and two-tone rifle builds while keeping the same compact OGL C feature set.

Key Features

• Commercial-power OGL C model built for the consumer market
• Eye-safe visible and IR laser system
• Co-aligned green visible aiming laser and IR aiming laser for easier zeroing
• Dedicated VCSEL IR illuminator with fast spot-to-flood adjustment
• All-aluminum housing for rugged durability
• Compact module size, similar to a deck of cards
• Top-rail mounting design adaptable to either side of the handguard
• Mode selector, windage and elevation adjustments, focus slide, and protective covers
• Crane-type laser port with Modlite 7" switch included
• Tethered protective caps and pattern generators
• Tan finish

Specifications

• Model: EOTECH OGL Commercial Power / OGL C
• Type: On-gun laser and IR illuminator module
• Visible Aim Laser: Green, 515 nm (+15/-5 nm)
• Visible Laser Output: ≤ 0.5 mW, Class 3R
• Visible Beam Divergence: < 0.5 MRAD
• NIR Aim Laser: 830 nm (±10 nm)
• NIR Aim Laser Output: ≤ 0.67 mW, Class 3R
• NIR Aim Beam Divergence: < 0.5 MRAD
• NIR Illuminator: 850 nm (±10 nm)
• NIR Illuminator Output: ≤ 30 mW, Class 3R
• NIR Illuminator Beam Divergence: Spot ≥ 30 MRAD, Flood ≥ 105 MRAD
• Battery: 1 x CR123 lithium battery
• Runtime: Up to 9 hours
• Housing: All-aluminum
• Included Switch: Modlite 7" remote switch
• Finish: Tan
