Sig Sauer ROMEO5 GEN II ELITE 1x20mm Red Dot Sight, Black

Description

Sig Sauer ROMEO5 GEN II ELITE 1x20mm Red Dot Sight, Black

The SIG ROMEO5 Gen II is SIG’s enclosed rifle red dot. The ROMEO5 is a 1×20 mm sight for a Picatinny rail, built to ride a carbine, PCC, or shotgun without turning into a pistol micro dot.

Confirm the reticle, housing, and mount on the sight you receive. This is not a ROMEOZero pistol sight. Mounting hardware in the box is for a MIL-STD 1913 rail unless the product page says otherwise.

This configuration

The included I-BEAM mount is the 1.41 in. absolute co-witness height, distinct from SOR5193, which uses the 1.93 in. tall I-BEAM. A low M1913 mount is documented only for select GEN II SKUs; this package is defined by the 1.41 in. mount in the box. Match mount height to the host rifle and backup sights. The Elite reticle uses a 1 MOA red center dot, a 65 MOA circle, and 0.7 MOA holdover dots at 6, 10, and 16 MOA. With the sight on, holding both + and − buttons cycles the available reticle combinations. That is a different aiming system from the single 2 MOA dot on standard GEN II models.

What ships

A factory optic is installed only when this page says so. Confirm the reticle on the sight you receive.

Specifications and Included Items

• Model: SOR5105
• Series: ROMEO5 GEN II Elite
• Sight magnification: 1×
• Clear aperture: 20 mm

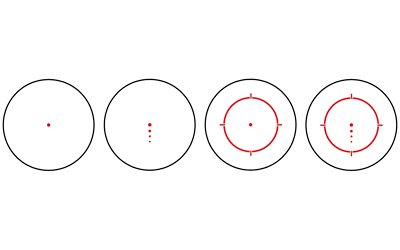

• Reticle: Quad Ballistic Circle Dot 2.0; red 1 MOA center dot, 65 MOA circle, 0.7 MOA holdover dots at 6 / 10 / 16 MOA
• Illumination: 12 settings (10 daylight + 2 night-vision-compatible); MOTAC motion-activated illumination
• Power source: One CR2032 battery; side-loading compartment
• Runtime: 40,000 hours under standard use
• Sight mount: M1913 I-BEAM included; 1.41 in. absolute co-witness height
• Rail interface: MIL-STD 1913 Picatinny; not a pistol slide footprint
• Sight adjustments: 0.5 MOA per click; 100 MOA windage and 100 MOA elevation travel
• Sight eye relief: Unlimited
• Housing: Ruggedized enclosed 1×20 mm tube; multi-coated Mangin lens; IPX-7 waterproof and fog-proof
• Overall length: 2.7 in. / 69.7 mm
• Overall width: 1.6 in. / 39.6 mm
• Height: 2.4 in. / 61.5 mm
• Weight: 5.5 oz. without battery
• Included accessories: 1.41 in. I-BEAM mount; rubber bikini lens cover; multi-tool; T20 L-key; CR2032 battery; lens cloth; operator’s manual
