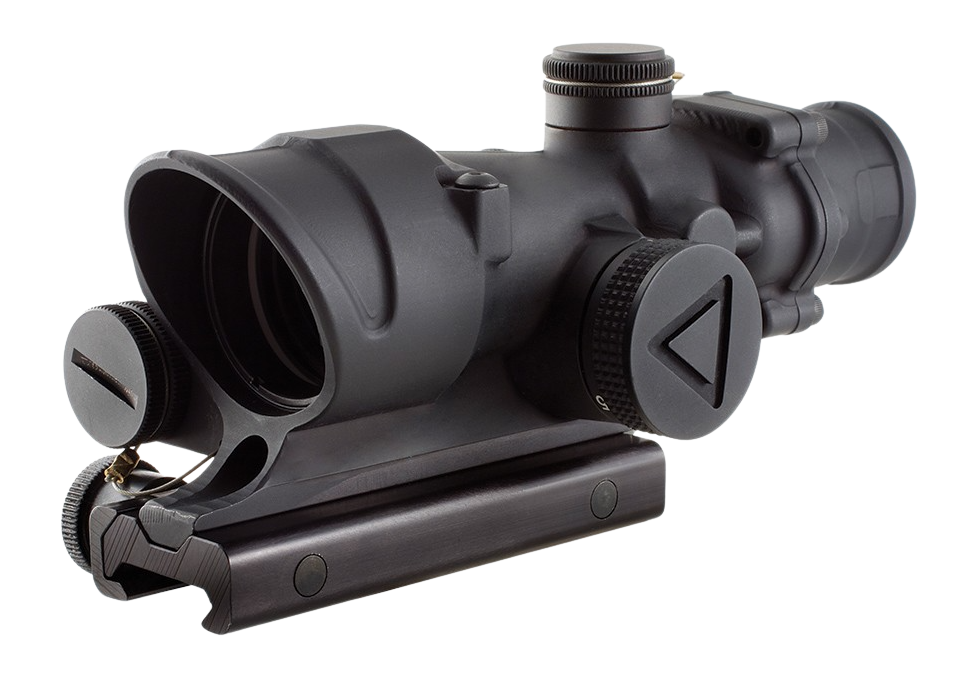

Trijicon ACOG TA02 4×32 LED Riflescope, Red .223 Chevron Reticle, TA51 Mount, Black

Description

Trijicon ACOG TA02 4×32 LED Riflescope, Red .223 Chevron Reticle, TA51 Mount, Black

The Trijicon ACOG TA02-D-100393 4×32 LED riflescope combines a red .223 chevron with manually selected brightness. It includes a TA51 mount and uses a single AA battery instead of fiber optics and tritium.

Red Chevron Reticle

The red chevron provides an open, pointed reference, and the brightness dial lets you adjust its illumination manually. A single AA battery powers the LED; the scope does not use fiber optics or tritium.

An open chevron gives the sight picture a distinct pointed center without filling it with a solid triangle. The additional ballistic markings belong to this particular reticle, so the model designation matters as much as its color when comparing ACOGs.

AA Power with Selectable Brightness

The LED system offers six brightness settings, with an off position between each pair of adjacent levels. You can switch off the illumination without turning the dial all the way back to the lowest setting. Unlike a TA31, the TA02 does not use a fiber-optic collector or tritium to light its reticle.

One AA battery powers the illumination. Trijicon specifies more than 12,000 hours of battery life at brightness setting 4 with an alkaline battery at 70 degrees Fahrenheit; brightness and temperature affect runtime. The etched reticle remains visible without illumination, so switching the LED off does not remove the pattern.

Compact Fixed-Power Construction

The scope combines fixed 4x magnification with a 32 mm objective lens. Its forged 7075-T6 aluminum housing is sealed and nitrogen-filled, protecting the multi-coated optics. It has a 7-degree field of view and an exit pupil of approximately 8 mm.

Included Mount and Fit

The included TA51-style thumbscrew mount attaches to a compatible flattop rail. The ACOG uses a dedicated mounting base rather than conventional riflescope rings. It has a relatively short eye relief of 1.5 inches, so check your available rail space and normal viewing position before choosing a mount.

Details

• Model / Manufacturer Part Number: TA02-D-100393
• Magnification: Fixed 4x
• Objective Lens: 32 mm
• Reticle: Red chevron
• Reticle Calibration / Configuration: .223 / 5.56
• Scope Illumination: Battery-powered LED
• Scope Battery: One AA
• Scope Brightness: Six selectable levels with intermediate off positions
• Eye Relief: 1.5 in.
• Angular Field of View: 7 degrees
• Exit Pupil: Approximately 8 mm
• Scope Adjustment: 1/2 MOA per click
• Housing: Forged 7075-T6 aluminum
• Finish: Black
• Mount / Hardware: TA51-style thumbscrew flattop mount included
• UPC: 719307308213
