Trijicon 30mm Static Cantilever Scope Mount, 1.535-Inch Height

Name: Trijicon 30mm Static Cantilever Scope Mount, 1.535-Inch Height
SKU: 719307618848
Price: 320.00 USD
Availability: OutOfStock

$320.00

Notify me when available

Enter your email and we will let you know when this item is available again.

The AC22054 static cantilever mount fits a 30 mm scope tube at a 1.535-inch optical-axis height. Its forward-offset aluminum body has flush mounting bolts and a matte black anodized finish. It fits compatible Picatinny rails and is listed for objective lenses up to 56 mm.

Out of stock

SKU: 719307618848

Description

Trijicon 30mm Static Cantilever Scope Mount, 1.535-Inch Height

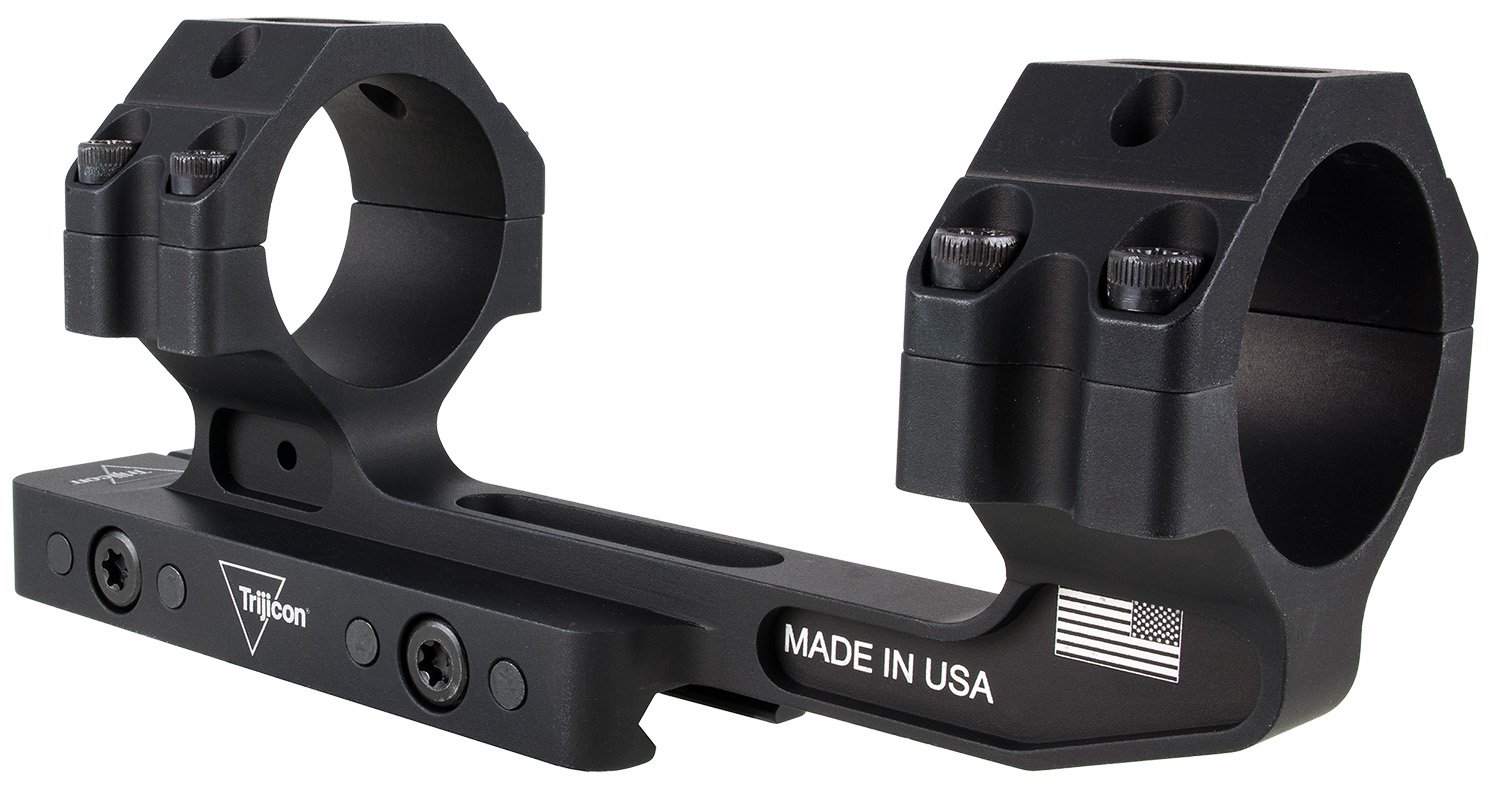

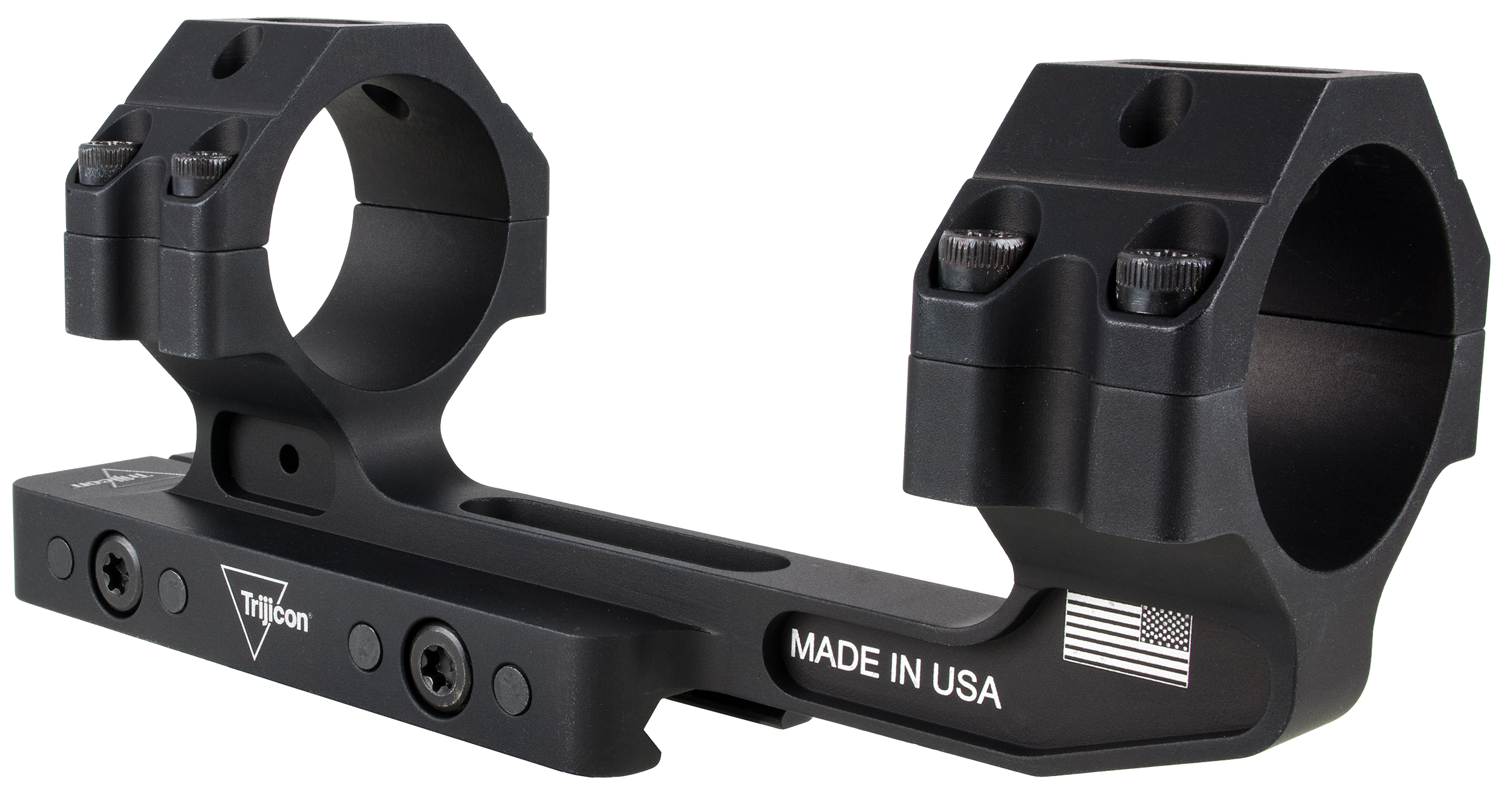

The AC22054 is the 30 mm static cantilever mount with a 1.535-inch optical-axis height. It places the scope rings forward of the rail attachment and uses flush mounting bolts for a streamlined side profile. This is the Slimline static counterpart to the Q-LOC-style cantilever choices, not a spring-loaded quick-release mount.

The body is 6061-T6 aluminum with a matte black anodized finish. It fits compatible Picatinny rails and is listed for objective lenses up to 56 mm. Its 1.535-inch height is the nominal clip-on alignment option in this family, but the scope housing, rifle clearance, and specific accessory dimensions still need to match.

Specifications

Manufacturer part number: AC22054
Scope tube diameter: 30 mm
Mount style: static cantilever / Slimline
Optical-axis height above the rail: 1.535 inches
Rail compatibility: MIL-STD-1913 / NATO Picatinny
Material: 6061-T6 aluminum
Finish: matte black anodized
Manufacturer-listed objective lens size: up to 56 mm; actual clearance depends on the scope and firearm
Includes: one mount, two ring caps, eight screws, and one hex key
