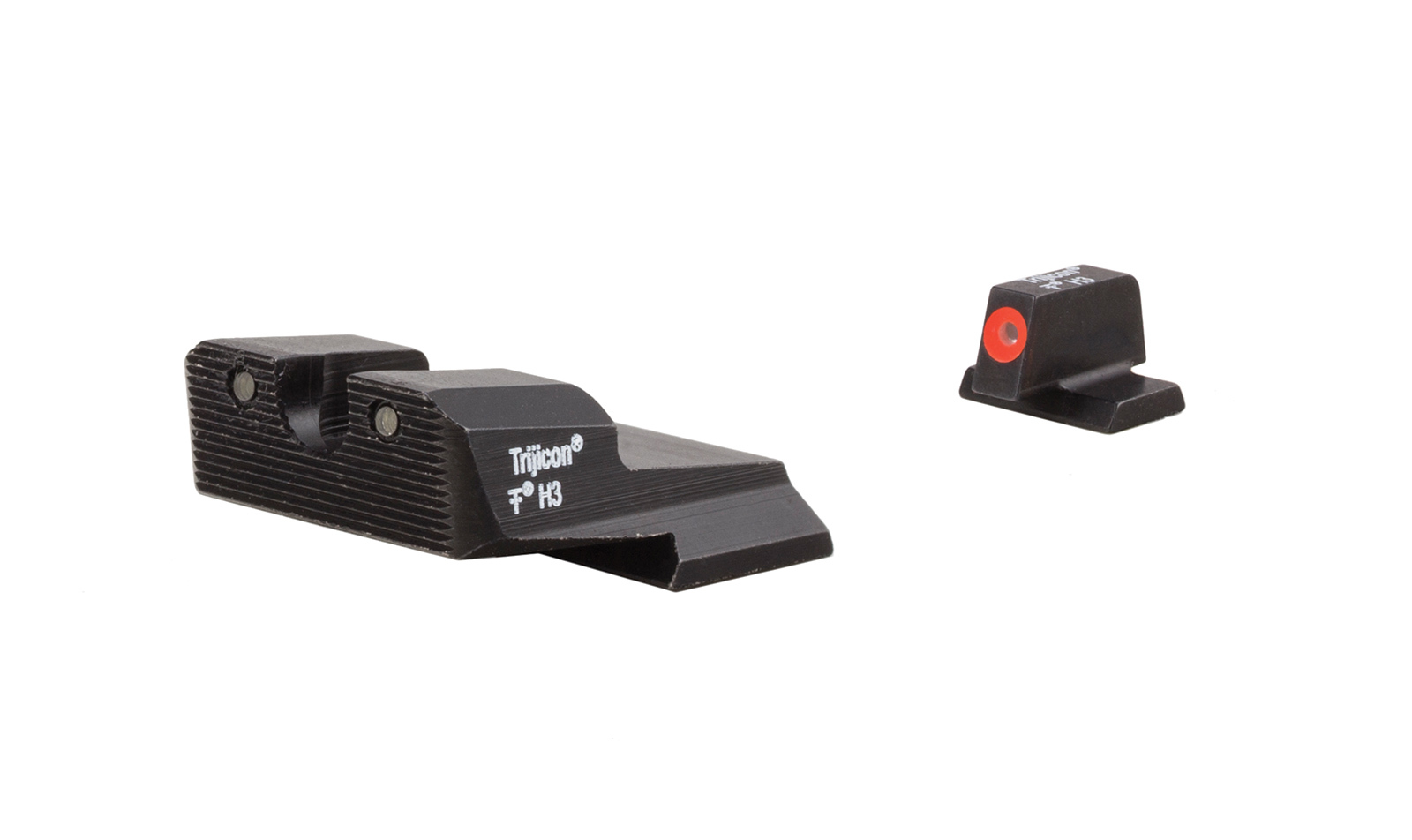

Trijicon HD XR Night Sight Set for Smith & Wesson M&P Shield, Orange Front Outline
This Trijicon HD XR set gives the Smith & Wesson M&P Shield an orange front outline with a thin front post and U-notch rear. Model SA639-C-600856 is the Shield-specific sight pair for the listed 9mm, .40 S&W, and .45 ACP applications.
The 0.122-inch front post is paired with an orange photoluminescent ring, providing contrast without relying on a fiber-optic rod. Green tritium lamps illuminate the three dots independently of battery power. Black rear outlines and rear-face serrations keep the rear sight visually subdued.
This Shield-specific application also covers Shield Plus and Shield M2.0 models, but excludes the Shield EZ series. It is separate from the set for conventional M&P and SD VE pistols. The package includes one front and one rear sight, with professional installation recommended.
Specifications
- Manufacturer model: SA639-C-600856
- Compatibility: Smith & Wesson M&P Shield in 9mm, .40 S&W, and .45 ACP; Shield Plus and Shield M2.0; excludes Shield EZ
- Configuration: Standard-height night sight set
- Front outline: Orange, photoluminescent
- Front-post width: 0.122 inch
- Illumination: Green tritium at the front and both rear dots; no batteries required
- Rear sight: Serrated U-notch with black lamp outlines
- Set contents: One front sight and one rear sight
- Front blade height: 0.185 inch
- Overall front blade height: 0.252 inch
- Rear blade height: 0.262 inch
- Overall rear height: 0.352 inch
- Rear notch width: 0.169 inch
