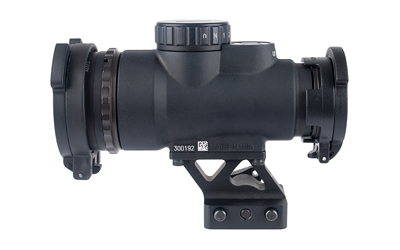

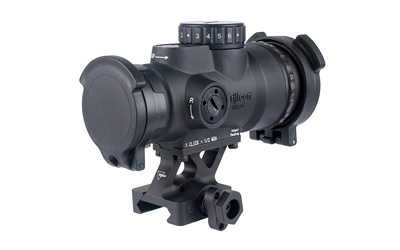

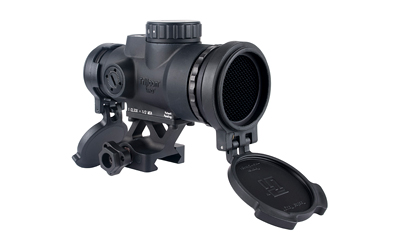

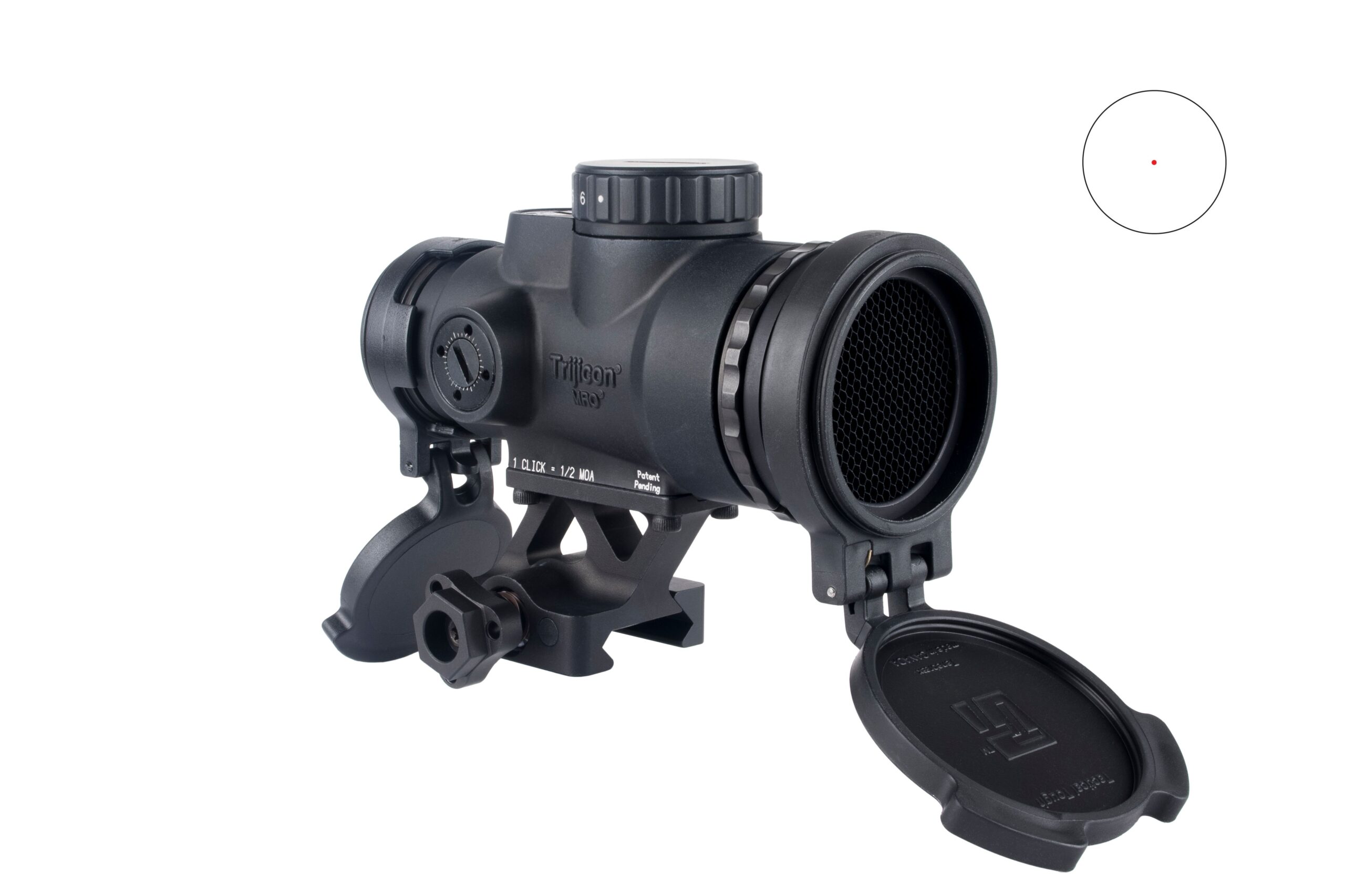

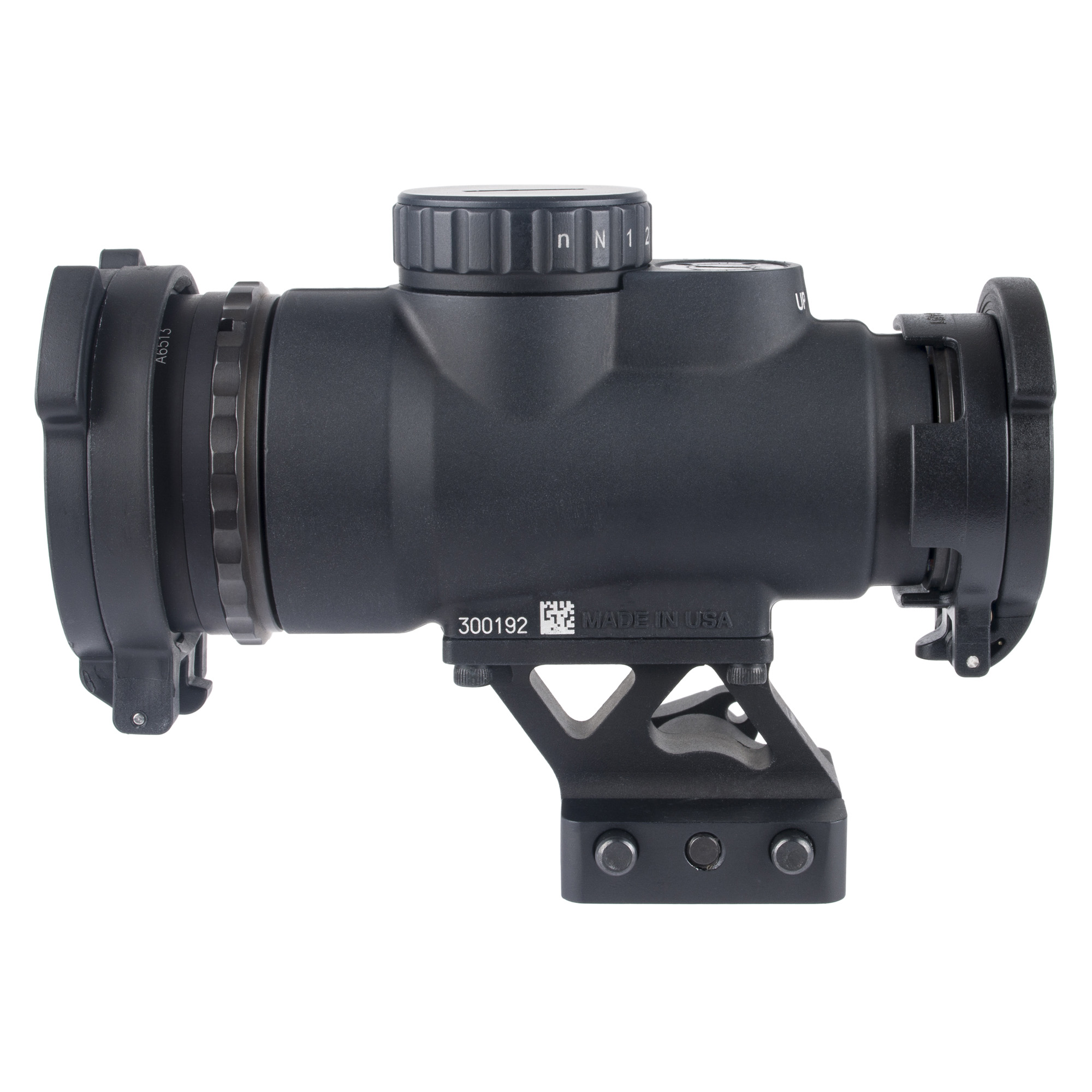

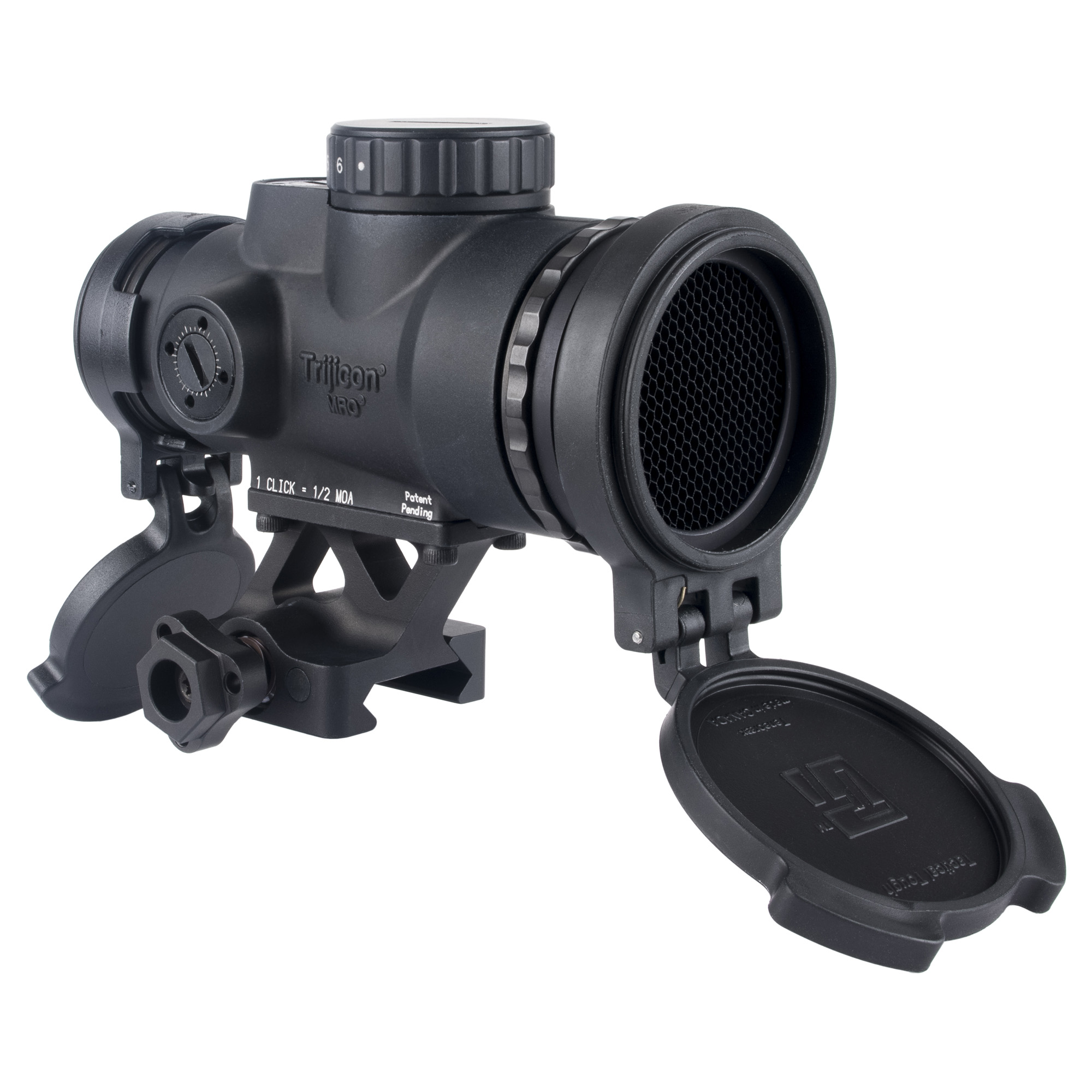

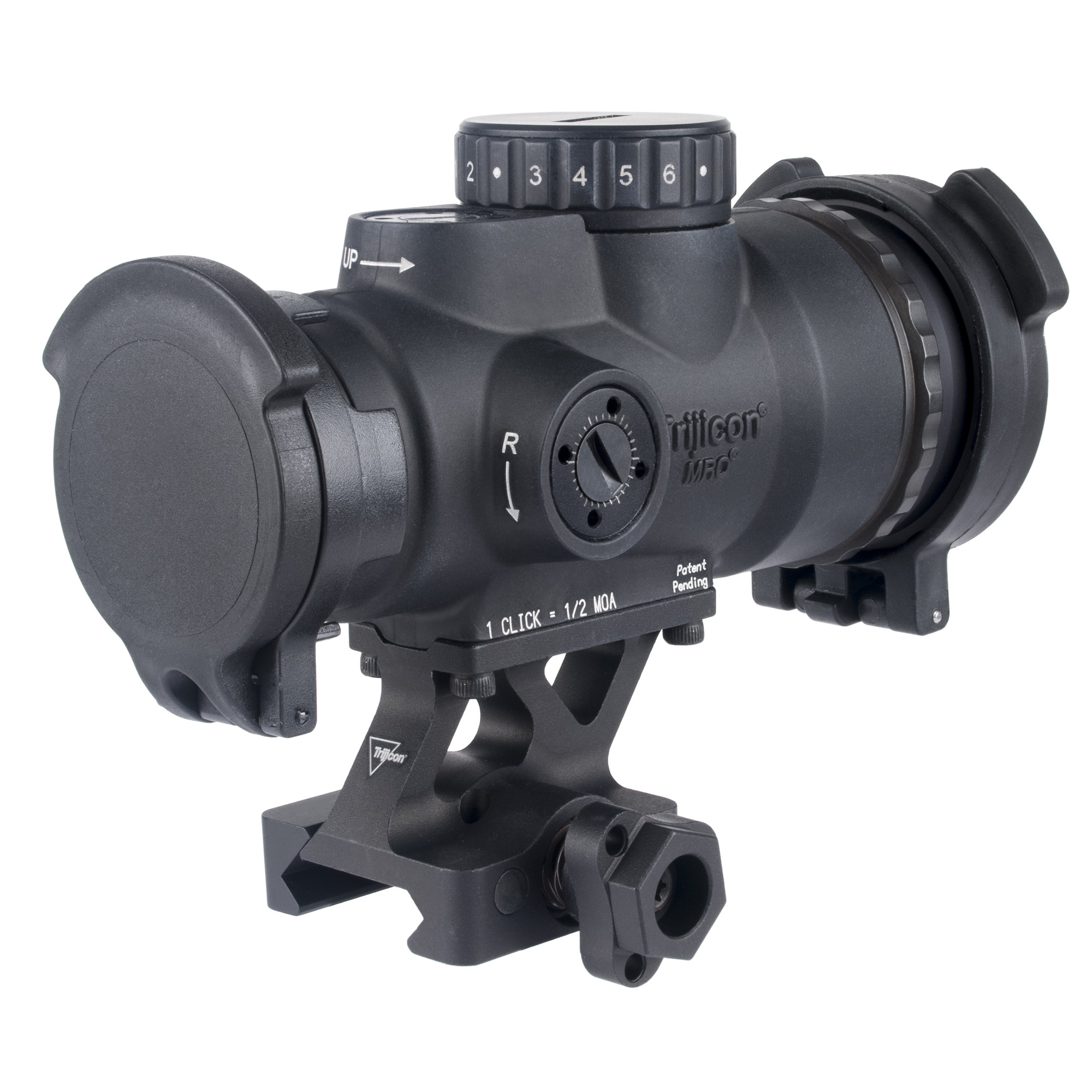

Trijicon MRO SD Patrol 1×25 2 MOA Red Dot Sight, Lower 1/3 Co-Witness Q-LOC Mount, Black

Description

Trijicon MRO SD Patrol 1×25 2 MOA Red Dot Sight, Lower 1/3 Co-Witness Q-LOC Mount, Black

The Trijicon MRO SD Patrol 1×25 red dot sight with a lower 1/3 Q-LOC mount combines a red 2 MOA dot with the AC32071 quick-release base. The black MRO-C-2200354 also includes front and rear lens covers and an anti-reflection device.

The included AC32071 Q-LOC mount positions the sight at lower 1/3 co-witness height. This version shares the full co-witness Patrol model’s reticle and illumination controls, but uses a taller mount.

A Simple 2 MOA Red Dot

The red LED creates a single 2 MOA dot without a surrounding circle. The sight has 1x magnification and a 25 mm objective lens, giving you an unmagnified view. Unlike a conventional riflescope, the MRO SD does not require a fixed eye-relief distance to see its illuminated dot.

The SD generation uses a revised objective lens and optical coatings designed for compatibility with the Trijicon MRO 3x magnifier. Its mounting footprint remains the same as the original MRO. You can use the updated optic with a compatible MRO mount you already own.

Manual Brightness and Top-Loading Battery

The top-mounted dial gives you eight brightness settings: two night-vision-compatible levels, five daylight levels, and one extra-bright level. The dial is accessible from either side and lets you adjust the brightness manually.

A top-loading CR2032 battery powers the LED. You can replace it without removing the optic from its mount. Trijicon specifies 2.5 years of continuous use at daylight setting 3 and 70 degrees Fahrenheit. Higher brightness settings and extreme temperatures affect battery life.

Forged Housing and Sealed Optics

The black housing is forged from 7075-T6 aluminum. The sealed, nitrogen-filled housing protects the internal optics. Trijicon rates the sight as waterproof to a depth of 100 feet. Recessed adjustment controls keep the exterior compact without separate turret caps.

Included Mount

The included AC32071 Q-LOC mount provides lower 1/3 co-witness height and quick-release hardware. It is taller than the AC32070 full co-witness mount. The optic retains the original MRO mounting footprint.

Patrol Lens Protection

The Patrol package adds covers for both the objective and ocular lenses, along with a killFLASH anti-reflection device. The covers protect the glass during storage and transport, while the anti-reflection device reduces reflections from the front lens. The Patrol retains the standard SD model’s single-dot reticle and 1x magnification.

Details

• Manufacturer Part Number: MRO-C-2200354
• Series: MRO SD Patrol
• Magnification: 1x (MRO sight)
• Objective Lens: 25 mm
• Reticle: 2 MOA red dot
• Illumination: Manually adjustable LED
• Brightness Settings: 8 total: 2 night vision, 5 daylight, 1 extra-bright
• Battery: One CR2032, top-loading
• Rated Battery Life: 2.5 years at daylight setting 3 and 70 degrees Fahrenheit
• Eye Relief: Unlimited (MRO sight)
• Housing: Forged 7075-T6 aluminum
• Finish: Matte Black
• Sight Dimensions (Without Mount): 4.35 x 1.7 x 2.0 in.
• Sight Weight (With Battery, Without Mount): 5.0 oz.
• Adjustment Increment: 1/2 MOA per click
• Adjustment Range: 70 MOA total travel
• Sight Waterproof Rating: 100 ft. / 30 m
• Mounting Footprint: Trijicon MRO
• Mount: Lower 1/3 co-witness Q-LOC quick-release mount (AC32071)
• Patrol Accessories: Objective and ocular lens covers; killFLASH anti-reflection device
• UPC: 719307621466
