Description
Trijicon RMR HD Red Dot Reflex Sight, 1 MOA Dot & 55 MOA Circle, Black
The Trijicon RMR HD optic pairs a fine 1 MOA red dot with a selectable 55 MOA segmented circle in a black forged-aluminum housing.
Choose the 1 MOA RMR HD optic when you prefer a smaller center dot that covers less of a small aiming mark. The surrounding 55 MOA segmented circle can be displayed with the dot or switched off for a simpler view. The 1 MOA center dot distinguishes this RMHD1-C-3200001 optic from the 3.25 MOA version.
Compared with the original RMR optic, the RMR HD optic provides a larger viewing area and more substantial control buttons. Its forward-looking light sensor measures light toward the target, while manual brightness control remains available when you prefer to select the intensity yourself.
Everyday Convenience and Brightness Control
The top-loading CR2032 compartment allows a battery change without removing the optic from its mount. Trijicon rates battery life at over three years in dot-only mode at brightness setting 5 and 70 degrees Fahrenheit; using the circle, brighter settings, or extreme temperatures can change that figure. The nine brightness levels include three night-vision levels and one super-bright level.
The RMR HD optic uses the standard RMR mounting footprint, but its larger housing still needs suitable slide and holster clearance. Check compatibility with the RMR HD model specifically. Its open-emitter design combines a non-magnifying view with a forged 7075-T6 aluminum housing and tempered-glass lens.
Mounting and Fit
This optic is supplied without a rail or platform-specific mount. Choose an RMR-compatible mount or adapter plate designed for your exact platform. The smaller RMRcc optic uses a different footprint.
Details
- Manufacturer: Trijicon
- Manufacturer part number: RMHD1-C-3200001
- UPC: 719307619210
- Model: RMR HD
- Magnification: 1x

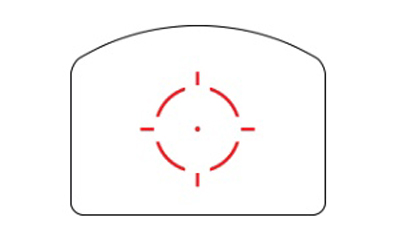

- Reticle: 1 MOA red dot with selectable 55 MOA segmented circle
- Illumination: Adjustable LED with automatic mode
- Brightness settings: Automatic mode and 9 manual levels, including 3 night-vision levels and 1 super-bright level
- Housing: Forged aluminum
- Color / finish: Black
- Lens: Tempered glass
- Emitter: Open
- Mounting footprint: Trijicon RMR (not RMRcc)
- Mount included: No rail or platform-specific mount included
- Adjustment increment: 1 MOA per click
- Total adjustment travel: 135 MOA
- Optic length: 2.15 in
- Optic weight: 1.69 oz with battery
- Battery: One CR2032
- Battery access: Top-loading
- Battery life: Over 3 years, dot-only setting 5 at 70 F (21 C)
