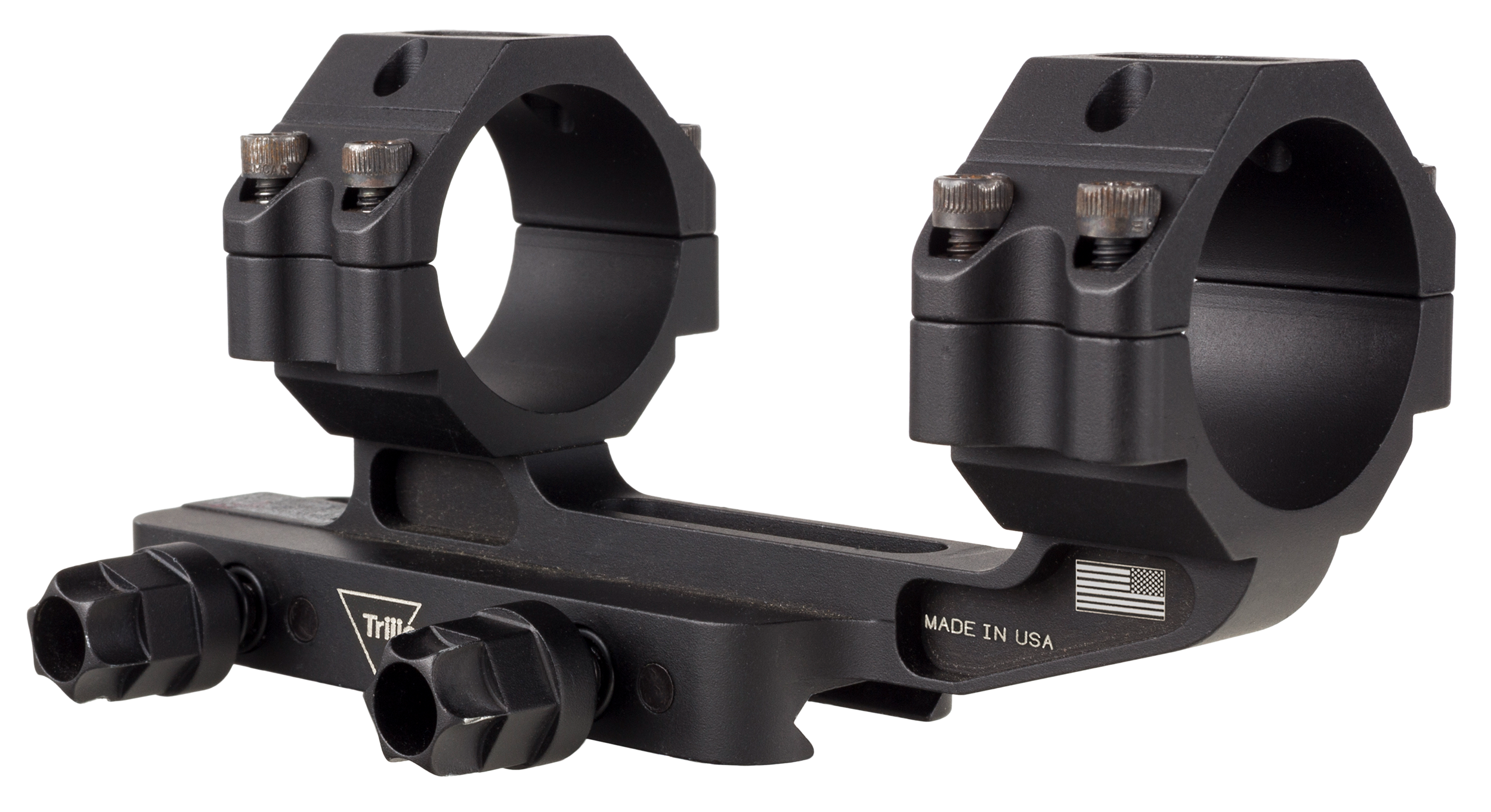

Trijicon 34mm Q-LOC Cantilever Scope Mount, 1.535-Inch Height, 20 MOA

Name: Trijicon 34mm Q-LOC Cantilever Scope Mount, 1.535-Inch Height, 20 MOA
SKU: 719307618763
Price: 240.55 USD
Availability: InStock

$240.55

The AC22046 combines a 34 mm scope interface, a 1.535-inch optical-axis height, and 20 MOA of built-in cant. This Q-LOC cantilever mount uses a matte black aluminum body and spring-loaded Picatinny attachment. Trijicon lists objective lenses up to 56 mm, subject to actual clearance.

In stock

A real team behind your order.

Questions before you buy or help after you order? We are here to help.

Contact Deerford Defense

SKU: 719307618763

Description

Trijicon 34mm Q-LOC Cantilever Scope Mount, 1.535-Inch Height, 20 MOA

The AC22046 adds 20 MOA of cant to a 34 mm Q-LOC cantilever mount with a 1.535-inch optical-axis height. It retains a forward-offset ring layout while providing a canted base, making it a distinct choice from the AC22038 at the same nominal height. The cant specification describes the base angle, not additional vertical height.

The body is 6061-T6 aluminum with matte black anodizing, and the spring-loaded Q-LOC interface fits compatible Picatinny rails. Trijicon lists this model for objective lenses up to 56 mm. Confirm the scope’s tube layout, housing clearance, and compatibility with a canted base before choosing the 20 MOA version.

Specifications

Manufacturer part number: AC22046
Scope tube diameter: 34 mm
Mount style: Q-LOC cantilever
Optical-axis height above the rail: 1.535 inches
Built-in cant: 20 MOA
Rail compatibility: MIL-STD-1913 / NATO Picatinny
Material: 6061-T6 aluminum
Finish: matte black anodized
Manufacturer-listed objective lens size: up to 56 mm; actual clearance depends on the scope and firearm
Includes: one mount, two ring caps, eight screws, and one hex key
