Description

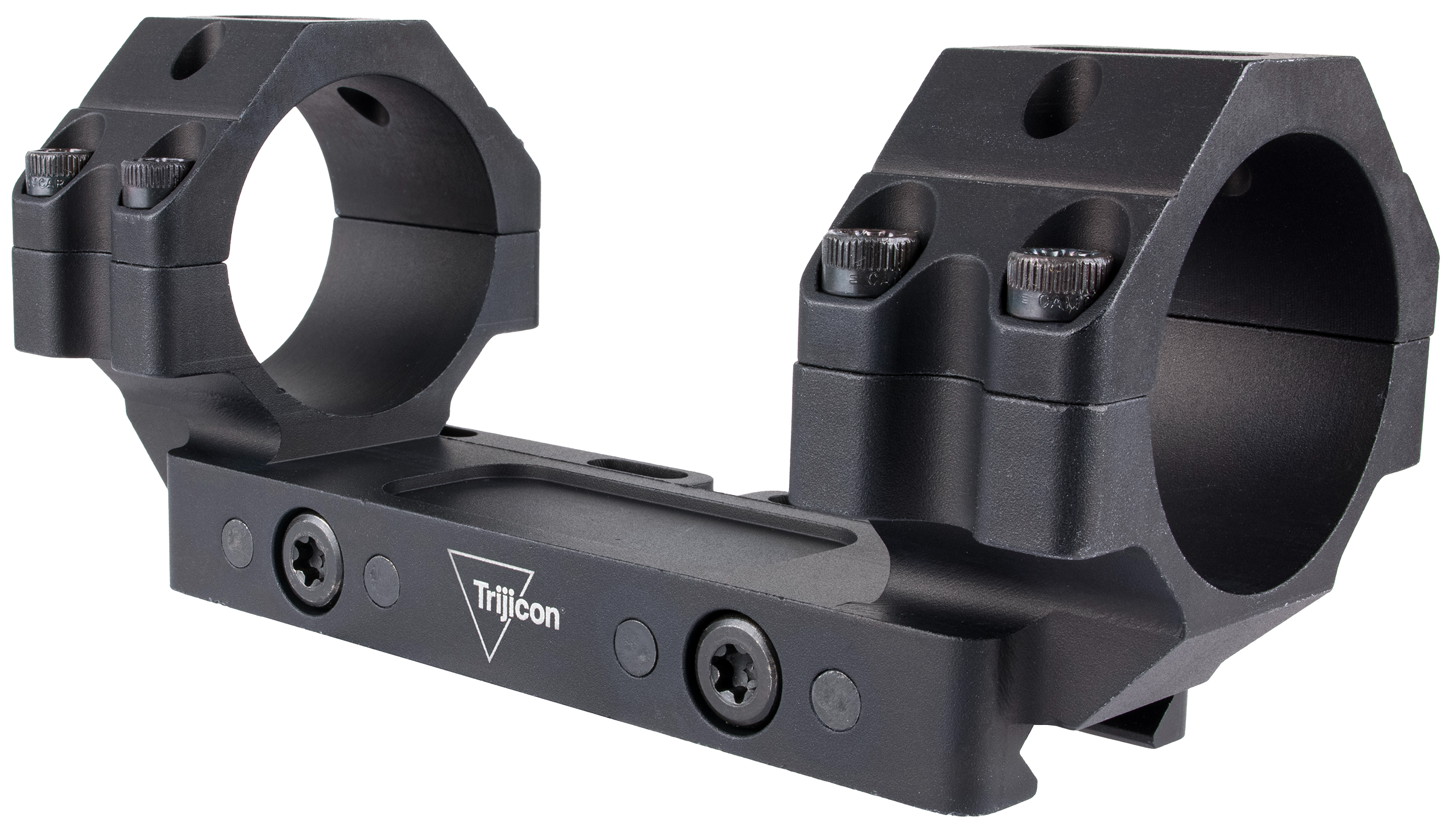

Trijicon 30mm Static Bolt-Action Scope Mount, 1.125-Inch Height
The AC22059 provides a 1.125-inch optical-axis height for 30 mm scopes in a static bolt-action layout. It is the taller alternative to the 1.06-inch AC22058, retaining a compact base without a cantilever extension. Trijicon lists objective lenses up to 44 mm for this specific mount, rather than the different limit given for the Q-LOC AC22044.
Its 6061-T6 aluminum body has a matte black anodized finish and flush mounting bolts for a compact side profile. The Slimline static attachment fits compatible Picatinny rails. Match the scope tube, objective housing clearance, and required scope position before choosing between the two static bolt-action heights.
Specifications
- Manufacturer part number: AC22059
- Scope tube diameter: 30 mm
- Mount style: static bolt-action / Slimline
- Optical-axis height above the rail: 1.125 inches
- Rail compatibility: MIL-STD-1913 / NATO Picatinny
- Material: 6061-T6 aluminum
- Finish: matte black anodized
- Manufacturer-listed objective lens size: up to 44 mm; actual clearance depends on the scope and firearm
- Includes: one mount, two ring caps, eight screws, and one hex key
