Description

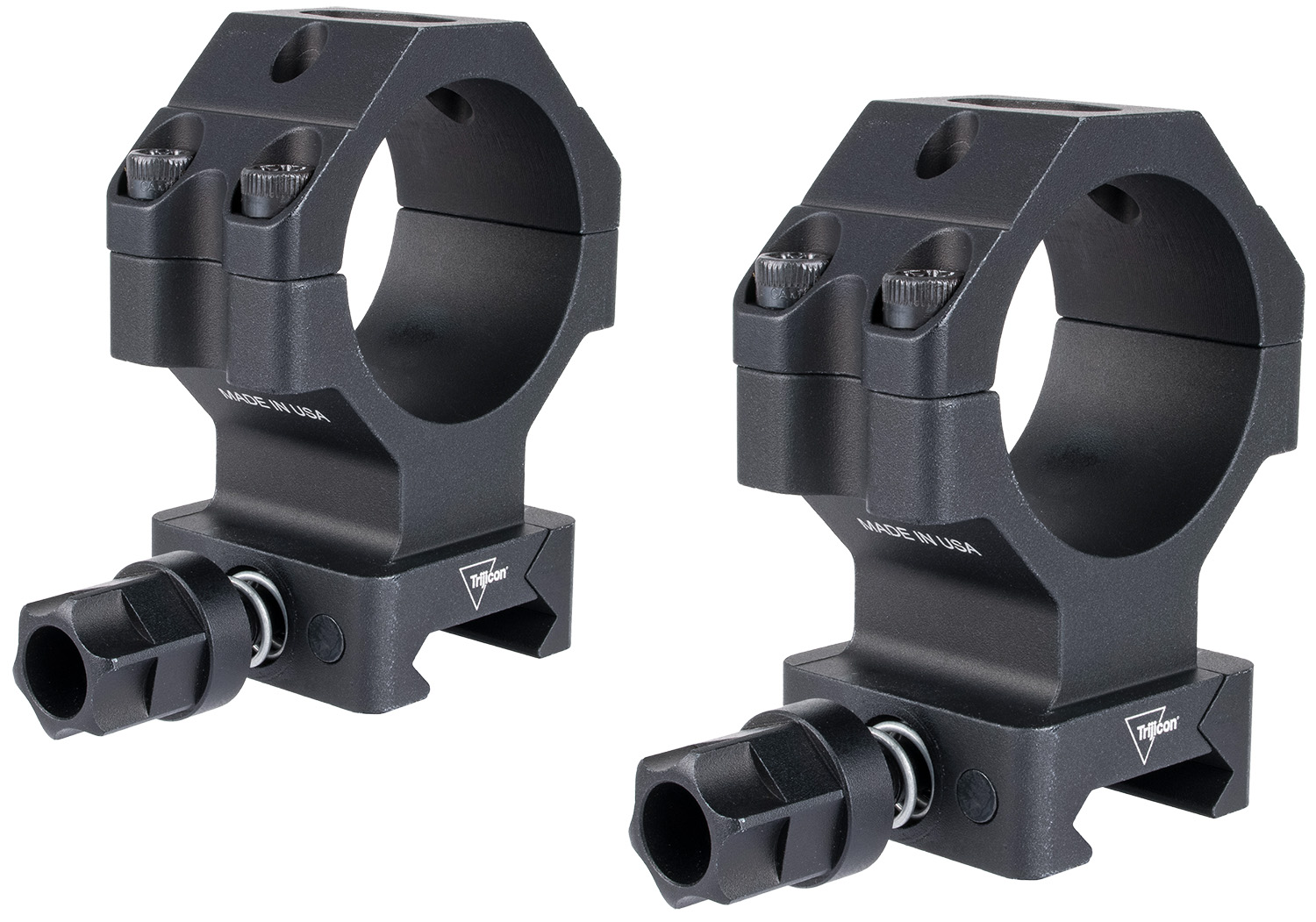

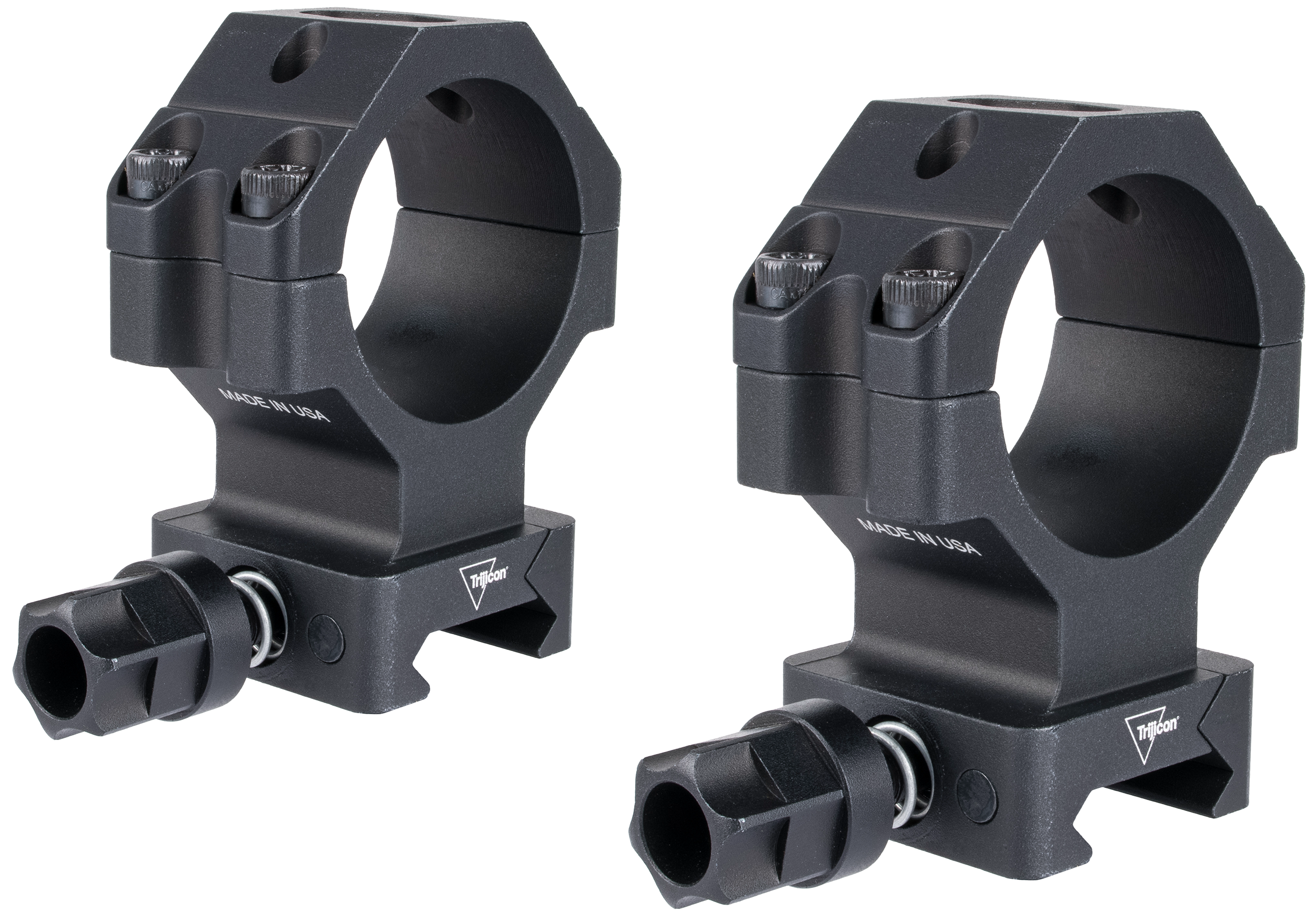

Trijicon 30mm Q-LOC Scope Rings, Extra High
The AC22067 is the extra-high 30 mm Q-LOC ring set, with a 1.4-inch optical-axis height above the rail. Trijicon also uses the Extra Tall designation for this model and lists objective lenses up to 56 mm. It offers the greatest height among the low, medium, high, and extra-high 30 mm Q-LOC ring sets in this collection.
The two independent 6061-T6 aluminum rings have a matte black anodized finish and spring-loaded Q-LOC rail attachment. They fit compatible Picatinny rails and allow spacing to suit the scope’s available tube length. The extra height does not remove the need to check the outside diameter of the objective housing and the required scope position.
Specifications
- Manufacturer part number: AC22067
- Scope tube diameter: 30 mm
- Height class: extra high
- Optical-axis height above the rail: 1.4 inches
- Attachment: Trijicon Q-LOC
- Rail compatibility: MIL-STD-1913 / NATO Picatinny
- Material: 6061-T6 aluminum
- Finish: matte black anodized
- Manufacturer-listed objective lens size: up to 56 mm; actual clearance depends on the scope and firearm
- Includes: two ring mounts, two ring caps, eight screws, and one hex key
