Description

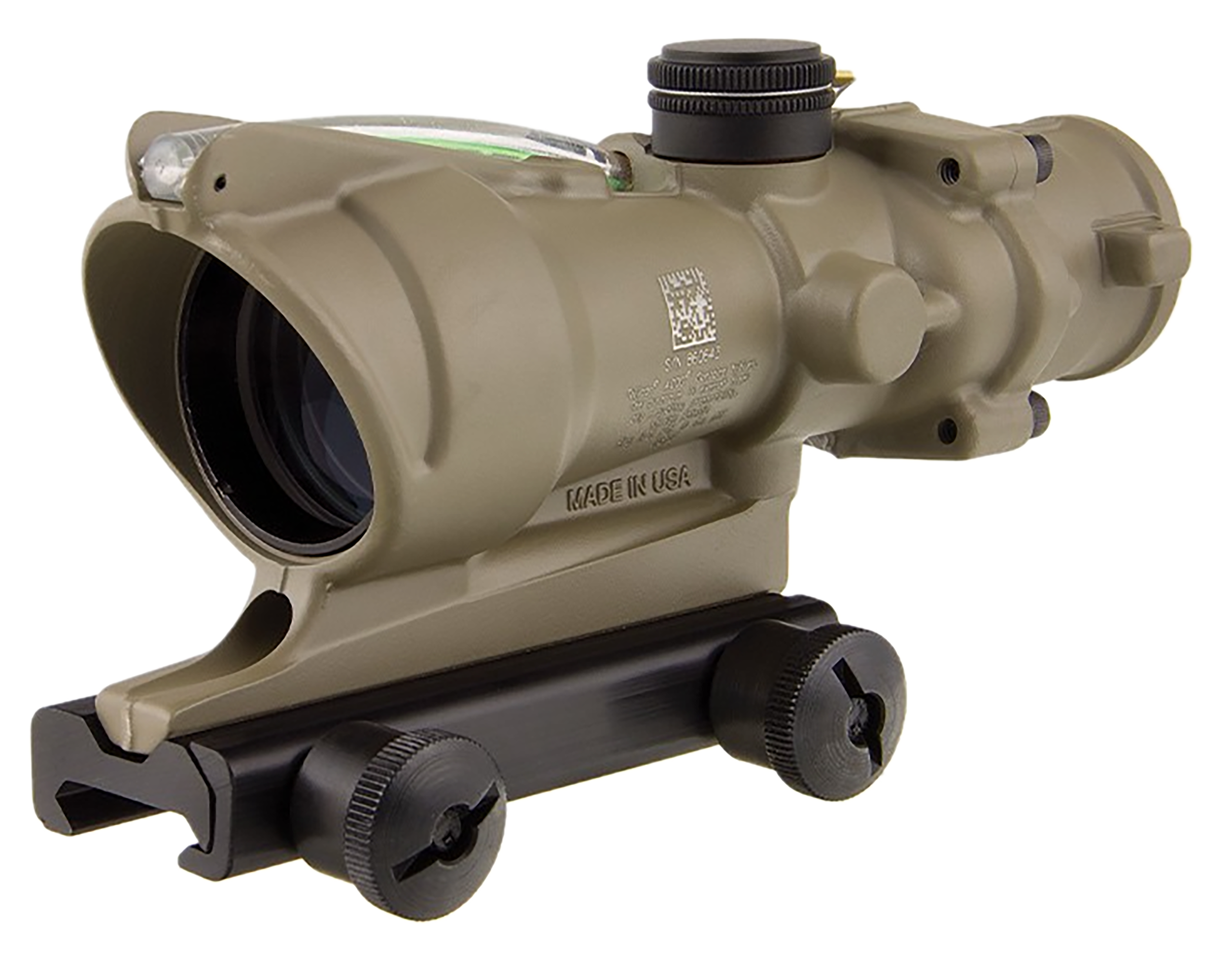

Trijicon ACOG 4×32 Riflescope, Green .223 Horseshoe/Dot Reticle, TA51 Mount, Flat Dark Earth
The Trijicon ACOG TA31-D-100367 4×32 riflescope brings a green horseshoe-and-dot reticle to a Flat Dark Earth housing. It includes a TA51 mount and uses fiber optics and tritium for battery-free illumination.
Green Horseshoe-and-Dot Reticle
The green horseshoe surrounds a distinct center dot, giving this model a different view from the FDE chevron and crosshair versions. Choose it when you prefer that circular reticle reference together with an earth-tone Cerakote finish.
The horseshoe surrounds a separate central dot, combining a broad curved reference with a smaller center. It provides a noticeably different sight picture from either a crosshair or a chevron while retaining the model-specific ballistic markings.
Battery-Free Fiber Optics and Tritium
Fiber optics collect available light to illuminate the reticle during the day, while tritium provides illumination in low light. You do not need to switch the scope on or keep a spare battery for its reticle. Brightness responds to available light rather than a manual dial.
The reticle remains etched into the optical system, so its pattern is not created solely by illumination. This gives you a visible reference even when the illuminated portion is less prominent against the background. The scope itself has no battery compartment.
Compact Fixed-Power Construction
The scope combines fixed 4x magnification with a 32 mm objective lens. Its forged 7075-T6 aluminum housing is sealed and nitrogen-filled, protecting the multi-coated optics. It has a 7-degree field of view and an exit pupil of approximately 8 mm.
Included Mount and Fit
The included TA51-style thumbscrew mount attaches to a compatible flattop rail. The ACOG uses a dedicated mounting base rather than conventional riflescope rings. It has a relatively short eye relief of 1.5 inches, so check your available rail space and normal viewing position before choosing a mount.
Details
- Model / Manufacturer Part Number: TA31-D-100367
- Magnification: Fixed 4x
- Objective Lens: 32 mm
- Reticle: Green horseshoe/dot
- Reticle Calibration / Configuration: .223 / 5.56
- Scope Illumination: Fiber optics and tritium
- Scope Battery: Not required
- Scope Brightness: Ambient-light response through fiber optics; tritium in low light
- Eye Relief: 1.5 in.
- Angular Field of View: 7 degrees
- Exit Pupil: Approximately 8 mm
- Scope Adjustment: 1/2 MOA per click
- Housing: Forged 7075-T6 aluminum
- Finish: Flat Dark Earth
- Mount / Hardware: TA51-style thumbscrew flattop mount included
- UPC: 719307307780
