Trijicon HD XR Night Sights

Trijicon HD XR Night Sights

Trijicon HD XR night sights combine a slim front post, a colored front outline, and green tritium illumination. The defining feature is the 0.122-inch front post, which is narrower than the original HD design. A serrated U-notch rear with black lamp outlines provides a subdued counterpart to the orange or yellow front. Sets are specific to the pistol platform, and the collection includes both standard-height and designated suppressor/optic-height configurations.

Choose the Pistol Application First

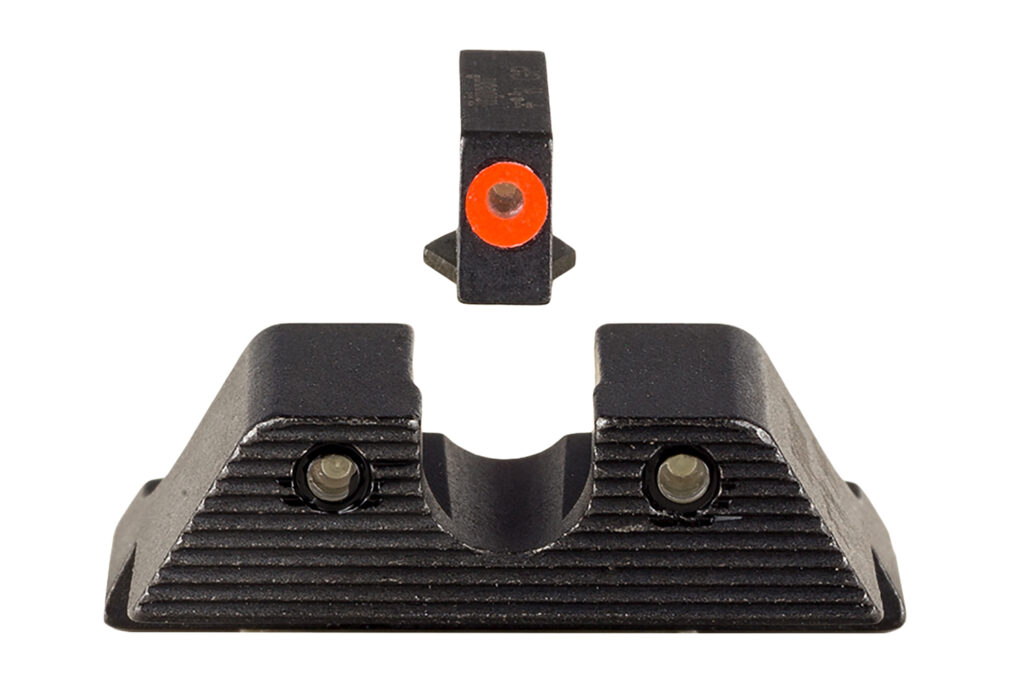

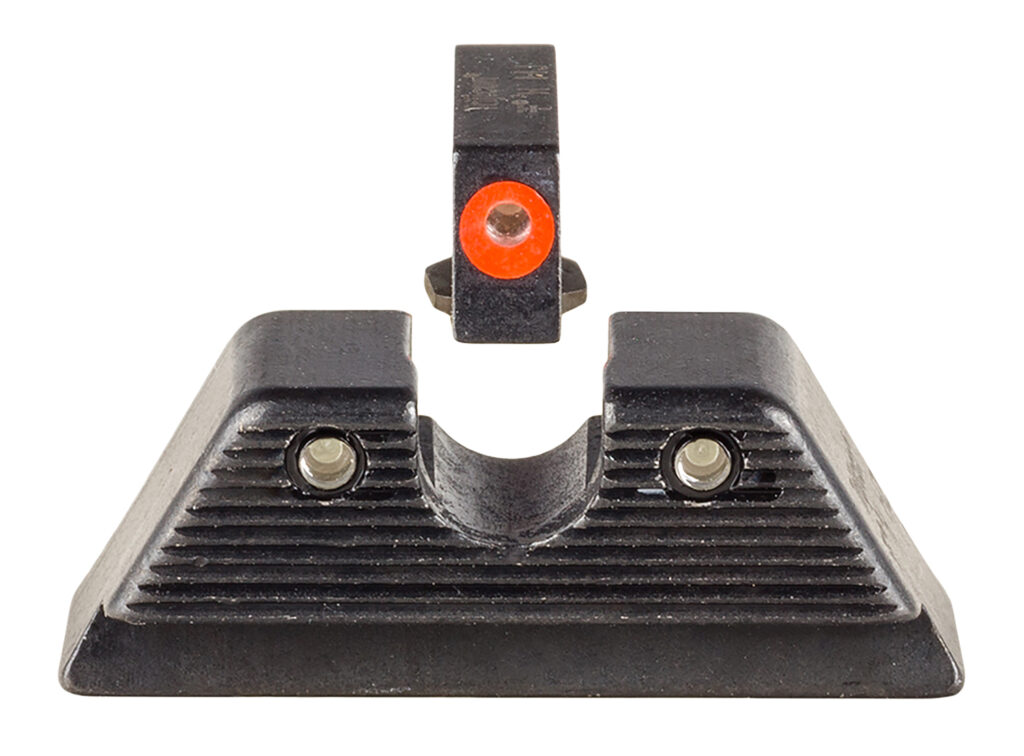

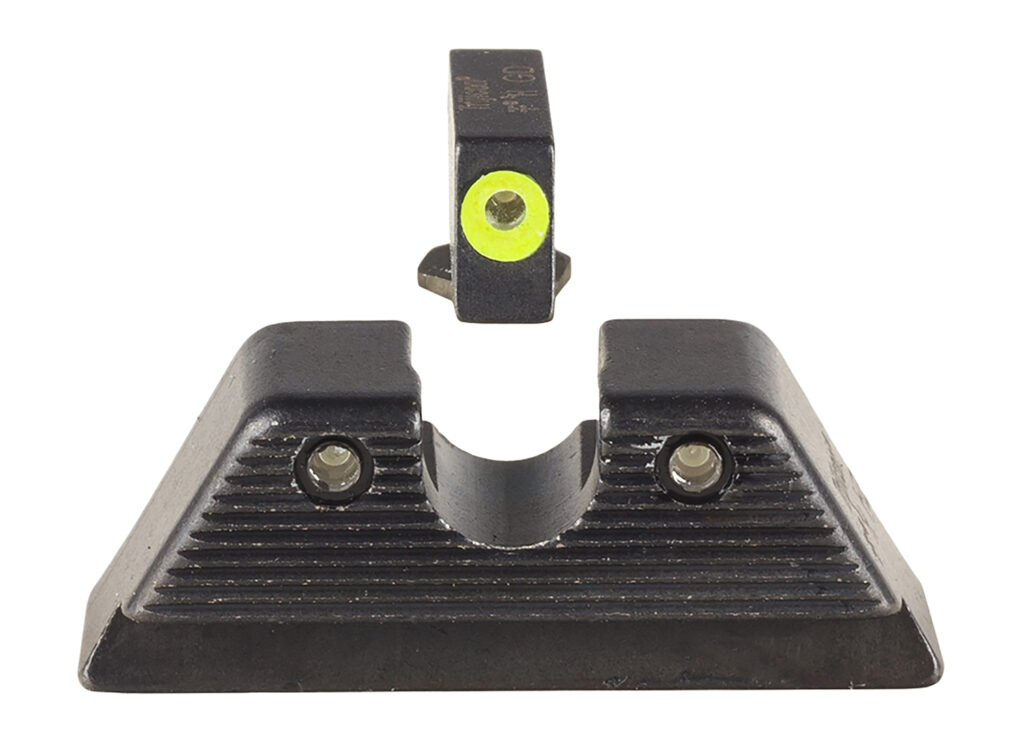

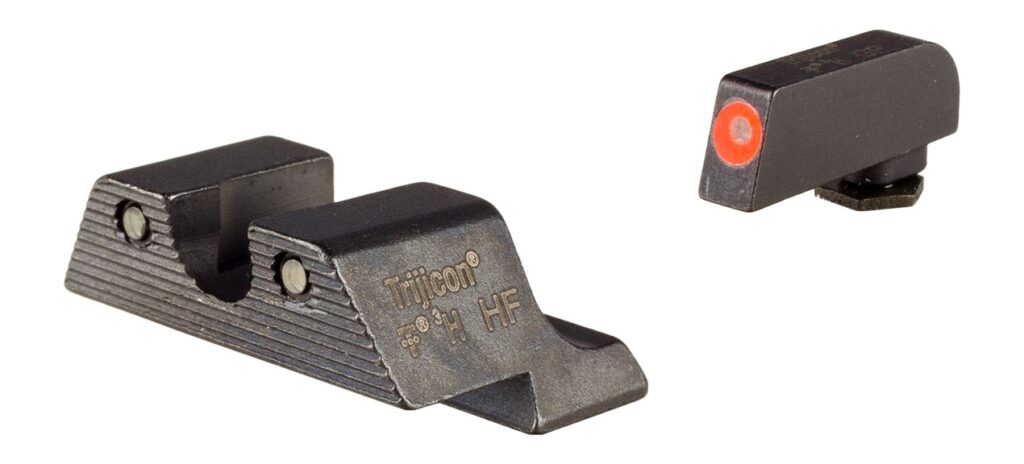

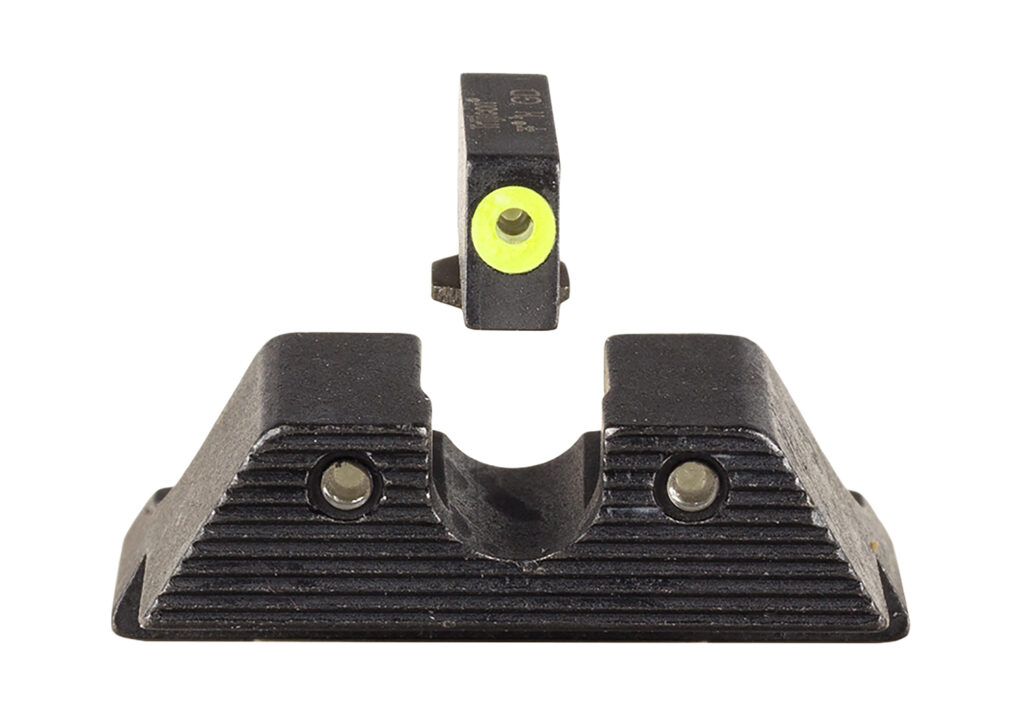

Start with the exact pistol and slide configuration, then select the front-outline color. Standard-frame, large-frame, and slim-frame Glock sets are separate applications. A non-MOS sight set should not be assumed to fit a MOS slide, even when the pistol model number is the same. The GL601 non-MOS and GL614 MOS-fit standard-frame sets illustrate that distinction; the GL343 suppressor/optic-height set is a separate option for the Glock 43X MOS and 48 MOS.

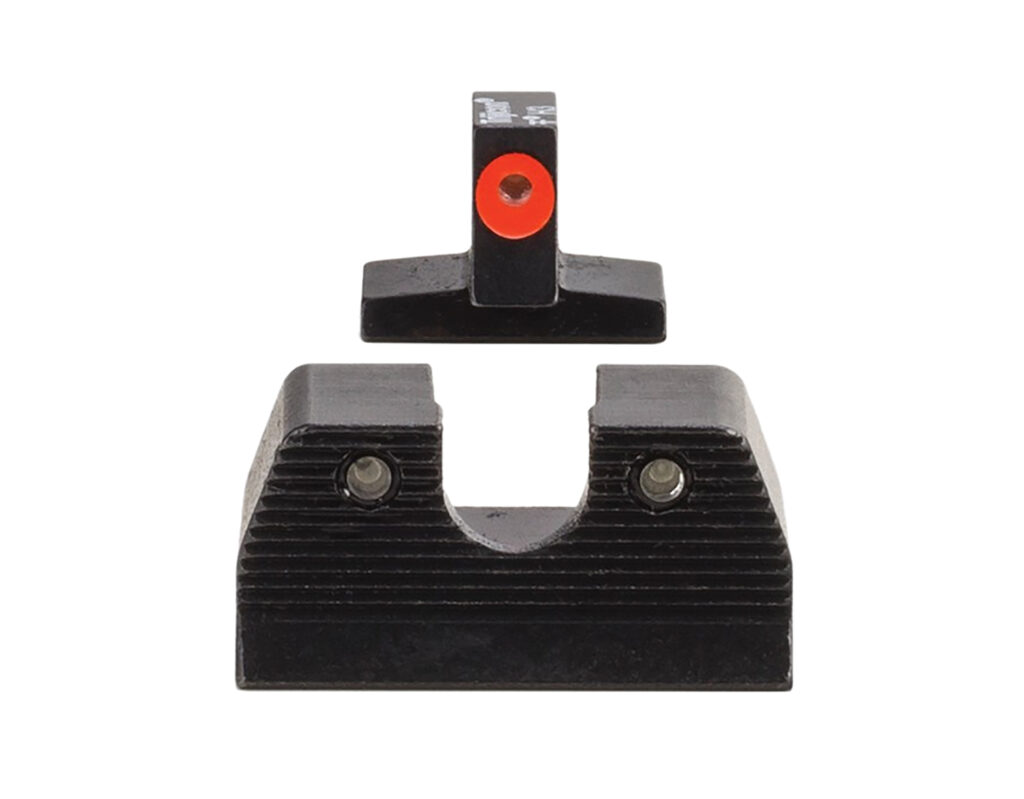

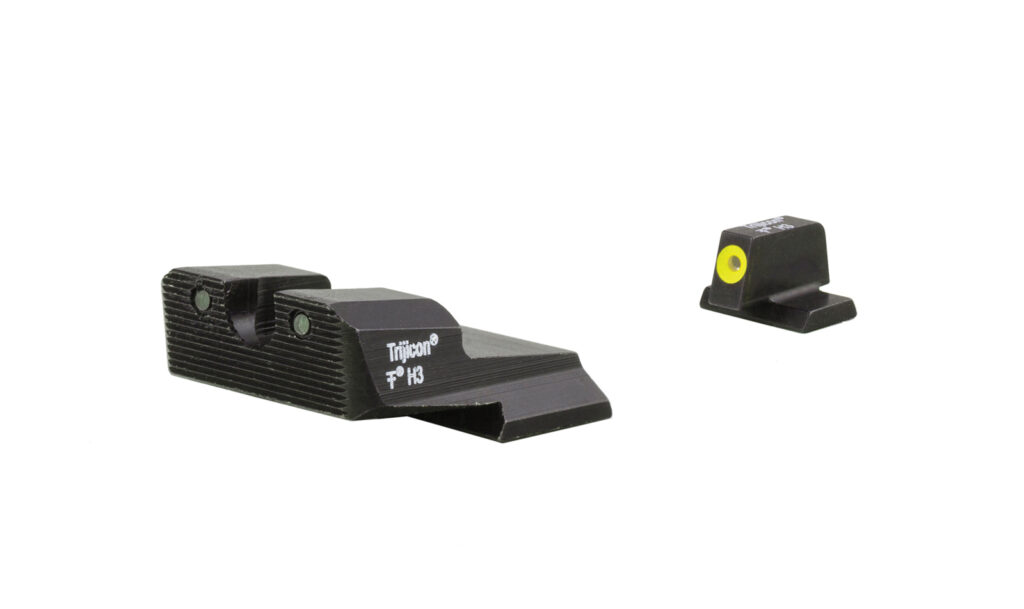

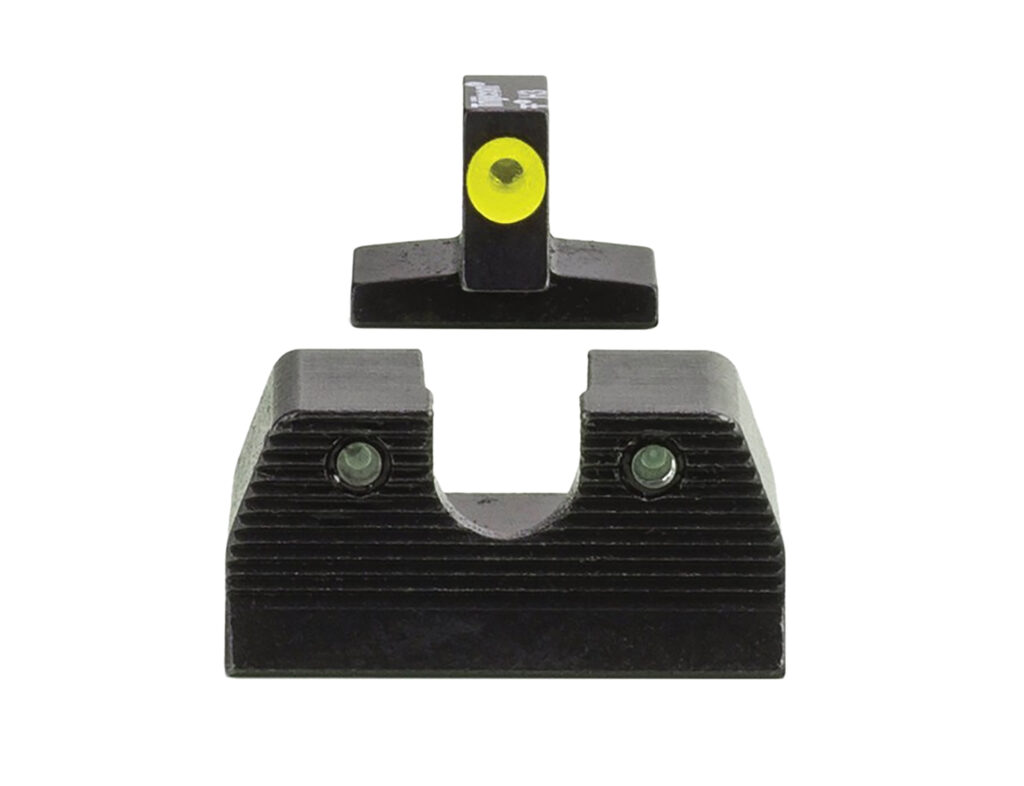

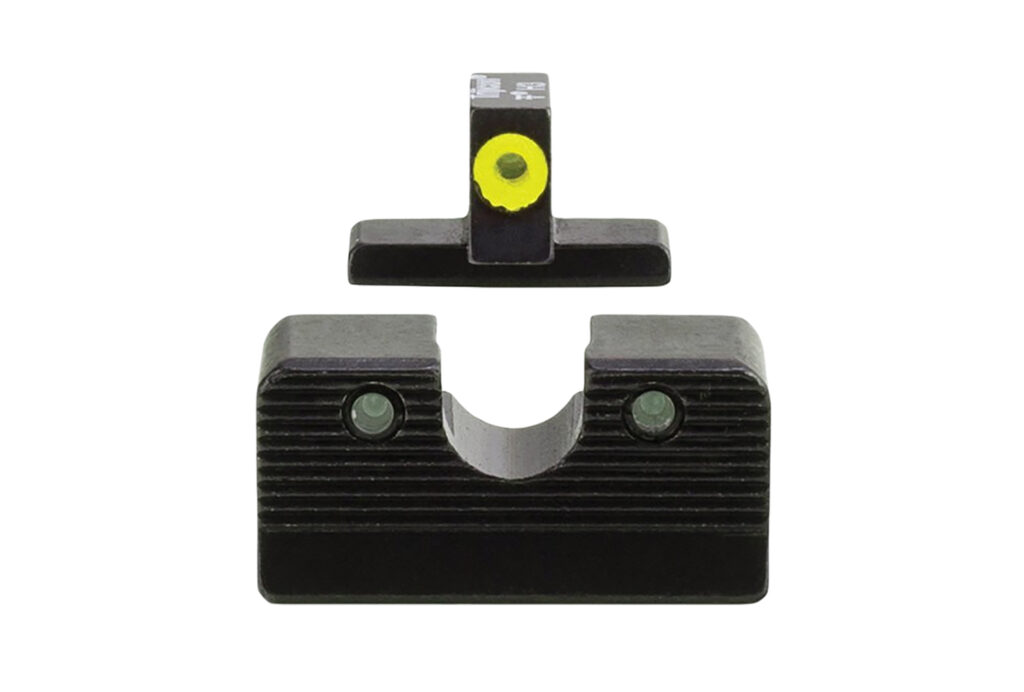

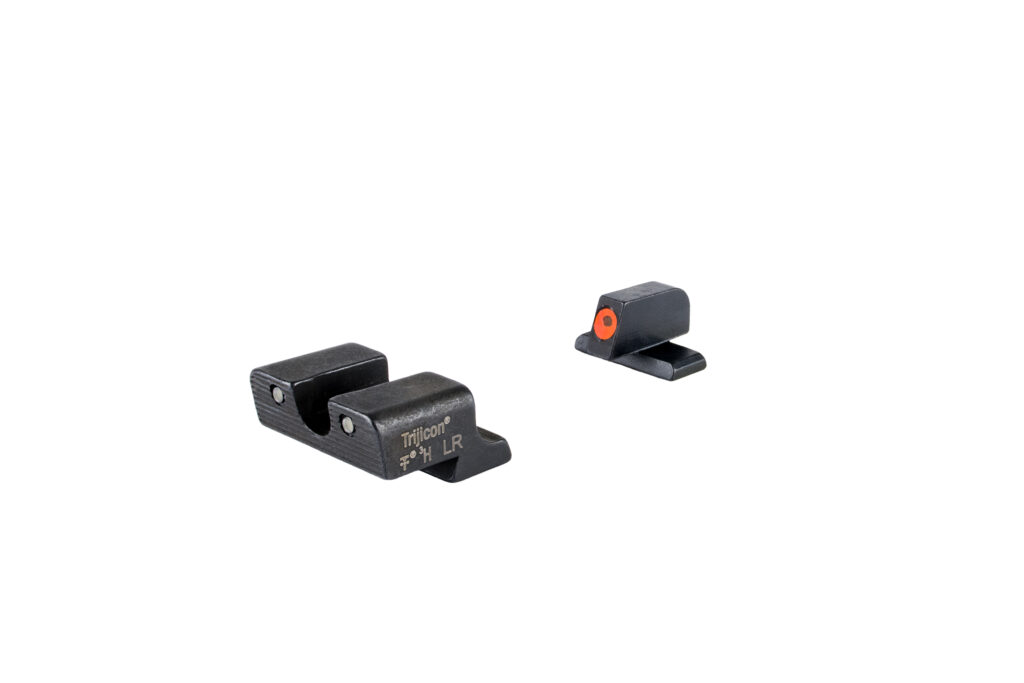

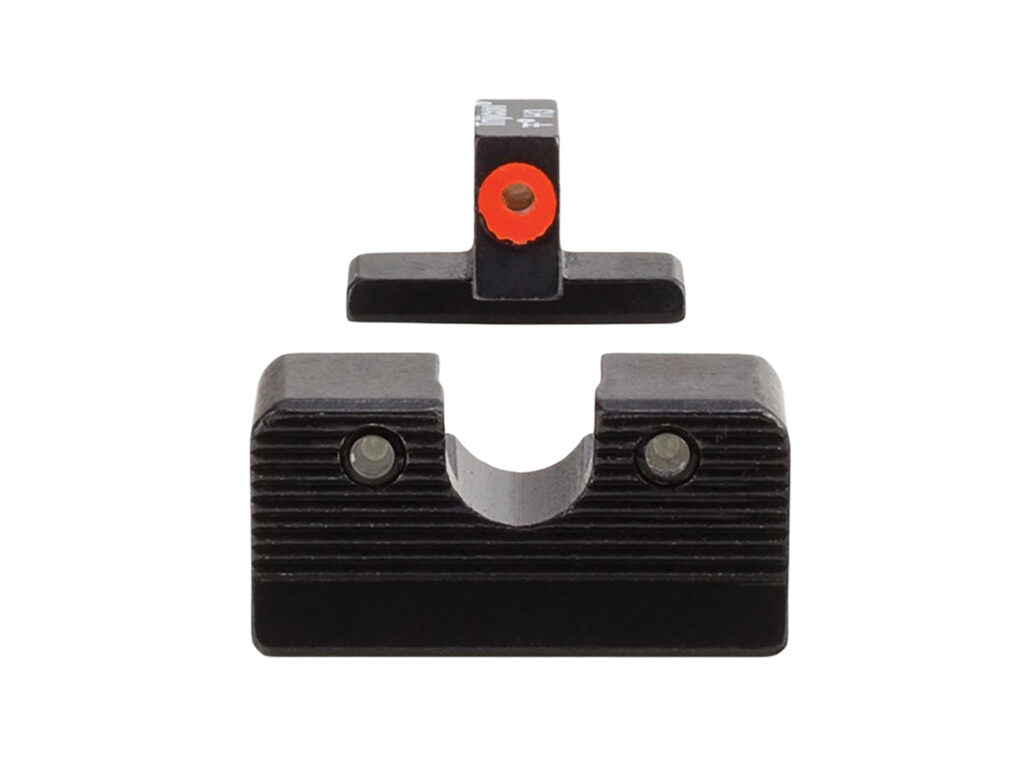

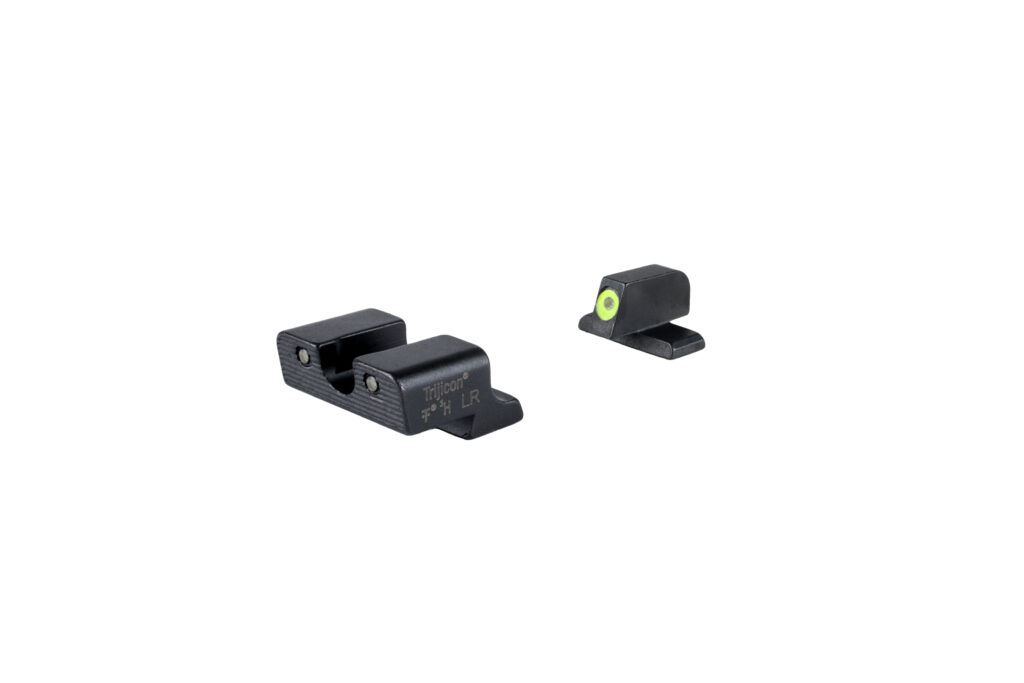

Smith & Wesson owners should distinguish the conventional M&P/SD VE application from M&P Shield, C.O.R.E./M2.0 Optics Ready, and Bodyguard 2.0 sets. Each group has its own model numbers. FN 509 and FNX-45/FNP-45 sets are also separate, while Springfield XD/XD-M and SIG Sauer applications require their own compatibility checks. A brand name or caliber alone is not enough to establish fit.

Orange or Yellow Front Outline

The orange and yellow choices describe the front sight’s photoluminescent outline, not the color of its tritium lamp. Both outline options use green tritium at the front and rear. The colored ring adds a distinct daytime reference, while the tritium dots provide their own illumination without batteries. Choose the outline that gives you comfortable visual contrast; changing outline color within the same application does not turn a standard-height set into a taller one.

MOS Fit Is Not a Height Guarantee

A set designed for a MOS or other optics-ready pistol can still be standard height. The taller HD XR suppressor/optic-height models are identified separately and are intended for applications that require additional clearance. Visibility through an optic window, or above a suppressor, depends on the complete setup rather than the family name alone. Confirm the pistol, slide, optic, mounting plate, and required sight dimensions before ordering.

For other configurations, compare the Trijicon suppressor-height sights collection. The original Trijicon HD night sights offer the wider-front design, and the Trijicon night sights collection brings the related families together.

Construction and Set Contents

HD XR tritium lamps use protective sapphire caps, aluminum sleeves, and silicone cushioning. The rear face is serrated to help reduce reflections. These are iron sight sets, not electronic red-dot optics or fiber-optic sights. The sets described here include one front and one rear sight; separate front-sight replacement parts should not be confused with a complete set. Trijicon recommends professional installation.

Trijicon HD XR FAQs

What is the difference between Trijicon HD and HD XR?

HD XR uses a thinner, 0.122-inch front post. Both families use a prominent front outline, tritium illumination, and a U-notch rear. The front-post profile is the key distinction; compatibility still depends on the exact part number.

Do the orange sights glow orange at night?

No. Orange refers to the front outline. The HD XR sets in this collection use green tritium lamps at the front and rear, including the yellow-outline versions.

Do HD XR night sights need batteries?

No. Their tritium lamps are self-luminous. The photoluminescent front outline is a separate visual feature and should not be confused with an LED or fiber-optic illumination system.

Will a Glock MOS sight set automatically work with my red dot?

No. MOS fit identifies a compatible sight application, not a promise of red-dot clearance. Trijicon specifically identifies the standard-height GL614 sets as unsuitable for use with a mounted red dot. Suppressor/optic-height sets are separate configurations, and their exact optic and mounting-plate compatibility still matters.

Can I use the same HD XR set on every M&P pistol?

No. M&P/SD VE, Shield, C.O.R.E./M2.0 Optics Ready, and Bodyguard 2.0 applications are listed separately. Match the exact pistol version and manufacturer part number rather than relying on the M&P name alone.

Are these complete front-and-rear sight sets?

Yes. The products described in this collection are sets containing one front sight and one rear sight. Trijicon also offers separate sight components, so check the product type and full model number when comparing listings.

Does suppressor/optic height guarantee a particular co-witness?

No. It identifies the sight’s height category, not a universal position within every optic window. For example, the GL343 sets are not compatible with an RMRcc using the AC32126 adapter plate. Confirm the required clearance and exact compatibility for the complete setup before purchase.
