Trijicon ACOG 4×32 Riflescope with RMR Type 2, Green .223 Crosshair Reticle, 3.25 MOA Red Dot, Black

Description

Trijicon ACOG 4×32 Riflescope with RMR Type 2, Green .223 Crosshair Reticle, 3.25 MOA Red Dot, Black

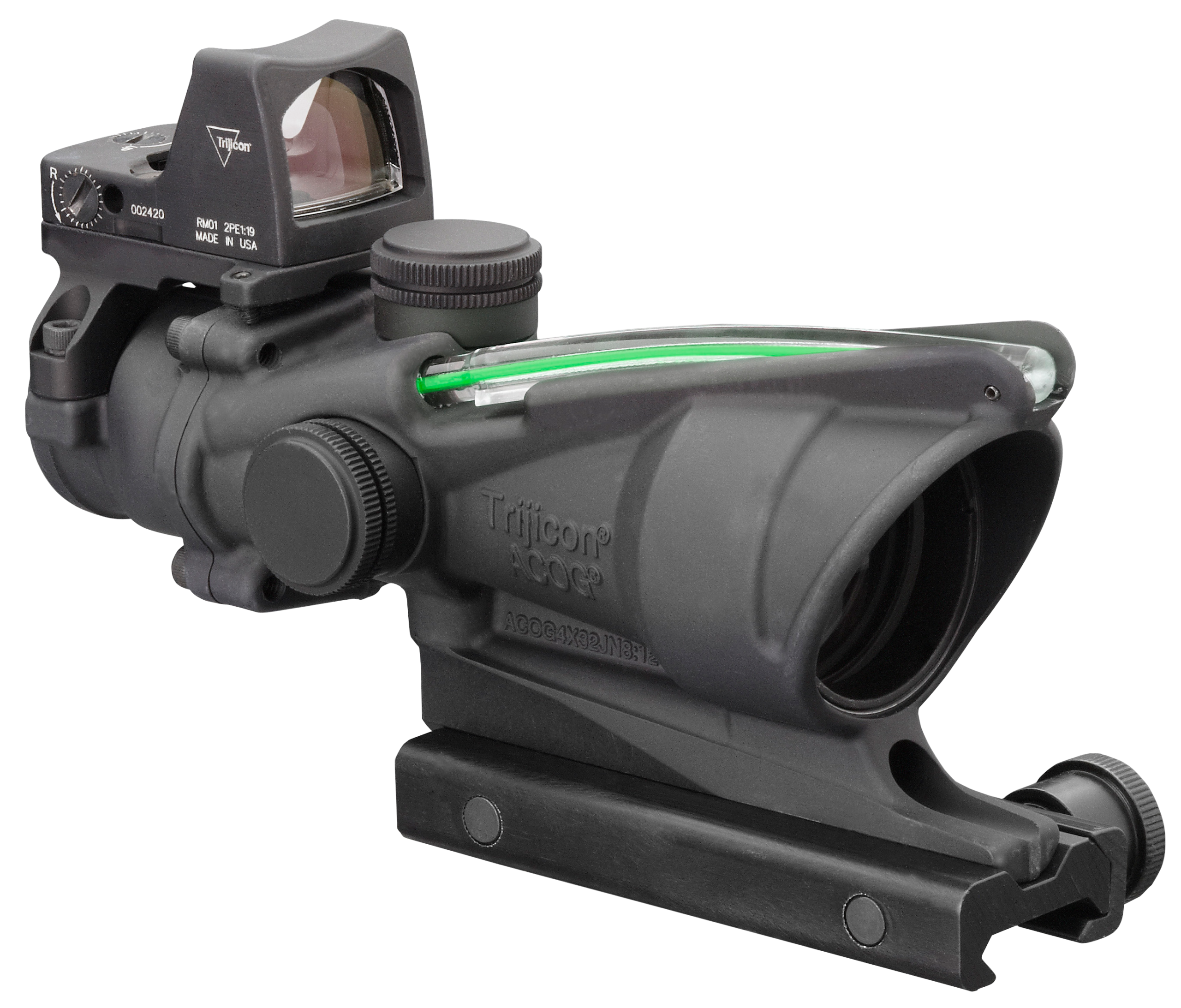

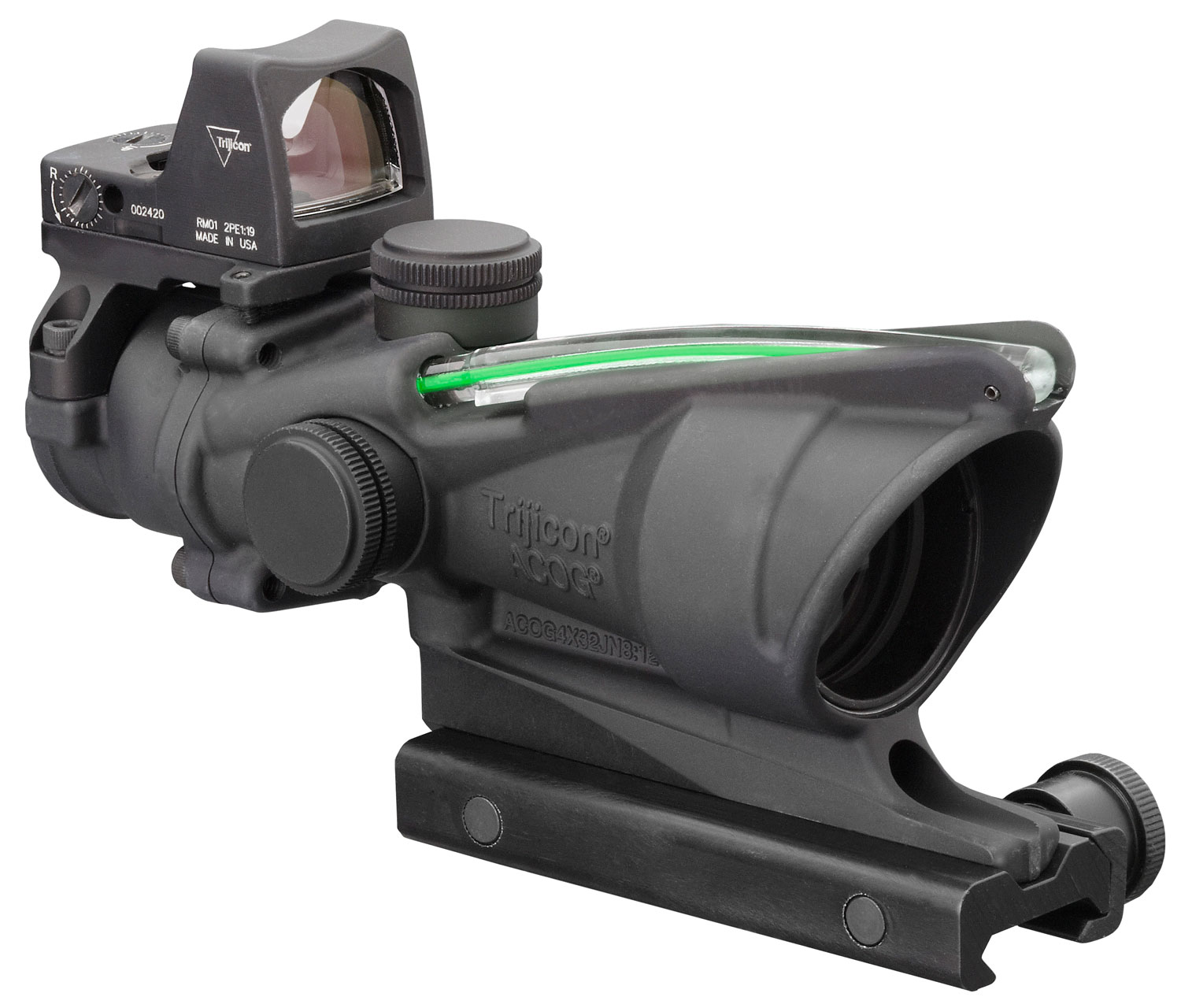

The Trijicon ACOG TA31-C-100552 4×32 with RMR Type 2 pairs a green crosshair reticle calibrated for .223 with a 3.25 MOA red dot. It includes both optics and a thumbscrew mount in a black factory-matched package.

Green Crosshair Reticle

The ACOG has a green crosshair, while the separate RM01 RMR Type 2 has a red dot. The scope provides fixed 4x magnification and battery-free illumination; the non-magnifying RMR uses its own battery and automatic brightness control.

The crosshair uses intersecting lines for a familiar central reference, with ballistic markings incorporated into the pattern. It is a different visual style from the ACOG chevron or horseshoe, making it a good fit when you prefer a conventional scope reticle.

Battery-Free Fiber Optics and Tritium

Fiber optics collect available light to illuminate the reticle during the day, while tritium provides illumination in low light. You do not need to switch the scope on or keep a spare battery for its reticle. Brightness responds to available light rather than a manual dial.

The reticle remains etched into the optical system, so its pattern is not created solely by illumination. This gives you a visible reference even when the illuminated portion is less prominent against the background. The scope itself has no battery compartment.

A Separate RMR Type 2 Red Dot

The included RM01 RMR Type 2 provides a 3.25 MOA red dot in a non-magnifying view. This open-emitter optic adjusts brightness automatically; it is not the manually adjustable RM06. Its CR2032 battery is separate from the ACOG illumination system.

The RMR sits above the ACOG in this factory combination. You receive two separate optics rather than a scope with a switchable magnification setting. The RMR battery is accessed from underneath, so you must remove the optic from its mount to replace the battery.

Compact Fixed-Power Construction

The scope combines fixed 4x magnification with a 32 mm objective lens. Its forged 7075-T6 aluminum housing is sealed and nitrogen-filled, protecting the multi-coated optics. It has a 7-degree field of view and an exit pupil of approximately 8 mm.

Included Mount and Fit

The included TA51-style thumbscrew mount attaches to a compatible flattop rail. The ACOG uses a dedicated mounting base rather than conventional riflescope rings. It has a relatively short eye relief of 1.5 inches, so check your available rail space and normal viewing position before choosing a mount.

Details

• Model / Manufacturer Part Number: TA31-C-100552
• Magnification: Fixed 4x
• Objective Lens: 32 mm
• Reticle: Green crosshair
• Reticle Calibration / Configuration: .223 / 5.56
• Scope Illumination: Fiber optics and tritium
• Scope Battery: Not required
• Scope Brightness: Ambient-light response through fiber optics; tritium in low light
• Eye Relief: 1.5 in.
• Angular Field of View: 7 degrees
• Exit Pupil: Approximately 8 mm
• Scope Adjustment: 1/2 MOA per click
• Housing: Forged 7075-T6 aluminum
• Finish: Black
• Mount / Hardware: TA51-style thumbscrew flattop mount included
• Secondary Optic: RM01 RMR Type 2, automatic-brightness LED
• Secondary Reticle: 3.25 MOA red dot
• Secondary Battery: CR2032
• UPC: 719307311800
