Description

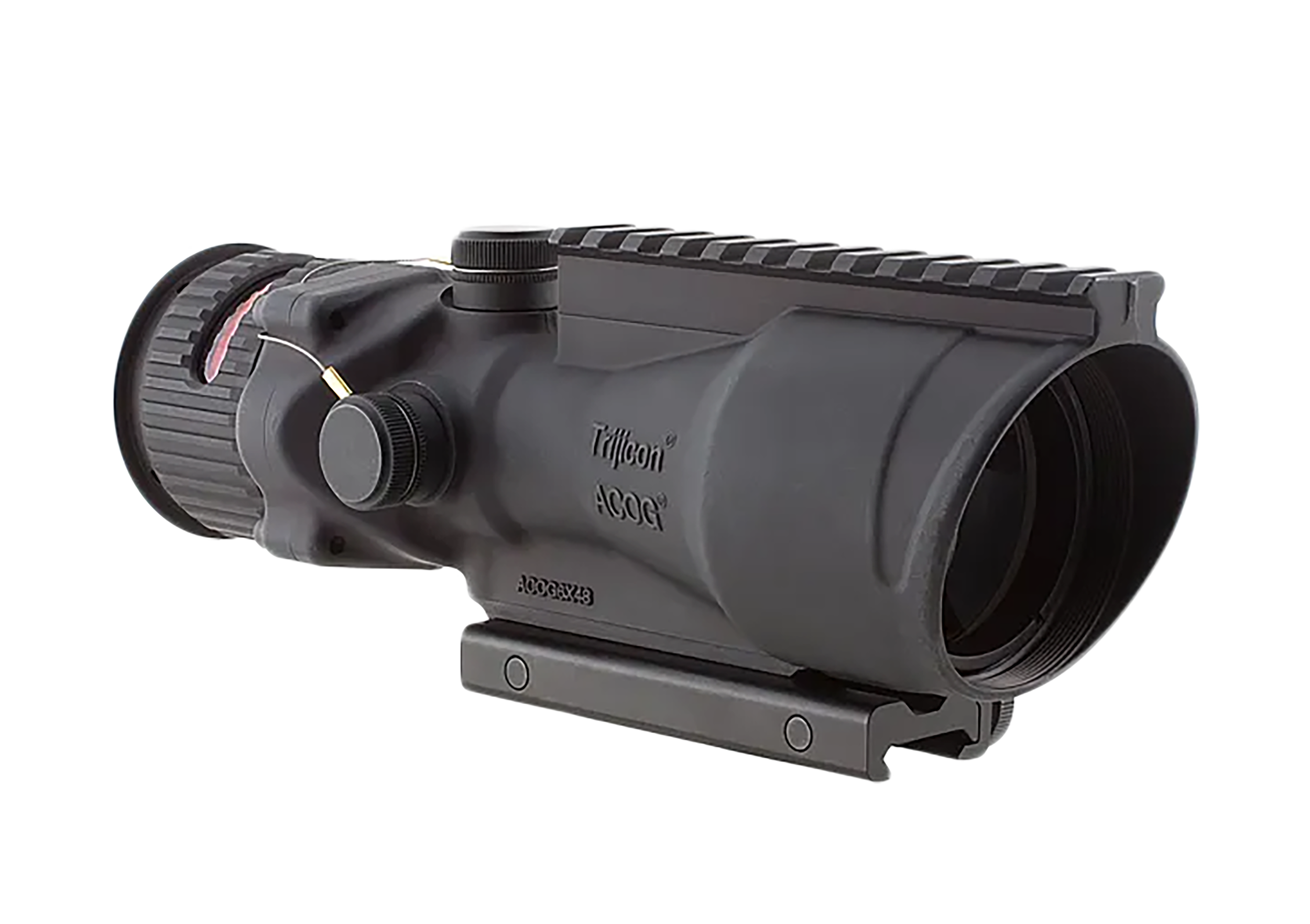

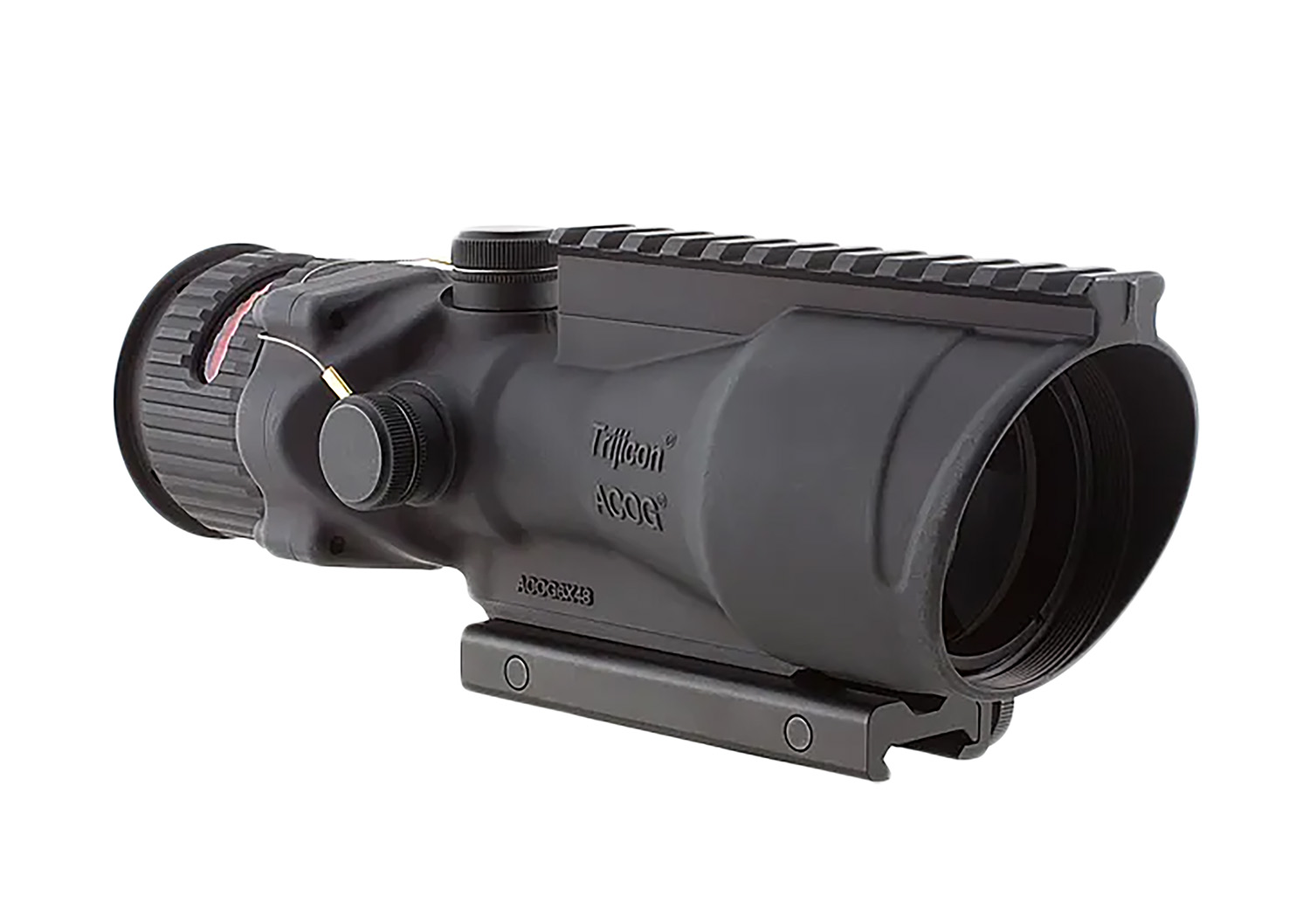

Trijicon ACOG TA648-308H 6×48 Riflescope, Red .308 Horseshoe/Dot Reticle, TA75 Mount, Black

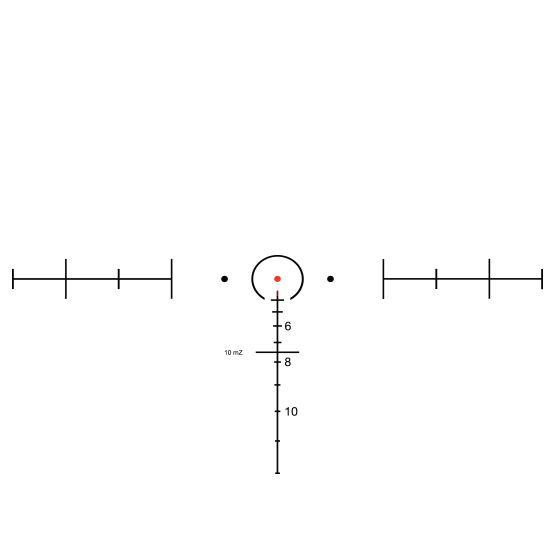

The Trijicon ACOG TA648-308H combines fixed 6×48 optics with a .308/7.62 horseshoe-and-dot reticle. A red illuminated dot sits inside a black horseshoe, with horizontal references and a vertical ballistic scale surrounding the center.
The reticle is designed around 7.62 mm M80 ammunition and differs from the red-chevron TA648-308. This package includes the TA75 mount. The 9-inch scope has a matte-black forged-aluminum housing and provides 2.7 inches of eye relief and a 17-foot field of view at 100 yards.
Fiber optics provide ambient-light-responsive daytime illumination, while tritium lights the center in low light without a battery. Multicoated lenses and nitrogen-filled construction help maintain image clarity and resist internal fogging. The black horseshoe and red dot give this model a different illumination layout from a fully illuminated horseshoe reticle.
Specifications
- Model: TA648-308H
- Manufacturer item number: 100005
- Magnification: 6x (fixed)
- Objective lens: 48 mm
- Reticle: Black horseshoe with a red illuminated center dot
- Reticle calibration: .308 / 7.62
- Illumination: Fiber optics and tritium; no battery required
- Mount: TA75 mount included
- Eye relief: 2.7 in.
- Exit pupil: 8.13 mm
- Field of view: 17 ft. at 100 yards
- Adjustment: 4 clicks per inch at 100 yards
- Length: 9 in.
- Housing: Forged aluminum
- Finish: Matte black
