Description

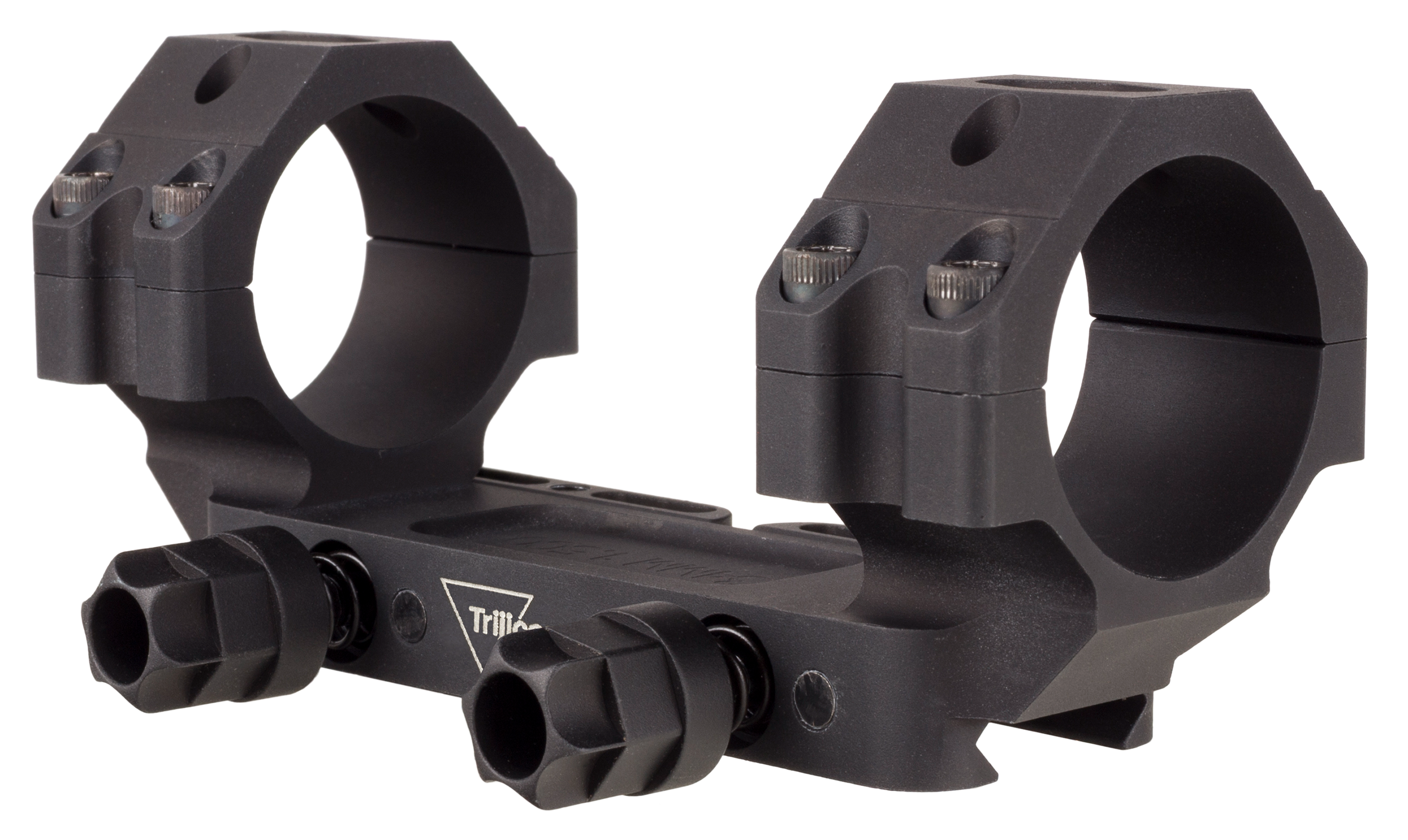

Trijicon 34mm Q-LOC Bolt-Action Scope Mount, 1.125-Inch Height
The AC22042 holds a 34 mm scope at a 1.125-inch optical-axis height above the rail. Its Q-LOC bolt-action layout keeps both rings on a compact base, without the forward extension of a cantilever mount. Trijicon lists objective lenses up to 56 mm for this model, with actual fit dependent on the complete scope and firearm geometry.
The mount has a 6061-T6 aluminum body, matte black anodizing, and spring-loaded Q-LOC attachment for compatible Picatinny rails. There is an important model-specific exception: it does not fit Trijicon Credo or Credo HX 1-8×28 riflescopes. Those scopes require an appropriate 34 mm cantilever mount rather than this bolt-action model.
Specifications
- Manufacturer part number: AC22042
- Scope tube diameter: 34 mm
- Mount style: Q-LOC bolt-action
- Optical-axis height above the rail: 1.125 inches
- Rail compatibility: MIL-STD-1913 / NATO Picatinny
- Material: 6061-T6 aluminum
- Finish: matte black anodized
- Manufacturer-listed objective lens size: up to 56 mm; actual clearance depends on the scope and firearm
- Includes: one mount, two ring caps, eight screws, and one hex key
- Not compatible with Trijicon Credo or Credo HX 1-8×28 riflescopes
