Description

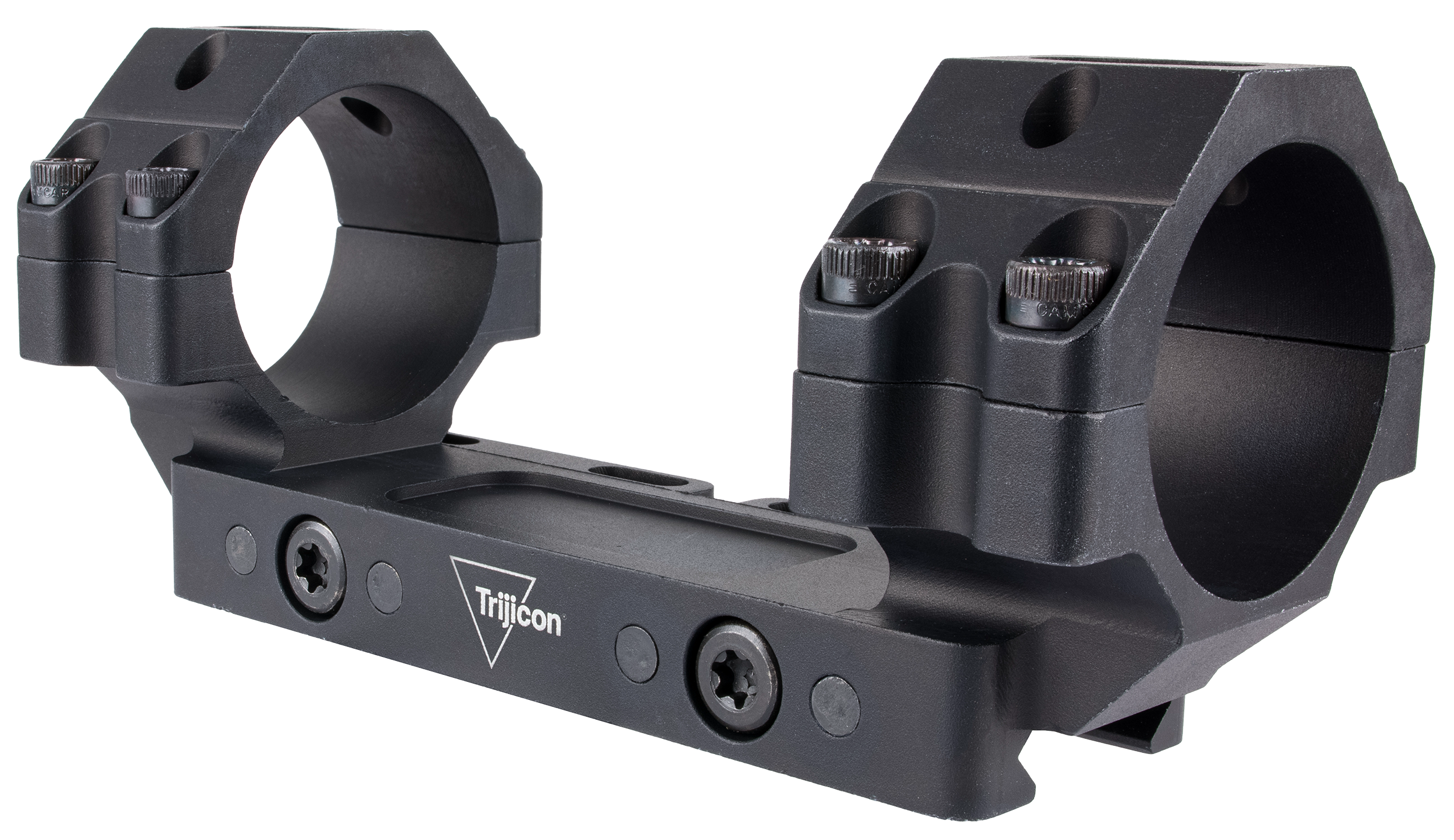

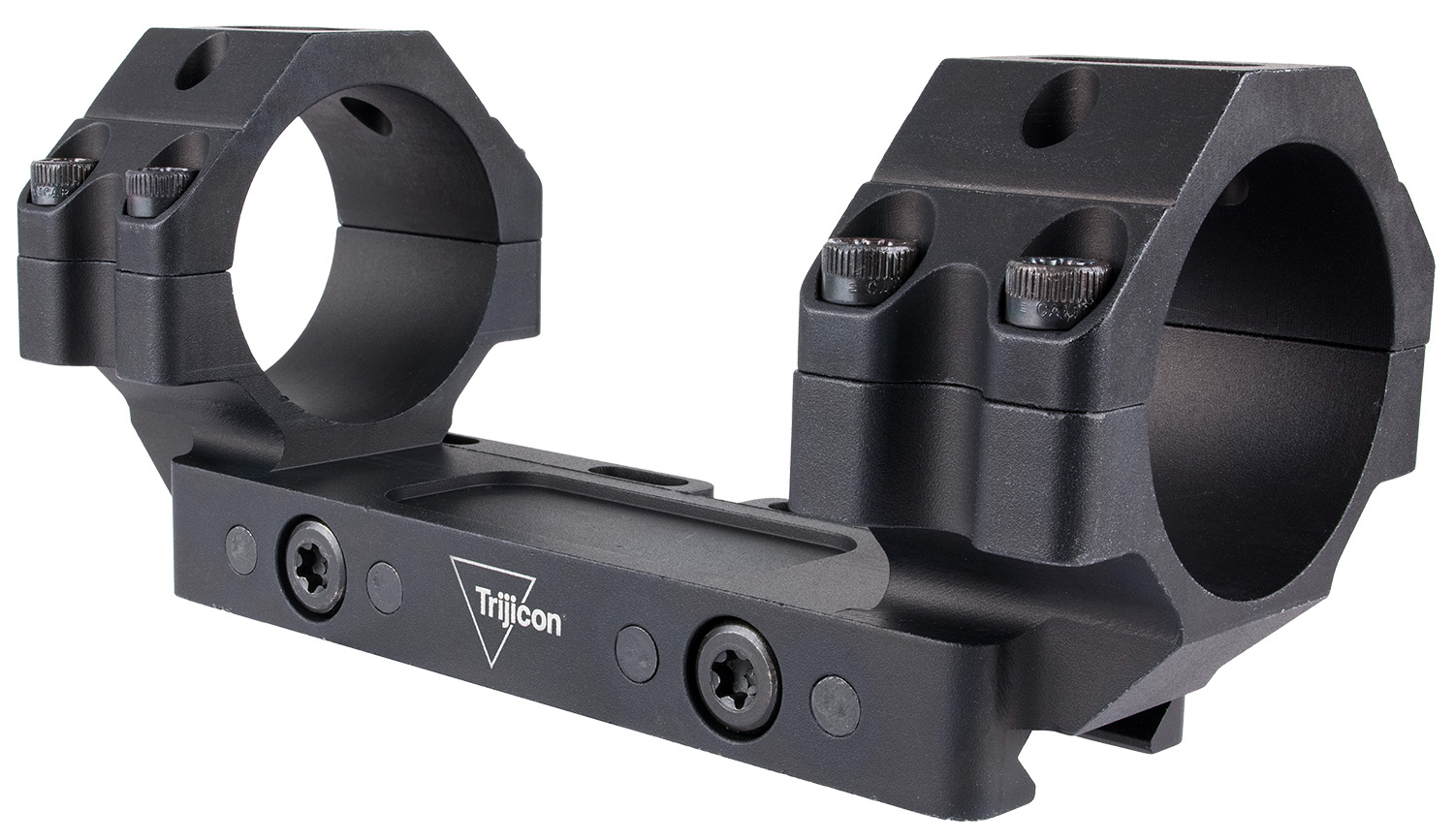

Trijicon 34mm Static Bolt-Action Scope Mount, 1.06-Inch Height
The AC22056 is a low-profile static bolt-action mount for 34 mm scope tubes. Its optical axis sits 1.06 inches above the rail, and its compact base does not have a cantilever extension. Trijicon lists this model for objective lenses up to 42 mm, making housing clearance an important part of choosing the lower height.
The 6061-T6 aluminum body uses flush mounting bolts and matte black anodizing. Its Slimline attachment format fits compatible Picatinny rails without the projecting Q-LOC knobs of the quick-release range. The package includes the mount, both ring caps, screws, and a hex key; match the scope’s available tube length to the ring arrangement.
Specifications
- Manufacturer part number: AC22056
- Scope tube diameter: 34 mm
- Mount style: static bolt-action / Slimline
- Optical-axis height above the rail: 1.06 inches
- Rail compatibility: MIL-STD-1913 / NATO Picatinny
- Material: 6061-T6 aluminum
- Finish: matte black anodized
- Manufacturer-listed objective lens size: up to 42 mm; actual clearance depends on the scope and firearm
- Includes: one mount, two ring caps, eight screws, and one hex key
