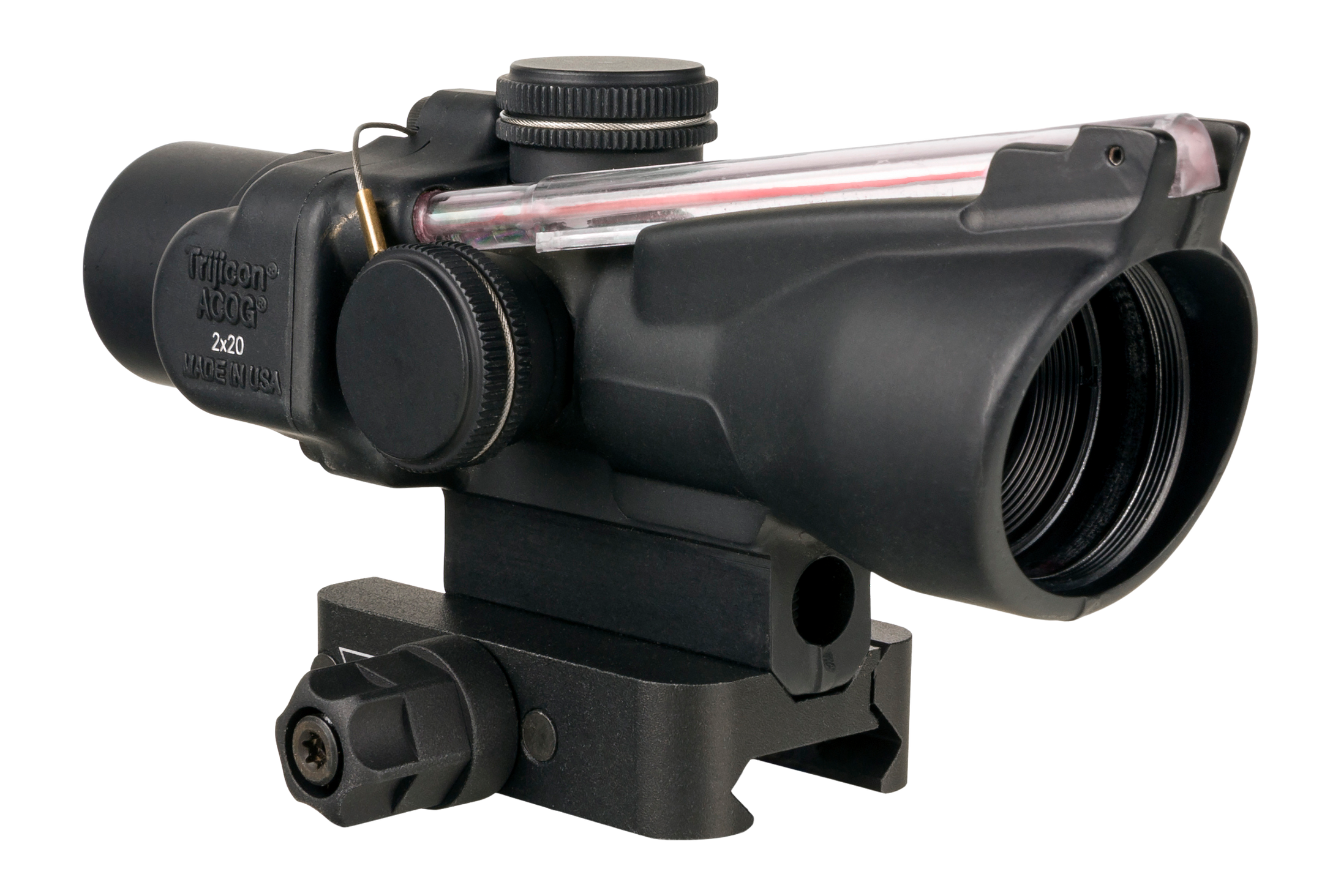

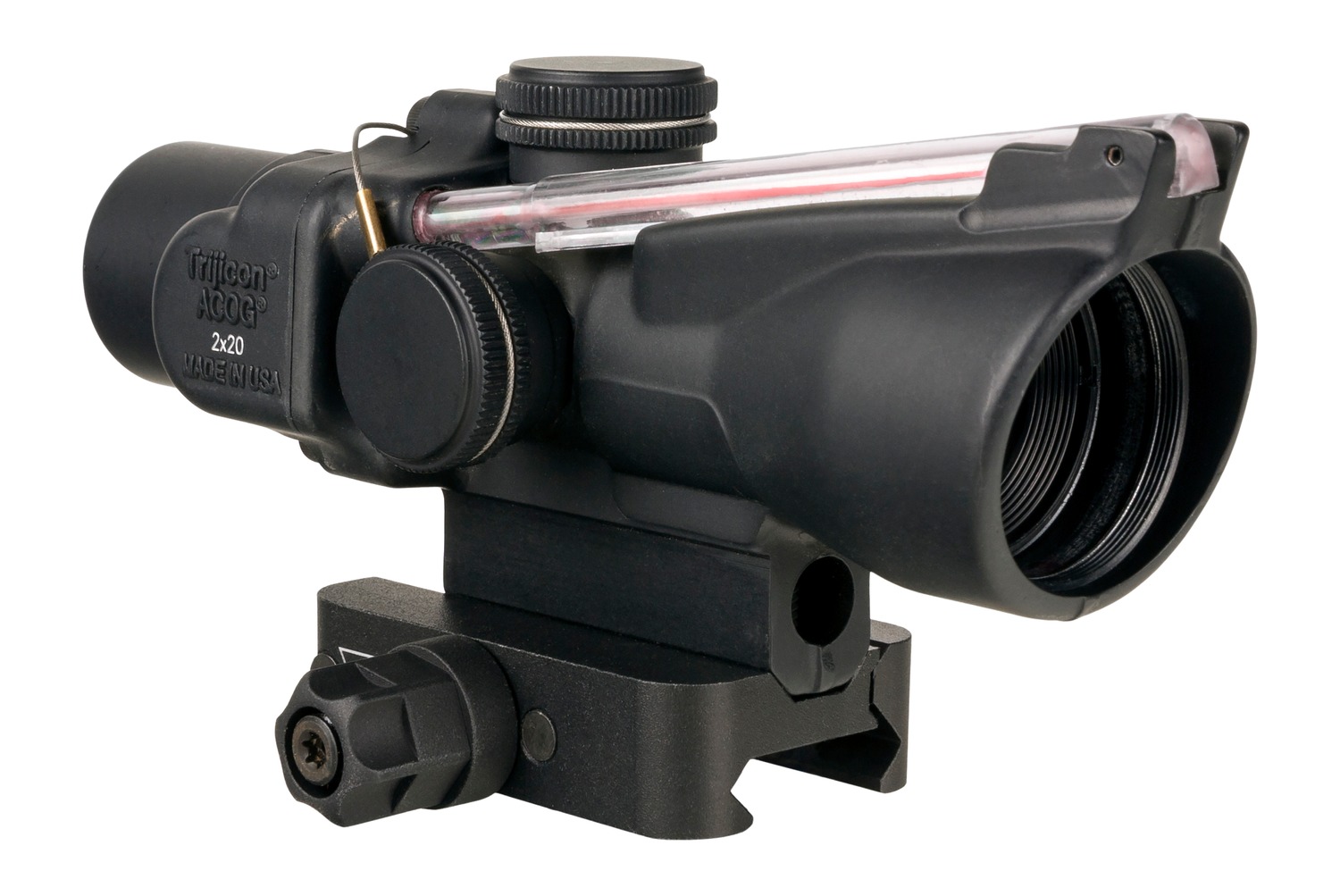

Trijicon Compact ACOG 2×20 Riflescope, Red RTR 9mm Reticle, Black (TA47-C-400410)

Description

Trijicon Compact ACOG 2×20 Riflescope, Red RTR 9mm Reticle, Black (TA47-C-400410)

The Trijicon Compact ACOG TA47-C-400410 brings a red RTR 9mm reticle to the fixed 2×20 format. Its horseshoe-and-dot pattern incorporates ballistic references for pistol-caliber carbines. This is the red alternative to the green TA47-C-400412, rather than a crosshair model with a different color label.

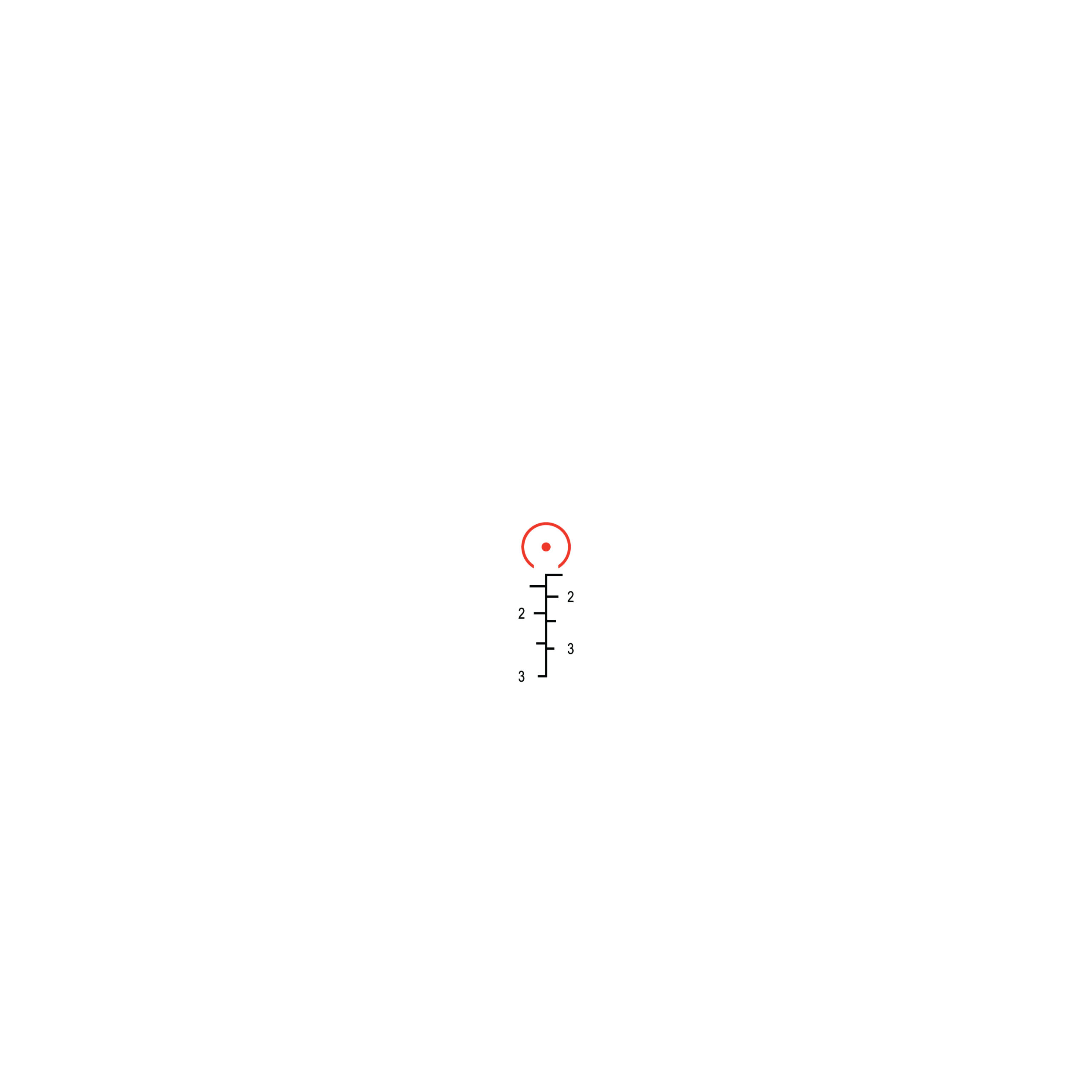

The reticle has an illuminated horseshoe and center dot, with references for 115- and 147-grain ammunition. A 20 mm objective accompanies the fixed 2x magnification, with 2.1 inches of eye relief and a 29.3-foot field of view at 100 yards. Those dimensions distinguish it from the wider-view 1.5x16S RTR options.

Fiber optics gather ambient light for reticle illumination, while tritium provides illumination in low light. Neither requires a battery or an electronic brightness control. The forged aluminum housing contains a nitrogen-filled optical system with multicoated lenses. The included Q-LOC mount fits a compatible Picatinny rail.

Specifications

• Manufacturer part number: TA47-C-400410
• Magnification: 2x fixed
• Objective lens: 20 mm
• Reticle: Red RTR 9mm PCC horseshoe/dot
• Reticle calibration: 9mm PCC, 115/147-grain ammunition
• Illumination: Fiber optics and tritium; no battery required
• Eye relief: 2.1 in.
• Field of view: 29.3 ft. at 100 yards
• Adjustment increments: 0.5 MOA per click
• Housing: Forged aluminum; black
• Included mount: Trijicon Q-LOC Picatinny mount
• Length: 5.3 in.
• Weight: 8.5 oz.
• Weather resistance: Waterproof; nitrogen-filled to resist internal fogging
