Description

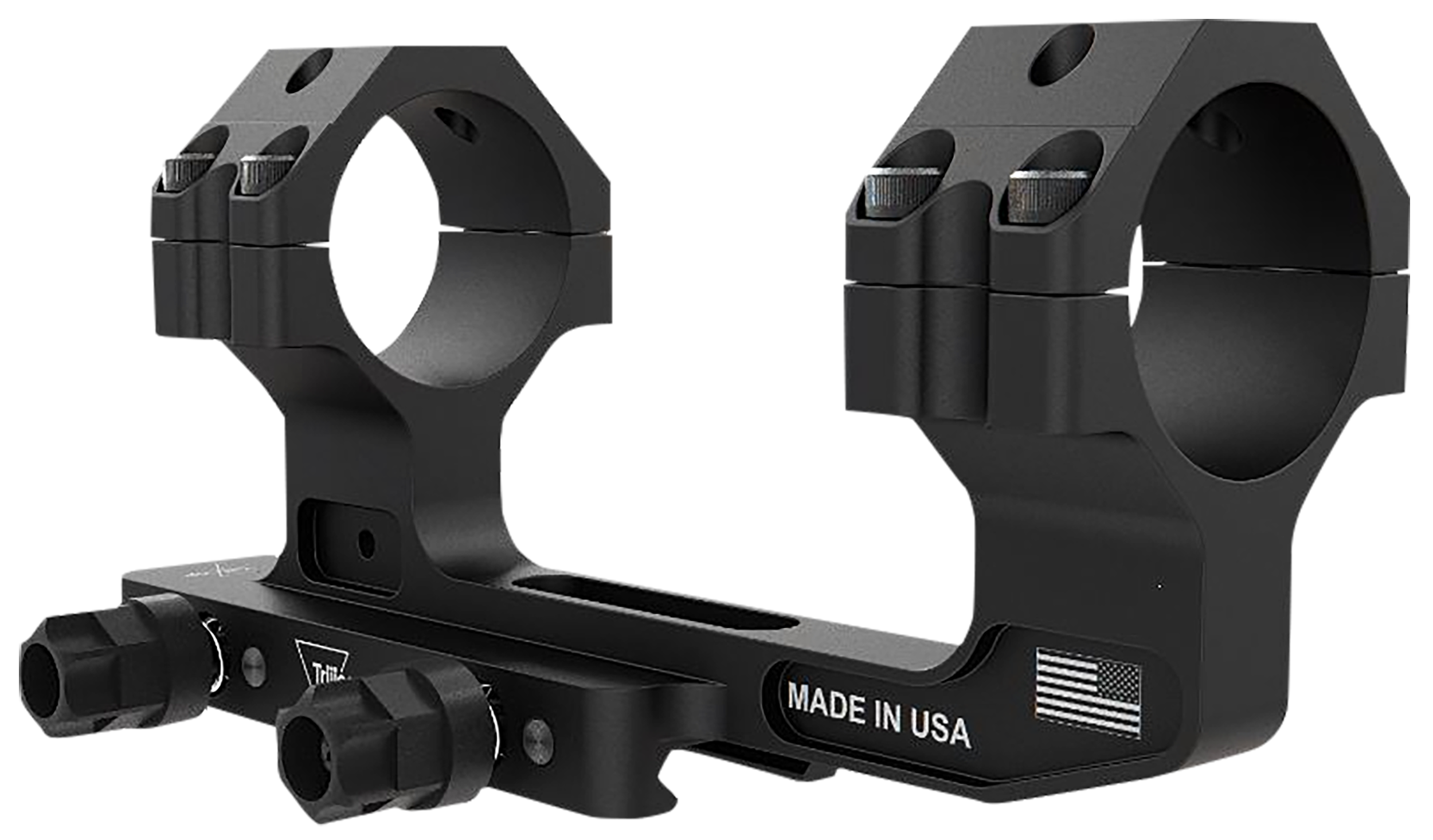

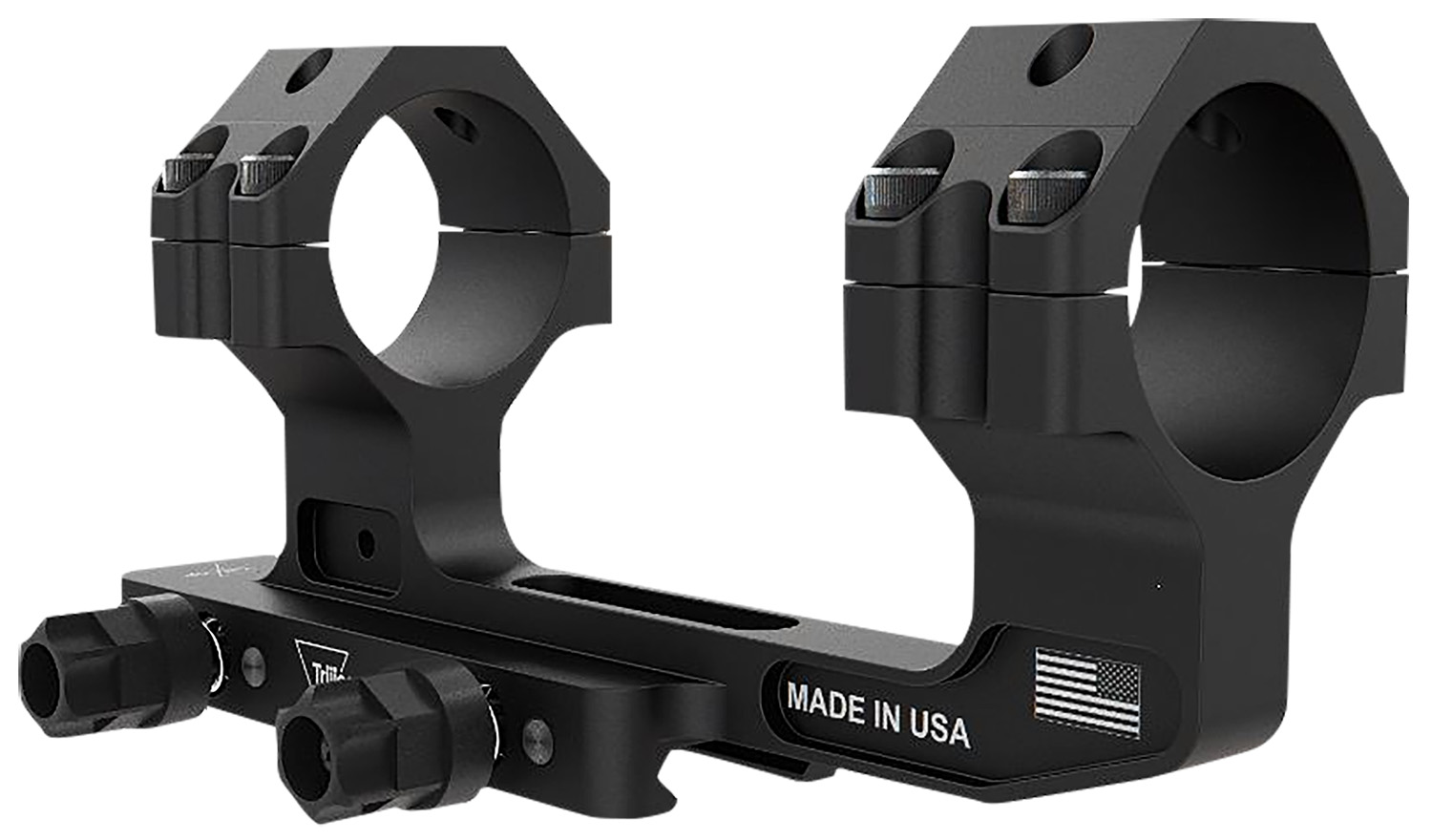

Trijicon 34mm Q-LOC Cantilever Scope Mount, 1.93-Inch Height
The AC22050 is a tall Q-LOC cantilever mount for 34 mm scope tubes, with the optical axis 1.93 inches above the rail. That height is substantially greater than the 1.535- and 1.590-inch options. Its forward-offset layout and elevated ring position should be considered together when matching the scope to the rifle’s stock and rail geometry.
The mount uses a 6061-T6 aluminum body, matte black anodizing, and spring-loaded Q-LOC attachment for compatible Picatinny rails. Trijicon lists objective lenses up to 56 mm. A taller mount is not automatically the best fit for every scope: confirm the required axis height, housing clearance, and available scope tube length.
Specifications
- Manufacturer part number: AC22050
- Scope tube diameter: 34 mm
- Mount style: Q-LOC cantilever
- Optical-axis height above the rail: 1.93 inches
- Rail compatibility: MIL-STD-1913 / NATO Picatinny
- Material: 6061-T6 aluminum
- Finish: matte black anodized
- Manufacturer-listed objective lens size: up to 56 mm; actual clearance depends on the scope and firearm
- Includes: one mount, two ring caps, eight screws, and one hex key
