Trijicon 35mm Q-LOC Cantilever Scope Mount, 1.70-Inch Height, 0 MOA

Name: Trijicon 35mm Q-LOC Cantilever Scope Mount, 1.70-Inch Height, 0 MOA
SKU: 719307619128
Price: 390.00 USD
Availability: OutOfStock

$390.00

Notify me when available

Enter your email and we will let you know when this item is available again.

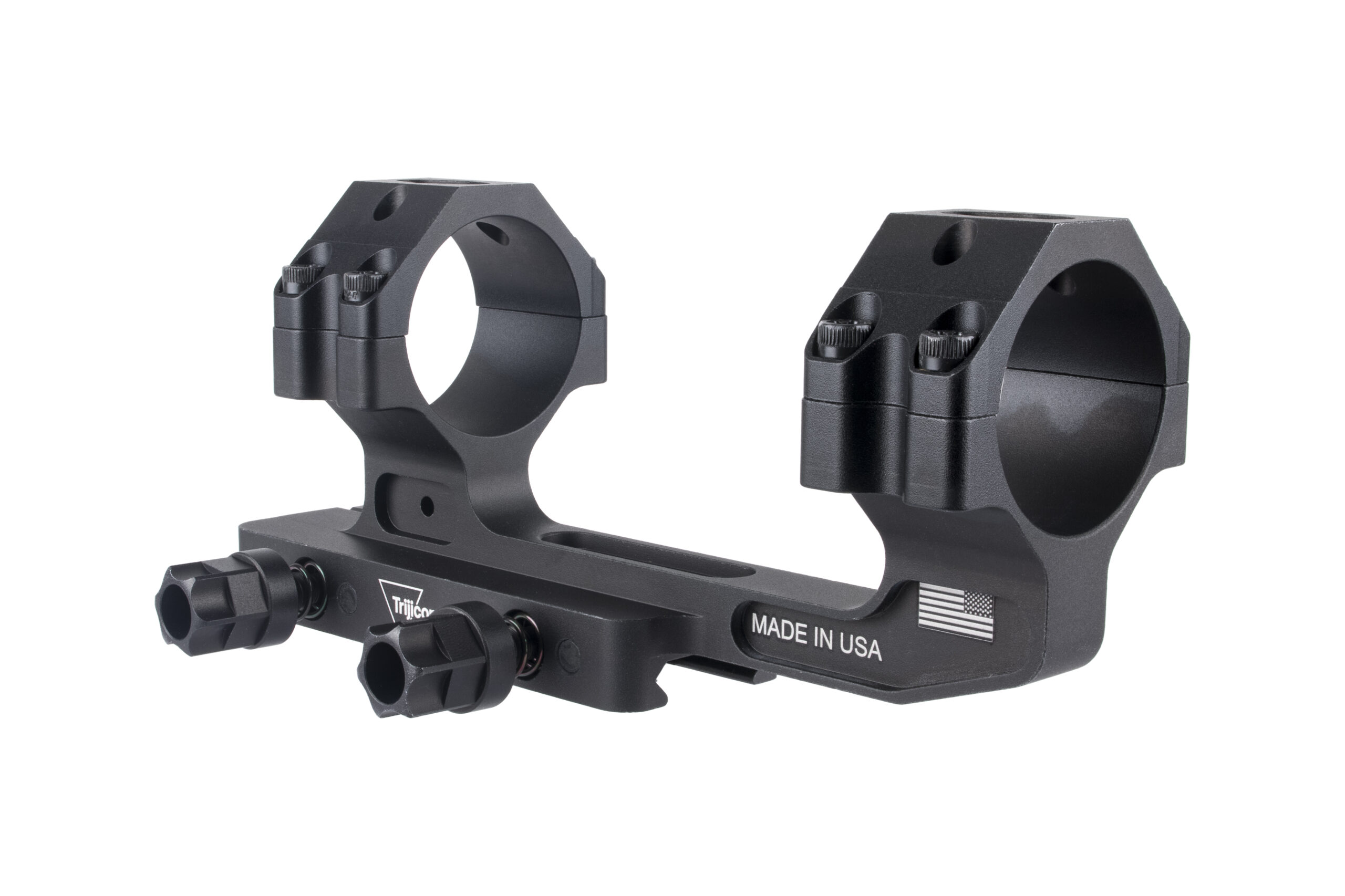

This 35 mm Q-LOC cantilever mount provides a 1.70-inch optical-axis height and 0 MOA of cant. The AC22076 uses a matte black aluminum body with spring-loaded Picatinny attachment. It is the uncanted alternative to the AC22077 and is listed for objective lenses up to 56 mm.

Out of stock

SKU: 719307619128

Description

Trijicon 35mm Q-LOC Cantilever Scope Mount, 1.70-Inch Height, 0 MOA

The AC22076 offers a 35 mm scope interface at a 1.70-inch optical-axis height with 0 MOA of built-in cant. It is the uncanted member of the 1.70-inch pair, distinct from the 20 MOA AC22077. Its cantilever layout offsets the rings forward while keeping the scope in a connected two-ring mount.

The 6061-T6 aluminum body has a matte black anodized finish and spring-loaded Q-LOC attachment for compatible Picatinny rails. Trijicon lists this model for objective lenses up to 56 mm. A 35 mm main tube is essential; the neighboring 34 mm models are not interchangeable, even when their overall appearance is similar.

Specifications

Manufacturer part number: AC22076
Scope tube diameter: 35 mm
Mount style: Q-LOC cantilever
Optical-axis height above the rail: 1.70 inches
Built-in cant: 0 MOA
Rail compatibility: MIL-STD-1913 / NATO Picatinny
Material: 6061-T6 aluminum
Finish: matte black anodized
Manufacturer-listed objective lens size: up to 56 mm; actual clearance depends on the scope and firearm
Includes: one mount, two ring caps, eight screws, and one hex key
