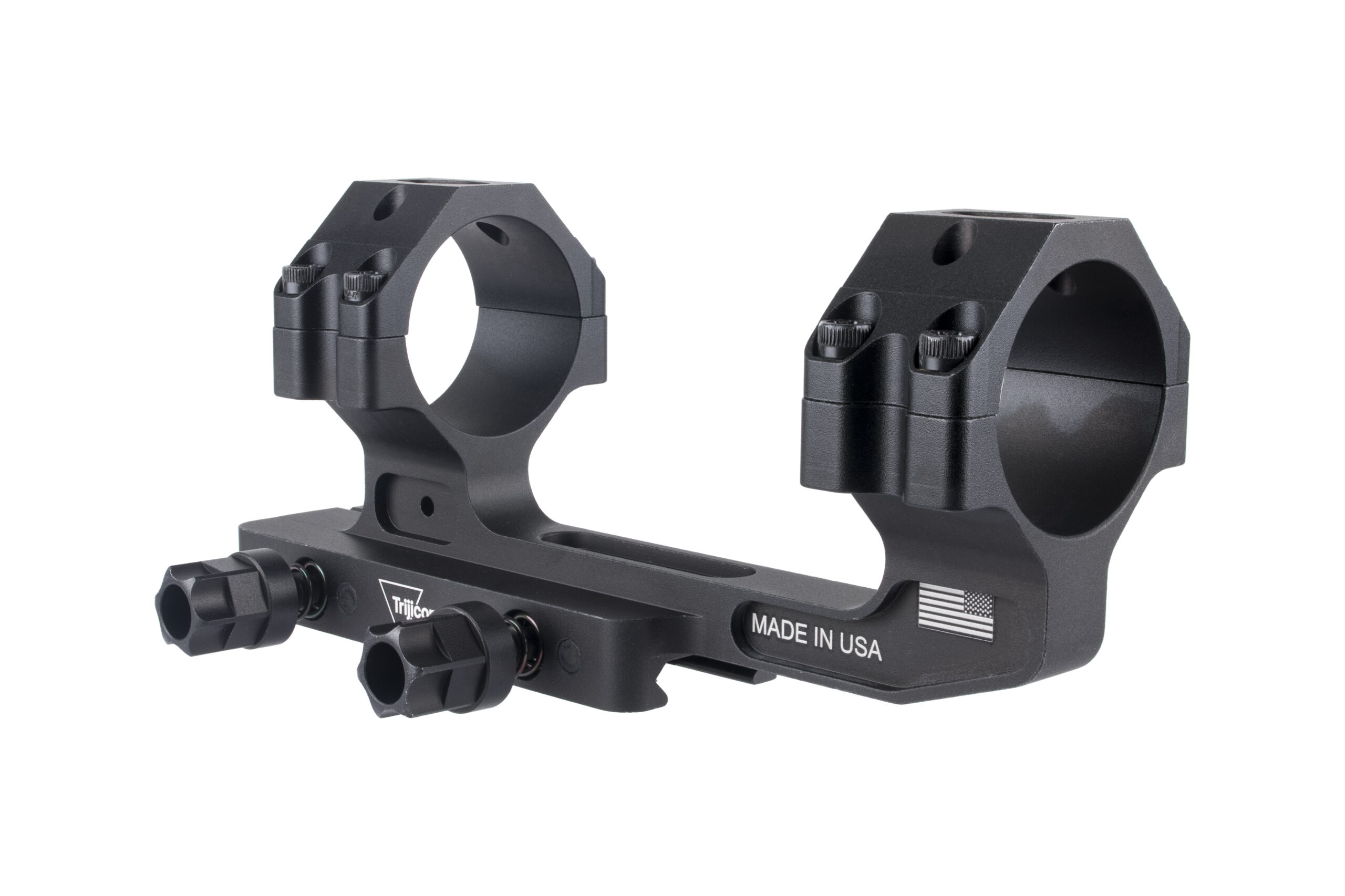

Trijicon 35mm Q-LOC Cantilever Scope Mount, 1.70-Inch Height, 20 MOA

Name: Trijicon 35mm Q-LOC Cantilever Scope Mount, 1.70-Inch Height, 20 MOA
SKU: 719307619753
Price: 390.00 USD
Availability: InStock

$390.00

The AC22077 Q-LOC cantilever mount fits 35 mm scope tubes at a 1.70-inch optical-axis height and adds 20 MOA of cant. Its matte black aluminum body uses spring-loaded Picatinny attachment. This is the canted alternative to the AC22076, with a listed objective lens limit of 56 mm.

In stock

A real team behind your order.

Questions before you buy or help after you order? We are here to help.

Contact Deerford Defense

SKU: 719307619753

Description

Trijicon 35mm Q-LOC Cantilever Scope Mount, 1.70-Inch Height, 20 MOA

The AC22077 combines a 35 mm tube interface with a 1.70-inch optical-axis height and 20 MOA of cant. It shares the nominal height of the AC22076 but uses a canted base rather than that model’s 0 MOA configuration. The forward-offset cantilever layout provides a connected mount for compatible variable-power scopes.

The body is 6061-T6 aluminum with matte black anodizing, and the Q-LOC rail attachment uses spring-loaded retention. It fits compatible Picatinny rails and is listed for objective lenses up to 56 mm. Match the 35 mm tube size, required base angle, and complete scope dimensions when choosing between the two 1.70-inch variants.

Specifications

Manufacturer part number: AC22077
Scope tube diameter: 35 mm
Mount style: Q-LOC cantilever
Optical-axis height above the rail: 1.70 inches
Built-in cant: 20 MOA
Rail compatibility: MIL-STD-1913 / NATO Picatinny
Material: 6061-T6 aluminum
Finish: matte black anodized
Manufacturer-listed objective lens size: up to 56 mm; actual clearance depends on the scope and firearm
Includes: one mount, two ring caps, eight screws, and one hex key
