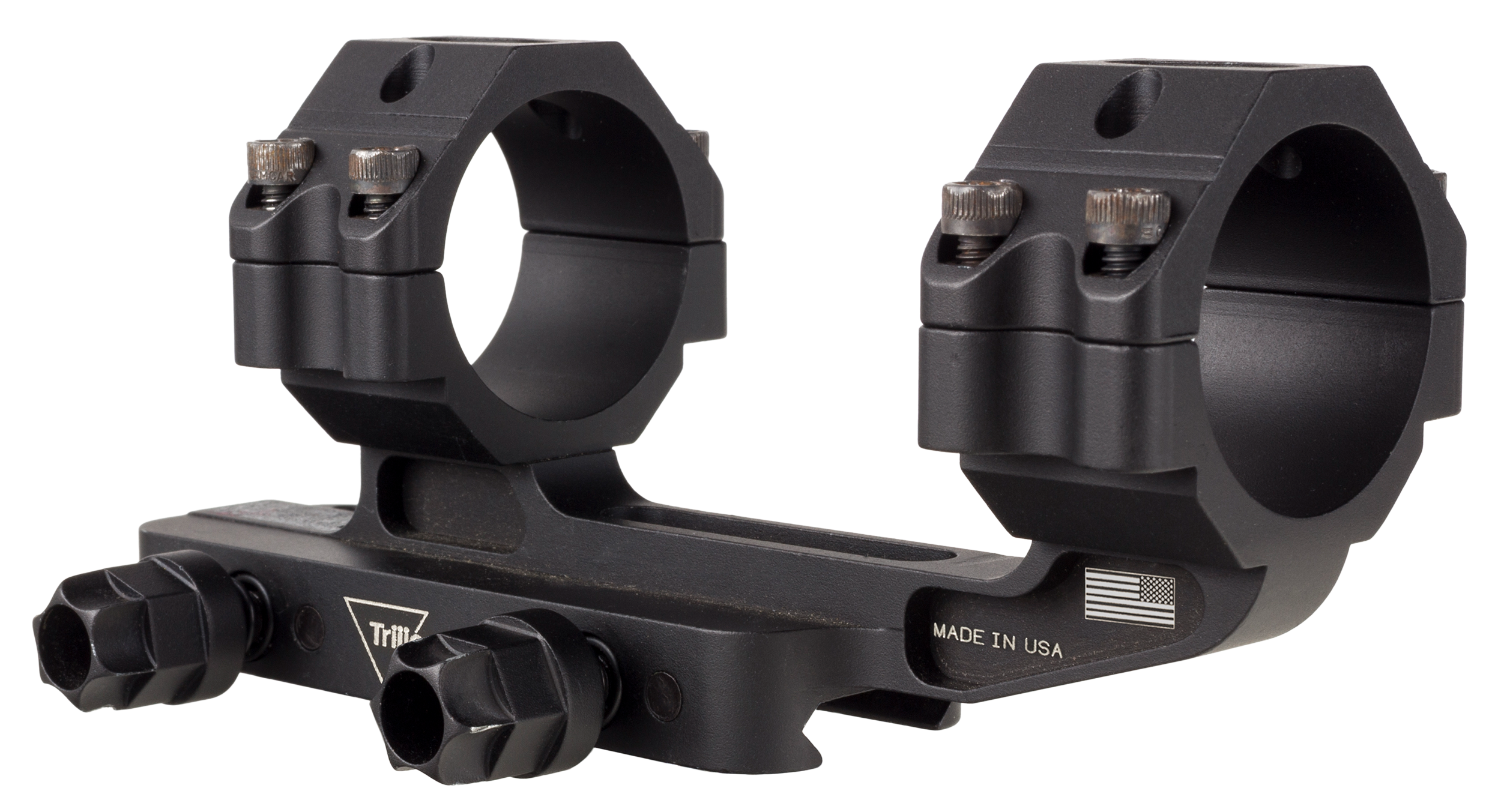

Trijicon 30mm Q-LOC Cantilever Scope Mount, 1.535-Inch Height
The AC22040 combines a 30 mm scope interface with a forward-offset cantilever layout and a 1.535-inch optical-axis height. This is the lower of the original 30 mm Q-LOC cantilever heights. Trijicon identifies this height for nominal alignment with compatible clip-on devices, though the specific device and scope combination must still match.
The mount is made from 6061-T6 aluminum with a matte black anodized finish. Its Q-LOC rail attachment uses spring-loaded retention and supports quick removal from compatible Picatinny rails. Trijicon lists objective lenses up to 56 mm; allow for the outside dimensions of the scope housing and any lens covers when checking clearance.
Specifications
- Manufacturer part number: AC22040
- Scope tube diameter: 30 mm
- Mount style: Q-LOC cantilever
- Optical-axis height above the rail: 1.535 inches
- Rail compatibility: MIL-STD-1913 / NATO Picatinny
- Material: 6061-T6 aluminum
- Finish: matte black anodized
- Manufacturer-listed objective lens size: up to 56 mm; actual clearance depends on the scope and firearm
- Includes: one mount, two ring caps, eight screws, and one hex key
