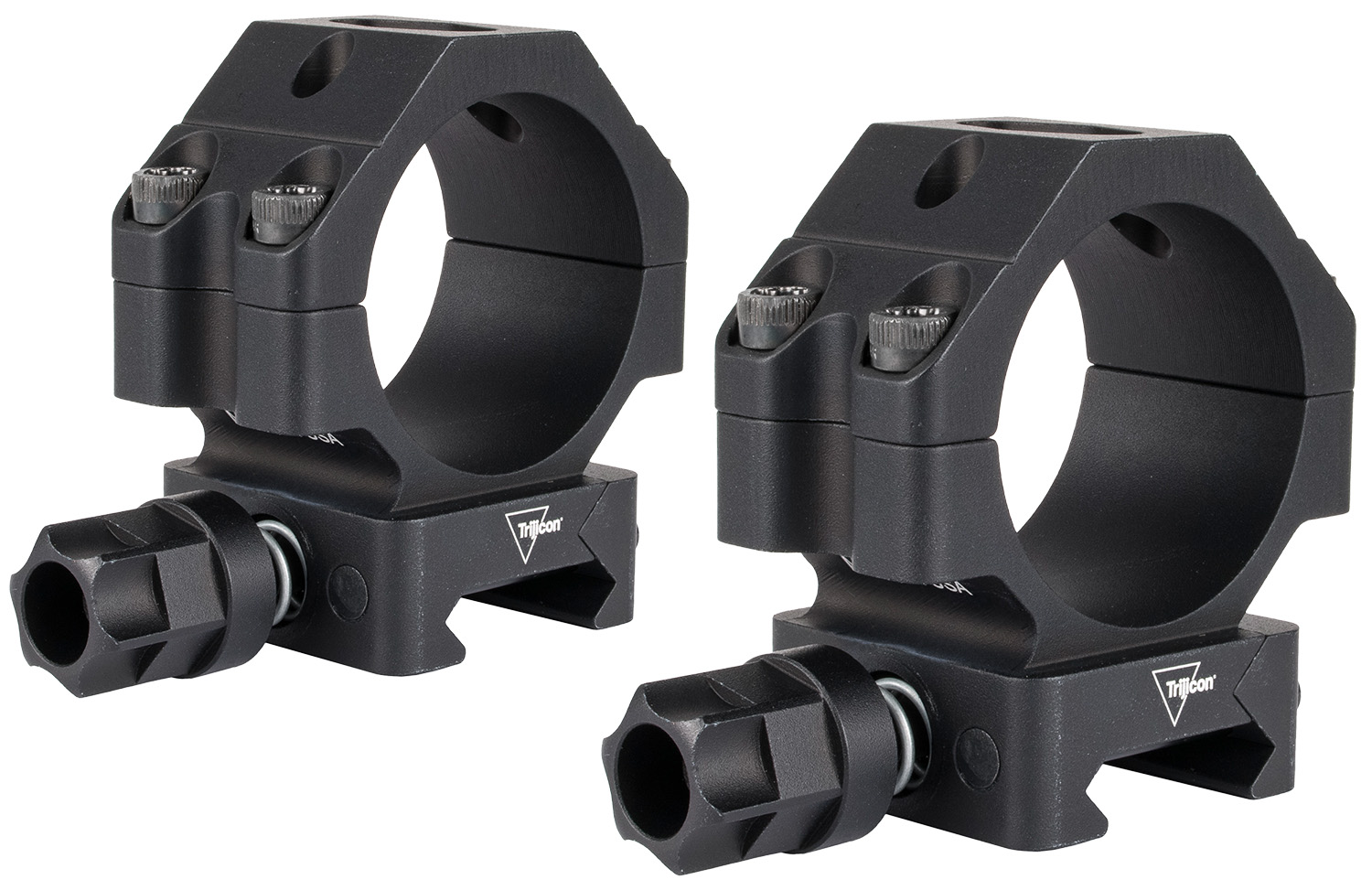

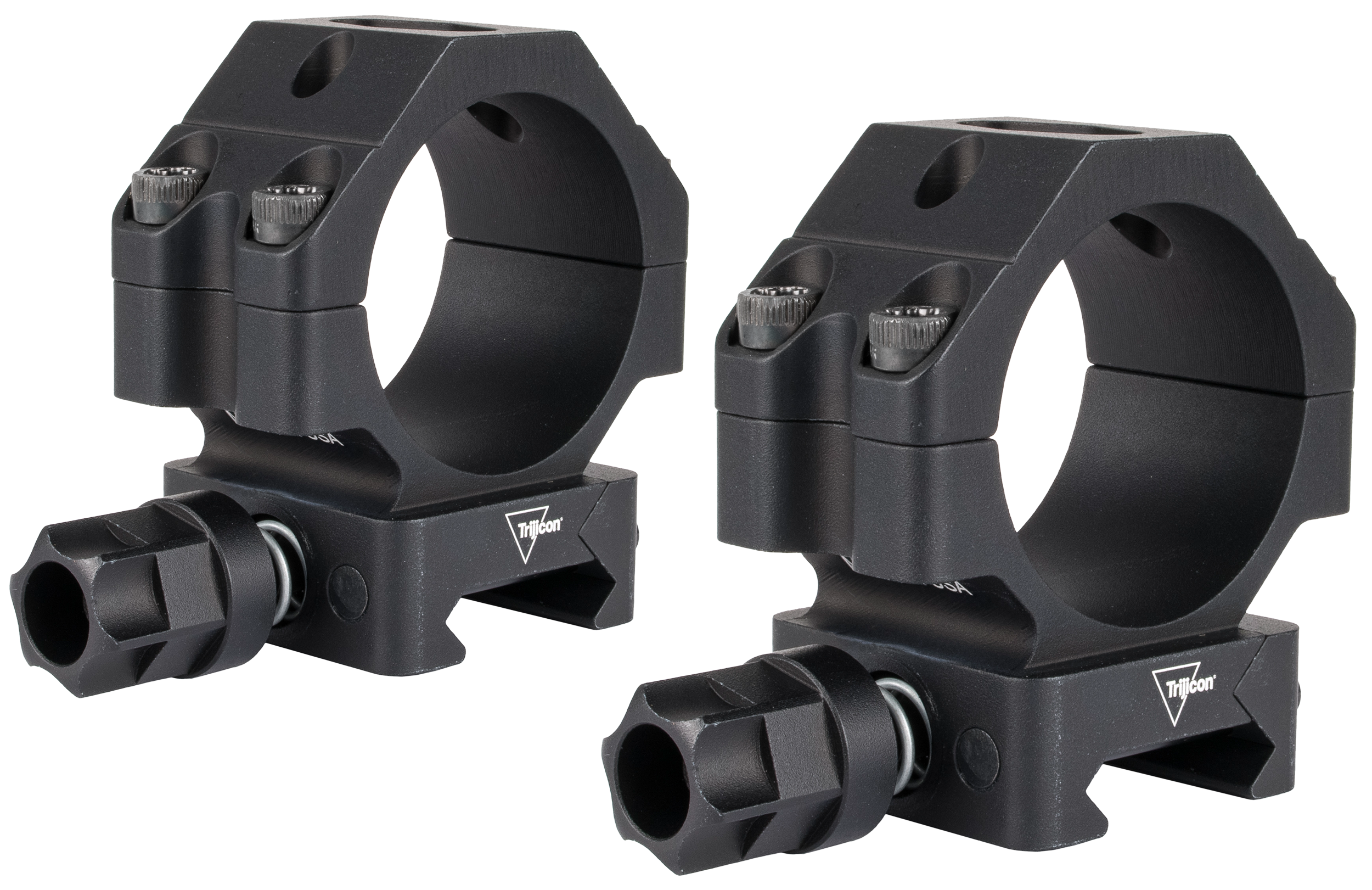

Trijicon 34mm Q-LOC Scope Rings, Low
The AC22068 is the low Q-LOC ring set for 34 mm scope tubes, with a 1.0-inch optical-axis height. Its compact height is listed for objective lenses up to 40 mm. A larger main tube does not necessarily require a tall ring, but the full objective housing and rifle geometry must allow the clearance this low set needs.
The rings have separate bases, allowing their spacing to follow the scope’s usable tube length and compatible rail positions. Each uses spring-loaded Q-LOC attachment, 6061-T6 aluminum construction, and a matte black anodized finish. This set fits MIL-STD-1913 and NATO Picatinny rails and is specifically sized for 34 mm, not 30 or 35 mm, tubes.
Specifications
- Manufacturer part number: AC22068
- Scope tube diameter: 34 mm
- Height class: low
- Optical-axis height above the rail: 1.0 inch
- Attachment: Trijicon Q-LOC
- Rail compatibility: MIL-STD-1913 / NATO Picatinny
- Material: 6061-T6 aluminum
- Finish: matte black anodized
- Manufacturer-listed objective lens size: up to 40 mm; actual clearance depends on the scope and firearm
- Includes: two ring mounts, two ring caps, eight screws, and one hex key
