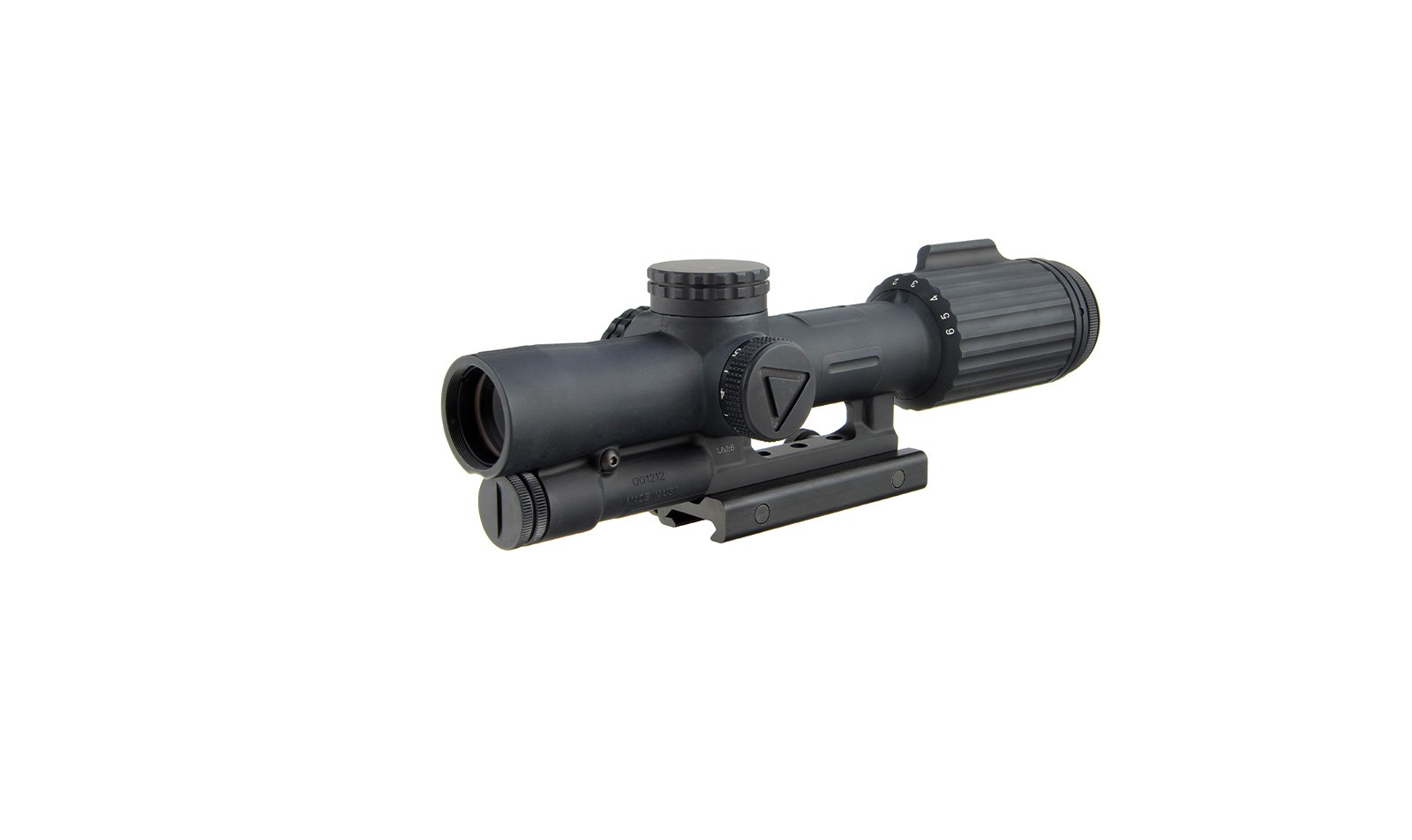

Trijicon VCOG 1-6×24 FFP Riflescope, Red MOA Segmented Circle/Crosshair Reticle, Thumbscrew Mount, Black

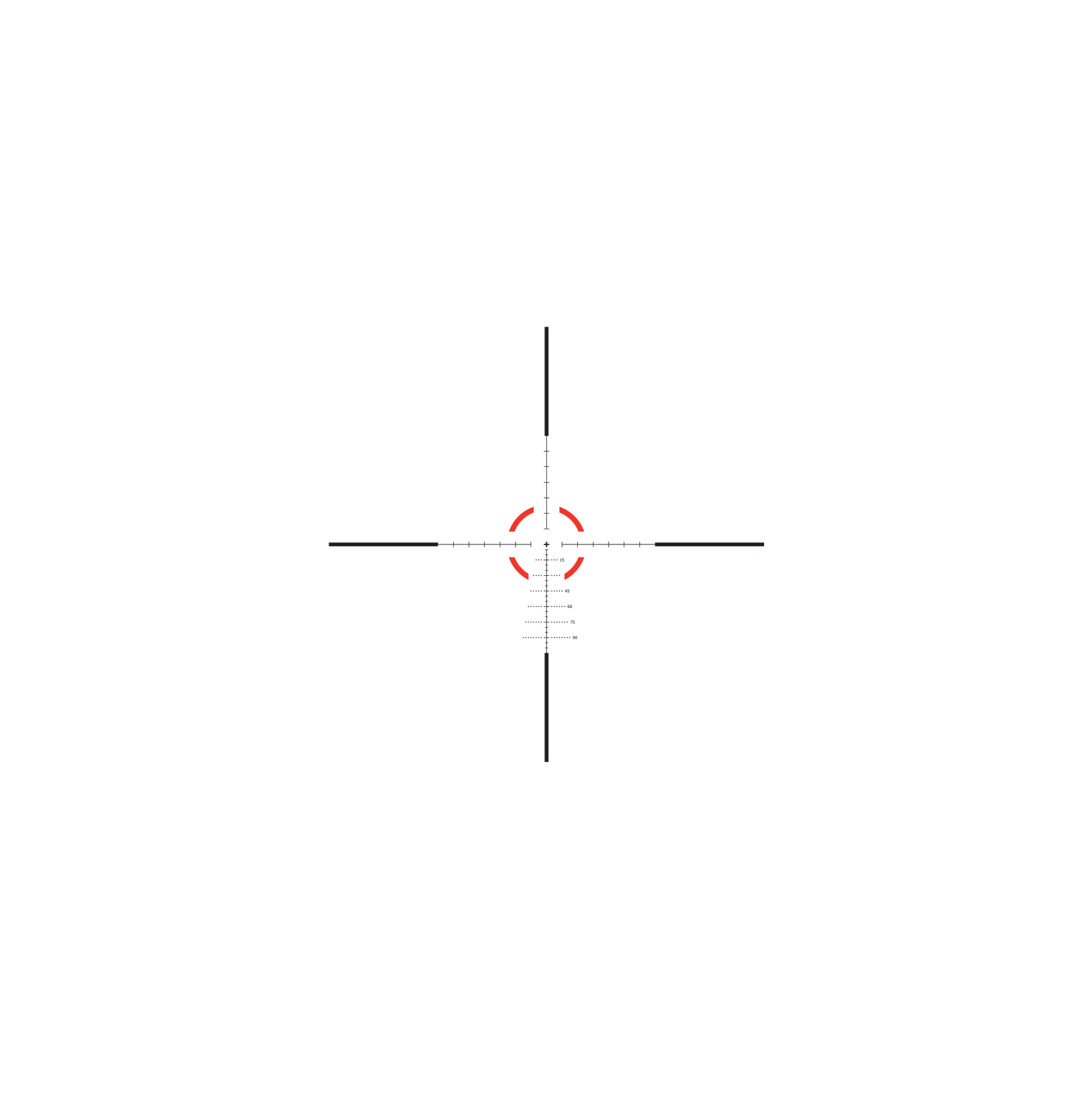

This Trijicon VCOG 1-6×24 uses a red segmented circle/crosshair reticle with universal MOA graduations. Unlike the caliber-specific versions, it is not labeled for a particular cartridge and bullet weight. The package combines a matte-black scope with the TA51 thumbscrew mount.
The reticle and 1/4-MOA click adjustments share the same angular measurement system. First-focal-plane construction keeps the reticle scale consistent relative to the image across the zoom range, while four inches of eye relief and a built-in magnification fin complete the optical layout. This is the red-illuminated counterpart to the green MOA configuration.
A single AA battery powers the red LED illumination, with six selectable brightness settings. Trijicon rates continuous operation at 700 hours on setting 4 with a lithium AA battery. The scope also accepts an alkaline AA, but that runtime rating applies to the lithium battery. Illumination power comes from the battery, not fiber optics or tritium.
The forged 7075-T6 aluminum housing has a matte-black finish and a submersion rating of 20 m. Its integrated mounting interface uses the included TA51 adapter instead of conventional scope rings. The box also includes a lithium AA battery, LENSPEN, manual, warranty card, and Trijicon sticker.
Specifications
- Manufacturer model: VC16-C-1600035
- Magnification and objective: 1-6x; 24 mm
- Focal plane: First (FFP)
- Reticle: Red MOA segmented circle/crosshair
- Illumination: Red LED; 6 brightness settings
- Battery: One AA lithium or alkaline; lithium AA included
- Battery life: 700 hours at setting 4 with a lithium AA
- Adjustment increment: 1/4 MOA per click
- Included mount: TA51 flattop thumbscrew
- Eye relief: 4 in.
- Field of view at 100 yd: 95 to 15.9 ft. (1x to 6x)
- Length: 10.05 in.
- Weight: 23.2 oz.
- Housing and finish: Forged 7075-T6 aluminum; matte black
- Submersion rating: 20 m (66 ft.)
