Trijicon ACOG TA02 4×32 LED Riflescope, Green .300 Blackout Crosshair Reticle, TA51 Mount, Black

Description

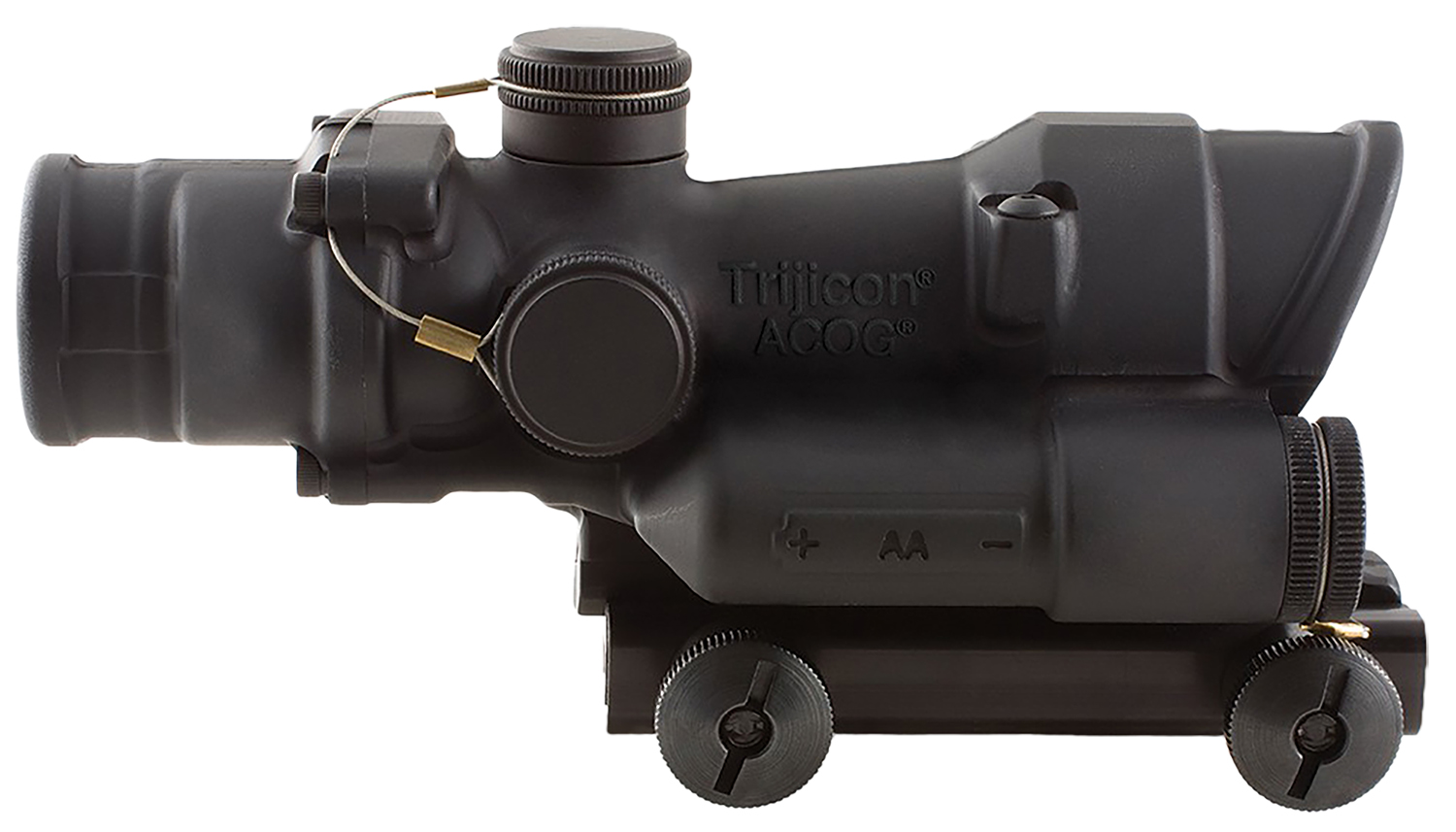

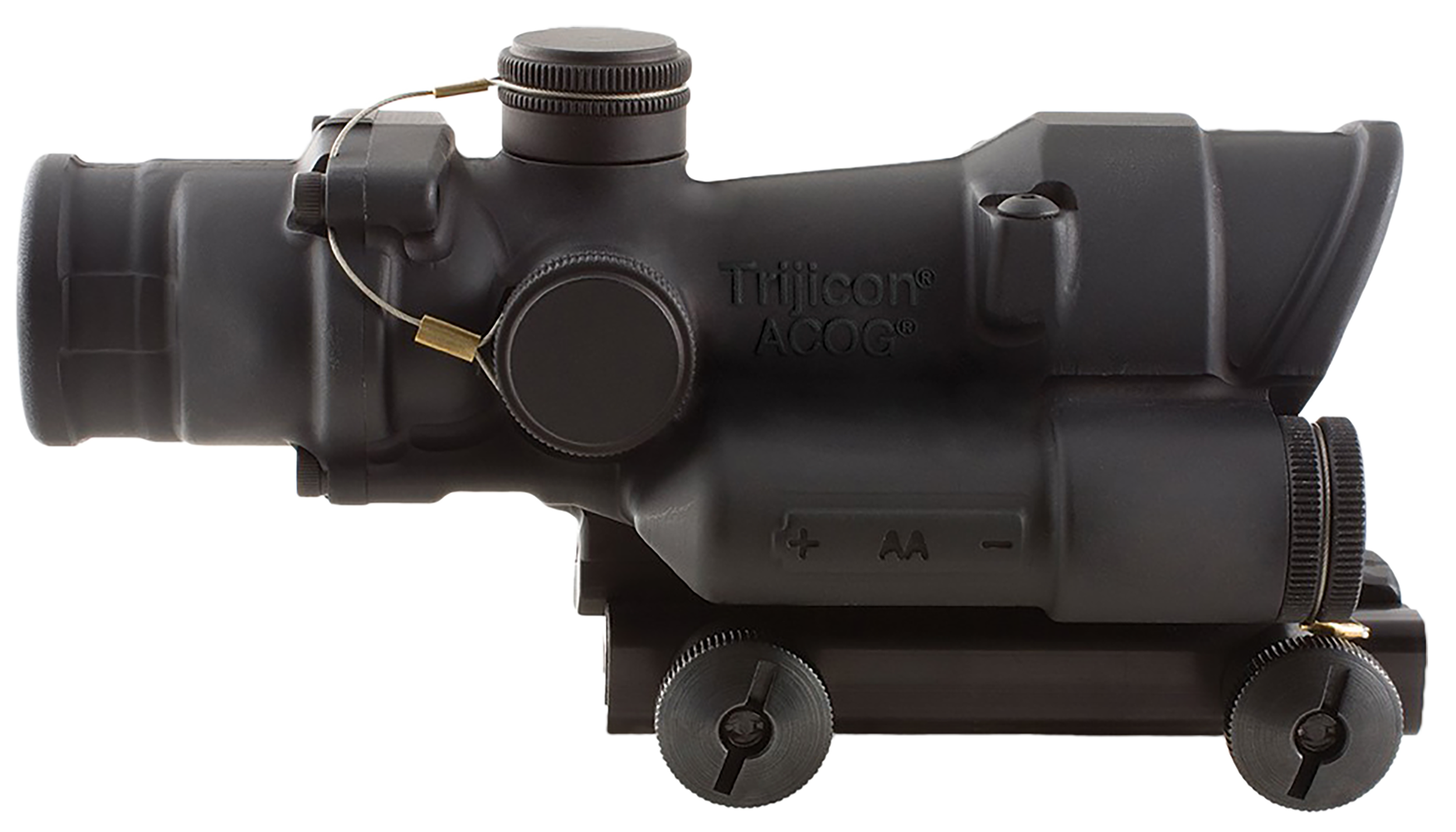

Trijicon ACOG TA02 4×32 LED Riflescope, Green .300 Blackout Crosshair Reticle, TA51 Mount, Black

The Trijicon ACOG TA02-C-100432 4×32 LED riflescope pairs a green crosshair reticle calibrated for .300 Blackout with user-selected brightness. A single AA battery powers the illumination, and the black scope includes a TA51 mount.

Green Crosshair Reticle

Choose this model for the .300 Blackout reticle with electronic brightness control. It differs from the TA31-C-100413 in its illumination system: the TA02 lets you choose a brightness level instead of relying on a fiber-optic collector and tritium.

The crosshair uses intersecting lines for a familiar central reference, with ballistic markings incorporated into the pattern. It is a different visual style from the ACOG chevron or horseshoe, making it a good fit when you prefer a conventional scope reticle.

AA Power with Selectable Brightness

The LED system offers six brightness settings, with an off position between each pair of adjacent levels. You can switch off the illumination without turning the dial all the way back to the lowest setting. Unlike a TA31, the TA02 does not use a fiber-optic collector or tritium to light its reticle.

One AA battery powers the illumination. Trijicon specifies more than 12,000 hours of battery life at brightness setting 4 with an alkaline battery at 70 degrees Fahrenheit; brightness and temperature affect runtime. The etched reticle remains visible without illumination, so switching the LED off does not remove the pattern.

Compact Fixed-Power Construction

The scope combines fixed 4x magnification with a 32 mm objective lens. Its forged 7075-T6 aluminum housing is sealed and nitrogen-filled, protecting the multi-coated optics. It has a 7-degree field of view and an exit pupil of approximately 8 mm.

Included Mount and Fit

The included TA51-style thumbscrew mount attaches to a compatible flattop rail. The ACOG uses a dedicated mounting base rather than conventional riflescope rings. It has a relatively short eye relief of 1.5 inches, so check your available rail space and normal viewing position before choosing a mount.

Details

• Model / Manufacturer Part Number: TA02-C-100432
• Magnification: Fixed 4x
• Objective Lens: 32 mm
• Reticle: Green crosshair
• Reticle Calibration / Configuration: .300 Blackout
• Scope Illumination: Battery-powered LED
• Scope Battery: One AA
• Scope Brightness: Six selectable levels with intermediate off positions
• Eye Relief: 1.5 in.
• Angular Field of View: 7 degrees
• Exit Pupil: Approximately 8 mm
• Scope Adjustment: 1/2 MOA per click
• Housing: Forged 7075-T6 aluminum
• Finish: Black
• Mount / Hardware: TA51-style thumbscrew flattop mount included
• UPC: 719307308732
