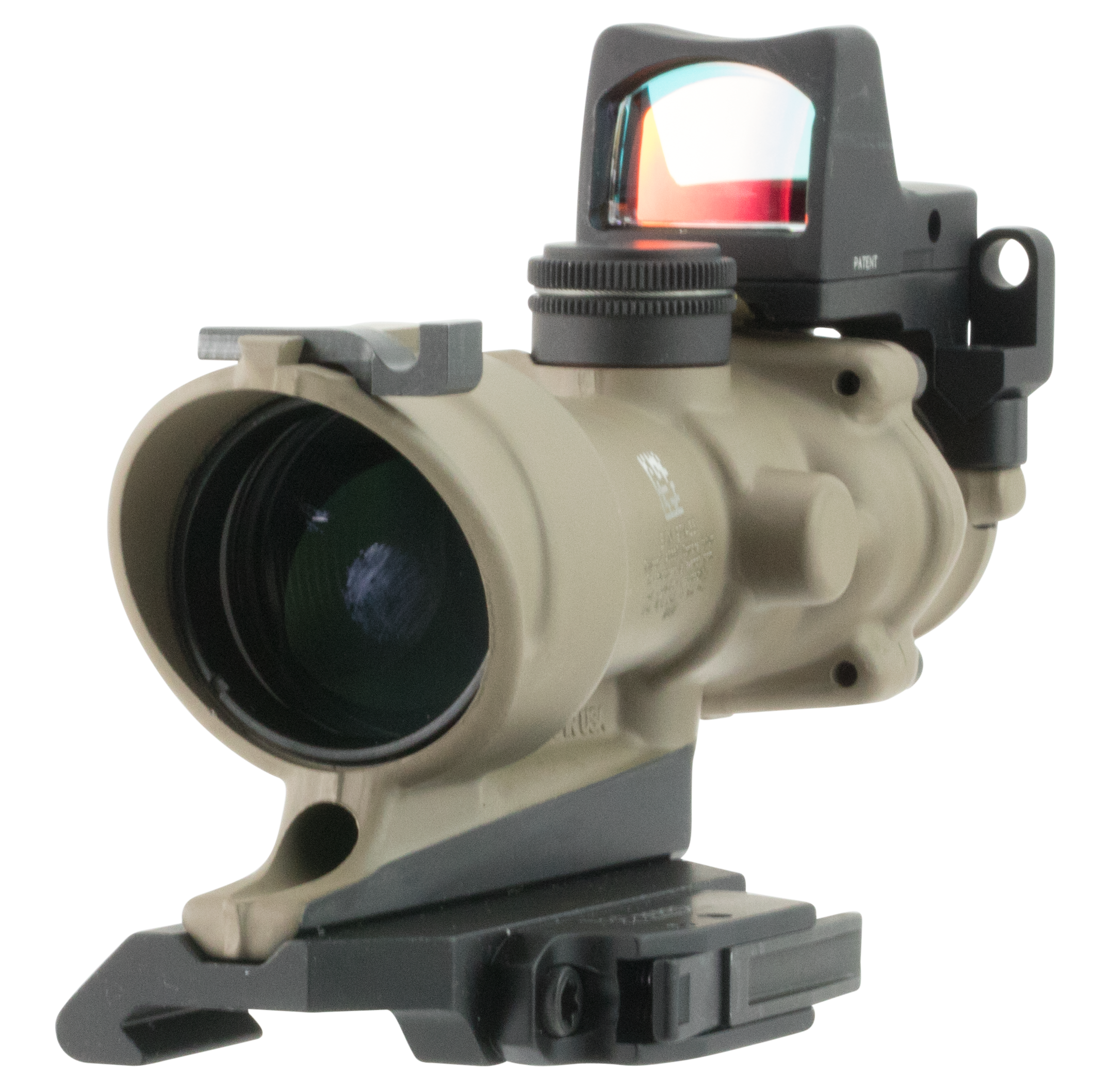

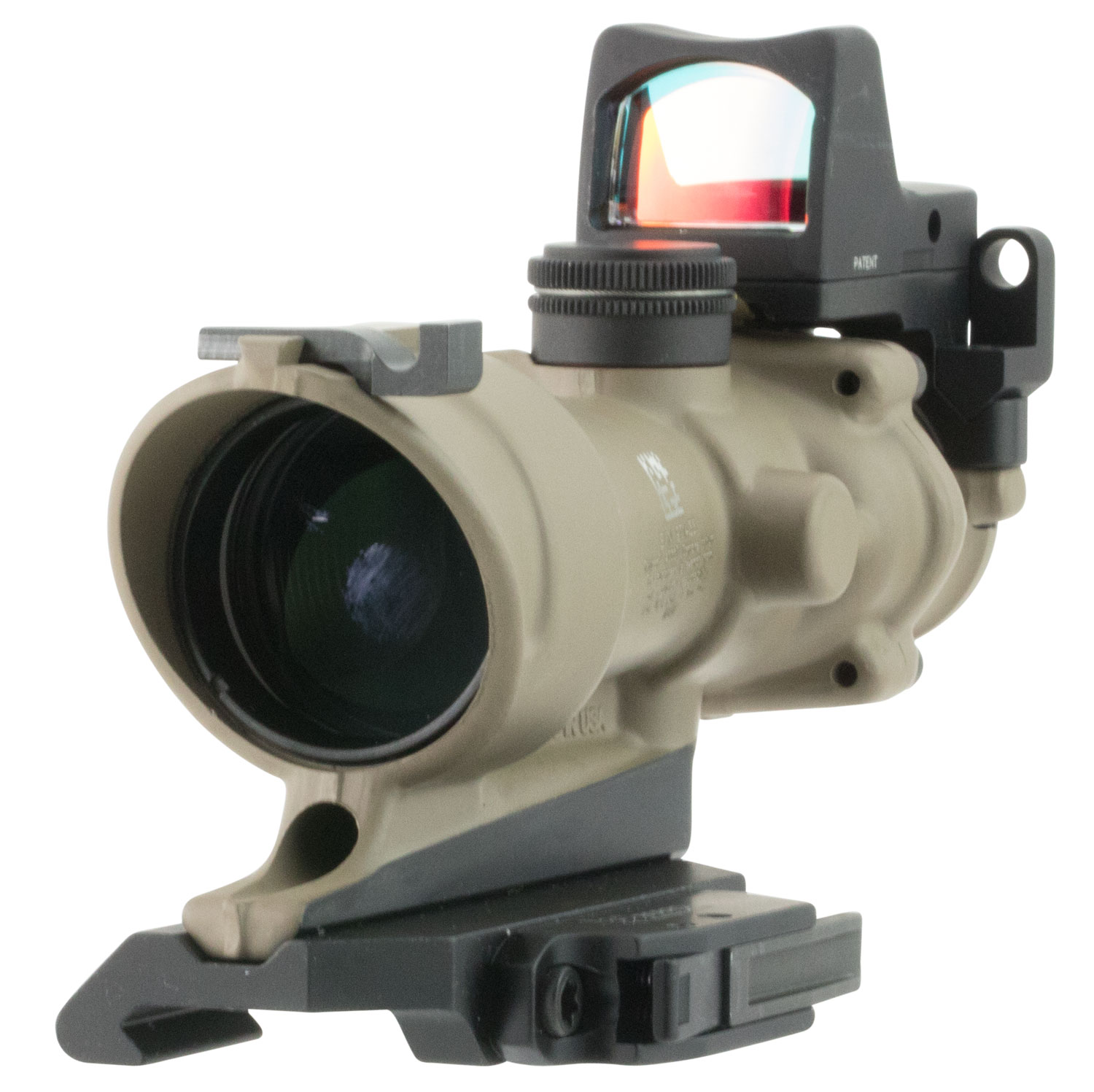

Trijicon ACOG ECOS 4×32 Riflescope with RMR Type 2, Amber 5.56 Crosshair Reticle, Quick-Release Mount, Flat Dark Earth

Description

Trijicon ACOG ECOS 4×32 Riflescope with RMR Type 2, Amber 5.56 Crosshair Reticle, Quick-Release Mount, Flat Dark Earth

The Trijicon ACOG ECOS TA01-D-100555 4×32 with RMR Type 2 combines an amber center-illuminated crosshair with a 3.25 MOA red dot. The Flat Dark Earth package includes backup iron sights and a quick-release mount.

Amber Crosshair Reticle

Choose this ECOS model for the traditional TA01 crosshair and tritium-only scope illumination. It does not use the fiber-optic collector found on the green TA31 ECOS. The RMR remains a separate battery-powered optic, giving the package two distinct illumination systems.

The crosshair uses intersecting lines for a familiar central reference, with ballistic markings incorporated into the pattern. It is a different visual style from the ACOG chevron or horseshoe, making it a good fit when you prefer a conventional scope reticle.

Tritium Center Illumination

The crosshair appears dark in daylight. In low light, tritium illuminates its center in amber. This is a tritium-only system: there is no fiber-optic collector, brightness dial, or scope battery. You get a traditional crosshair in daylight and an illuminated center in low light.

Tritium is self-luminous and does not need charging under a light. The etched reticle remains visible independently of the illumination. Backup iron sights are included with this configuration, adding a separate reference above the scope body.

A Separate RMR Type 2 Red Dot

The included RM01 RMR Type 2 provides a 3.25 MOA red dot in a non-magnifying view. This open-emitter optic adjusts brightness automatically; it is not the manually adjustable RM06. Its CR2032 battery is separate from the ACOG illumination system.

The RMR sits above the ACOG in this factory combination. You receive two separate optics rather than a scope with a switchable magnification setting. The RMR battery is accessed from underneath, so you must remove the optic from its mount to replace the battery.

Compact Fixed-Power Construction

The scope combines fixed 4x magnification with a 32 mm objective lens. Its forged 7075-T6 aluminum housing is sealed and nitrogen-filled, protecting the multi-coated optics. It has a 7-degree field of view and an exit pupil of approximately 8 mm.

Included Mount and Fit

A quick-release rail mount is included with this ECOS package, along with backup iron sights. This is a different package from a standard ACOG with a thumbscrew mount. The ACOG has 1.5 inches of eye relief, so check that your setup allows a comfortable viewing position.

Details

• Model / Manufacturer Part Number: TA01-D-100555
• Magnification: Fixed 4x
• Objective Lens: 32 mm
• Reticle: Amber crosshair
• Reticle Calibration / Configuration: 5.56 / .223
• Scope Illumination: Tritium-only amber center illumination
• Scope Battery: Not required
• Scope Brightness: Self-luminous tritium center in low light
• Eye Relief: 1.5 in.
• Angular Field of View: 7 degrees
• Exit Pupil: Approximately 8 mm
• Scope Adjustment: 1/2 MOA per click
• Housing: Forged 7075-T6 aluminum
• Finish: Flat Dark Earth
• Mount / Hardware: Quick-release rail mount included
• Secondary Optic: RM01 RMR Type 2, automatic-brightness LED
• Secondary Reticle: 3.25 MOA red dot
• Secondary Battery: CR2032
• Backup Iron Sights: Included
• UPC: 719307311831
