Description
Trijicon HD XR Night Sight Set for Smith & Wesson Bodyguard 2.0, Yellow Front Outline

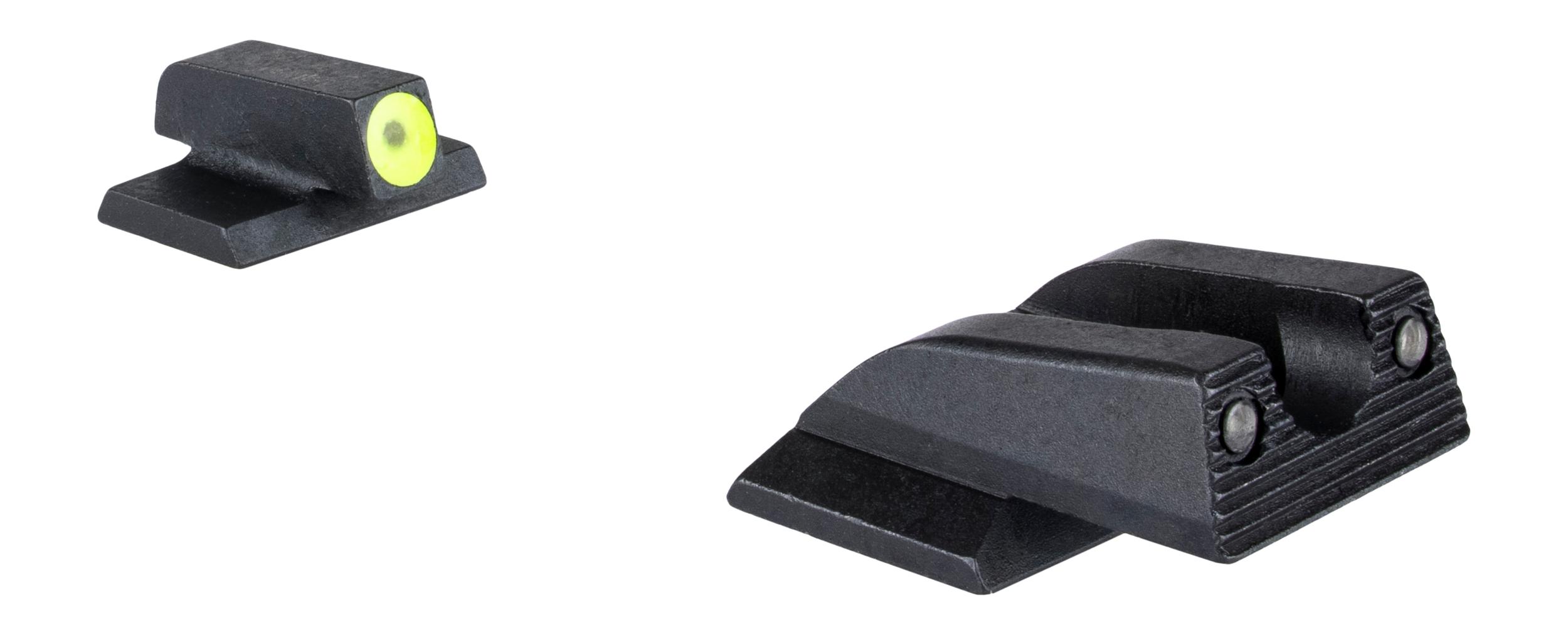

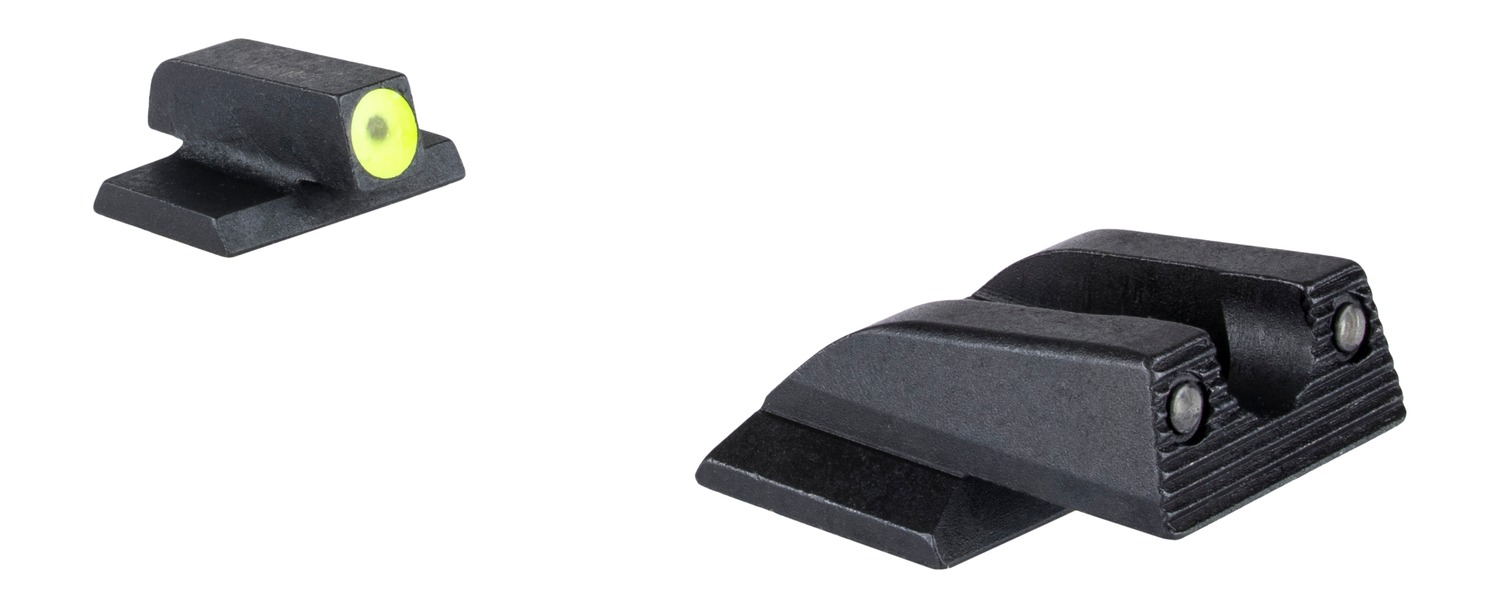

This Trijicon HD XR set is built for the Smith & Wesson Bodyguard 2.0 and features a yellow front outline. Model SA638-C-601183 includes the front sight and rear sight together, bringing the HD XR family’s thin-post layout to this specific pistol platform.
The yellow front ring stands apart from the black rear outlines in daylight. In lower light, green tritium lamps illuminate the front dot and both rear dots without batteries. A 0.122-inch front post and a serrated U-notch rear define the sight picture; the outline color does not change the green tritium illumination.
The Bodyguard 2.0 designation is important. Do not select this set solely because another pistol also carries the Bodyguard or M&P name. This standard-height pair is specific to the Bodyguard 2.0, not a universal S&W sight set. Trijicon recommends professional installation.
Specifications
- Manufacturer model: SA638-C-601183
- Compatibility: Smith & Wesson Bodyguard 2.0
- Configuration: Standard-height night sight set
- Front outline: Yellow, photoluminescent
- Front-post width: 0.122 inch
- Illumination: Green tritium at the front and both rear dots; no batteries required
- Rear sight: Serrated U-notch with black lamp outlines
- Set contents: One front sight and one rear sight
- Overall front blade height: 0.188 inch
- Rear blade height: 0.185 inch
- Overall rear height: 0.26 inch
- Rear notch width: 0.169 inch
