Description

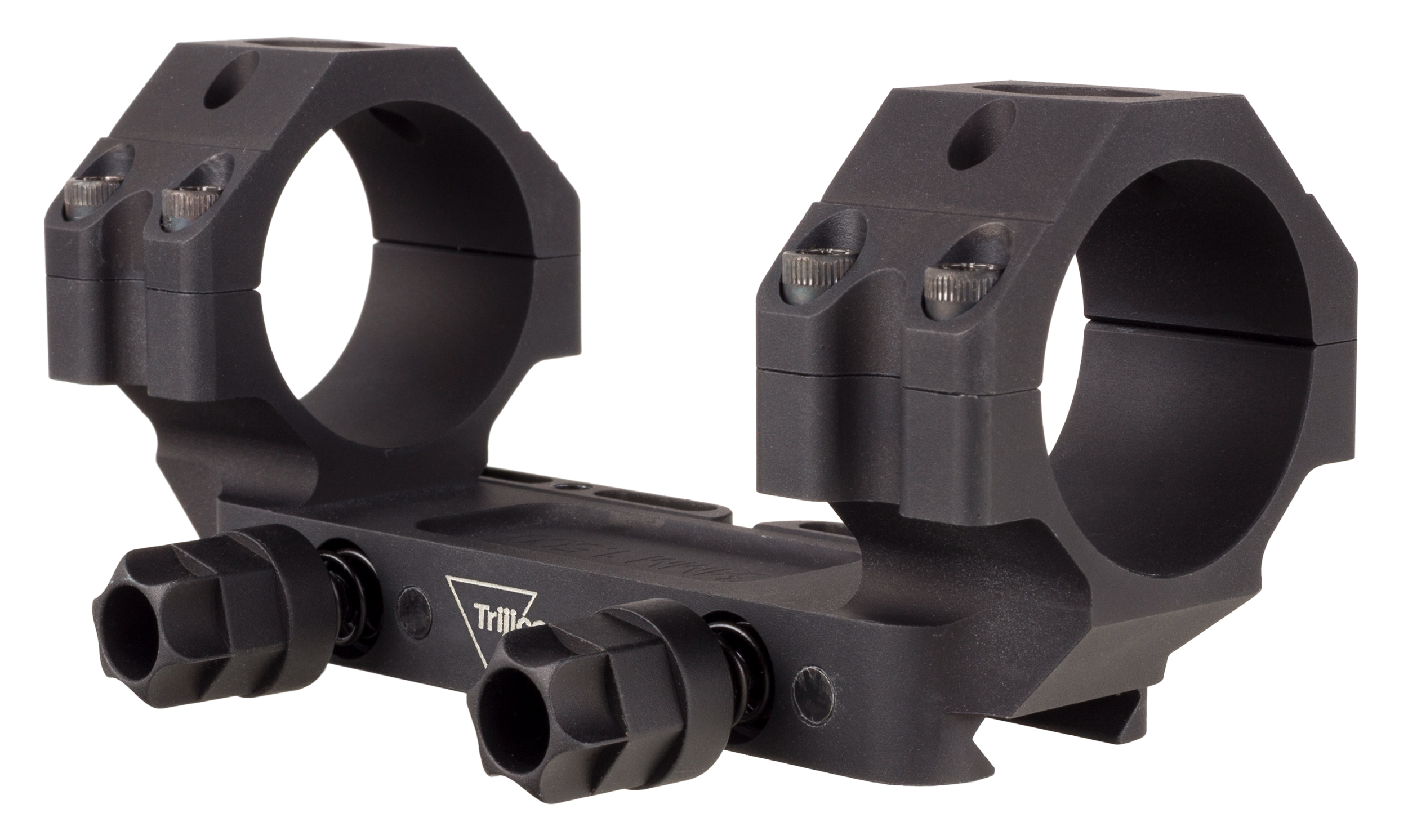

Trijicon 34mm Q-LOC Bolt-Action Scope Mount, 1.125-Inch Height, 20 MOA
The AC22048 combines a 34 mm scope interface with a 1.125-inch optical-axis height and 20 MOA of built-in cant. It is the canted Q-LOC bolt-action variant, with a compact base rather than a forward-offset cantilever. Trijicon lists this exact model for objective lenses up to 44 mm, a different limit from the non-canted AC22042.
The mount uses 6061-T6 aluminum, a matte black anodized finish, and spring-loaded Q-LOC attachment for Picatinny rails. Its 20 MOA base angle is separate from its mounting height. Confirm that both dimensions suit the scope and rail combination, including the physical clearance around the scope housing.
Specifications
- Manufacturer part number: AC22048
- Scope tube diameter: 34 mm
- Mount style: Q-LOC bolt-action
- Optical-axis height above the rail: 1.125 inches
- Built-in cant: 20 MOA
- Rail compatibility: MIL-STD-1913 / NATO Picatinny
- Material: 6061-T6 aluminum
- Finish: matte black anodized
- Manufacturer-listed objective lens size: up to 44 mm; actual clearance depends on the scope and firearm
- Includes: one mount, two ring caps, eight screws, and one hex key
