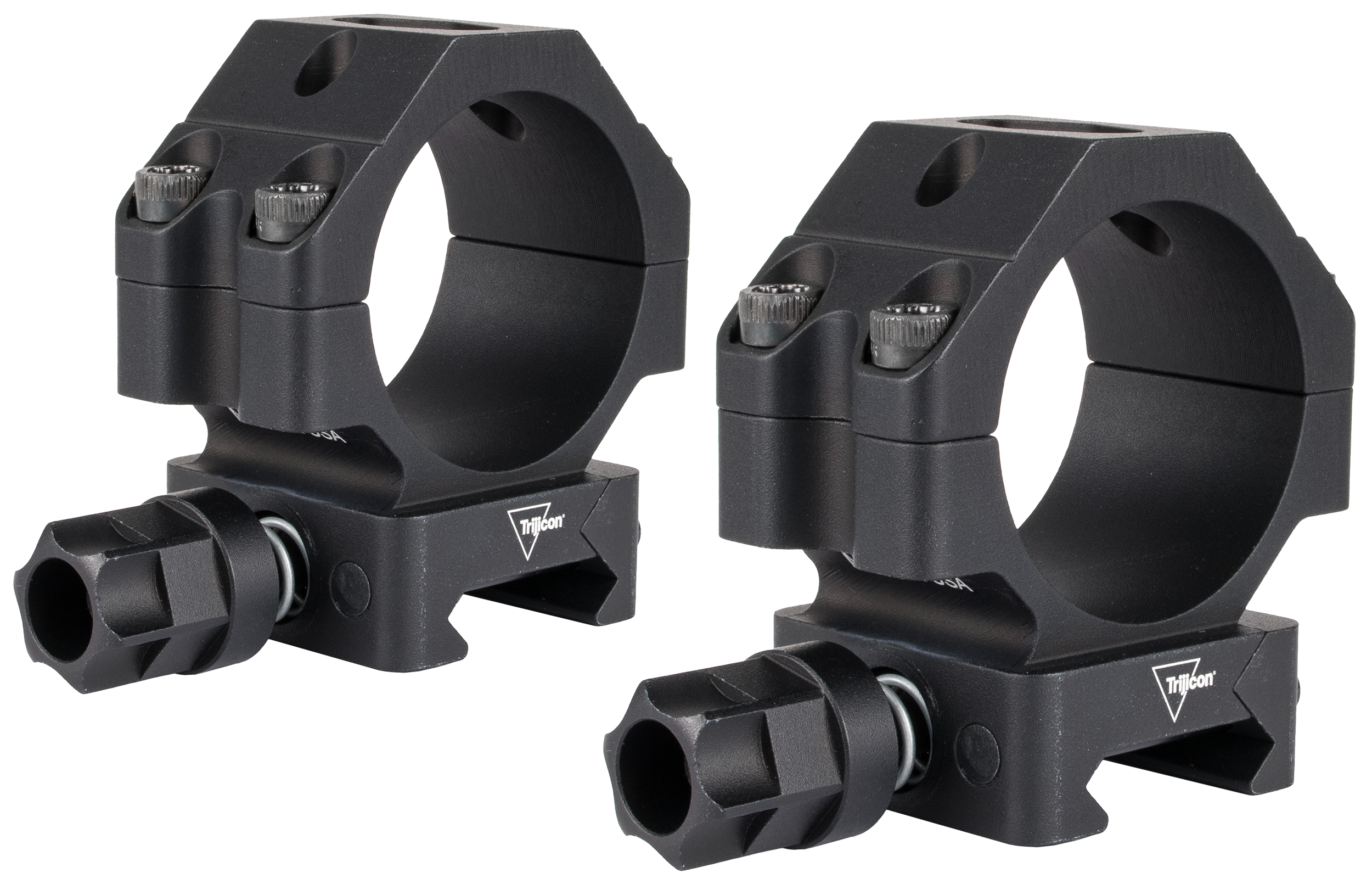

Trijicon 35mm Q-LOC Scope Rings, Low
The AC22072 combines a 35 mm ring bore with a low 1.0-inch optical-axis height. It is intended for a 35 mm scope tube and is not interchangeable with the visually similar 34 mm version. Trijicon lists this low set for objective lenses up to 40 mm, subject to the outside housing dimensions and available rifle clearance.
The independent rings use spring-loaded Q-LOC attachment for compatible Picatinny rails. Their 6061-T6 aluminum bodies have a matte black anodized finish, and the package includes both caps, eight screws, and a hex key. The separate bases allow spacing to follow the usable scope tube, without a fixed one-piece mount arrangement.
Specifications
- Manufacturer part number: AC22072
- Scope tube diameter: 35 mm
- Height class: low
- Optical-axis height above the rail: 1.0 inch
- Attachment: Trijicon Q-LOC
- Rail compatibility: MIL-STD-1913 / NATO Picatinny
- Material: 6061-T6 aluminum
- Finish: matte black anodized
- Manufacturer-listed objective lens size: up to 40 mm; actual clearance depends on the scope and firearm
- Includes: two ring mounts, two ring caps, eight screws, and one hex key
