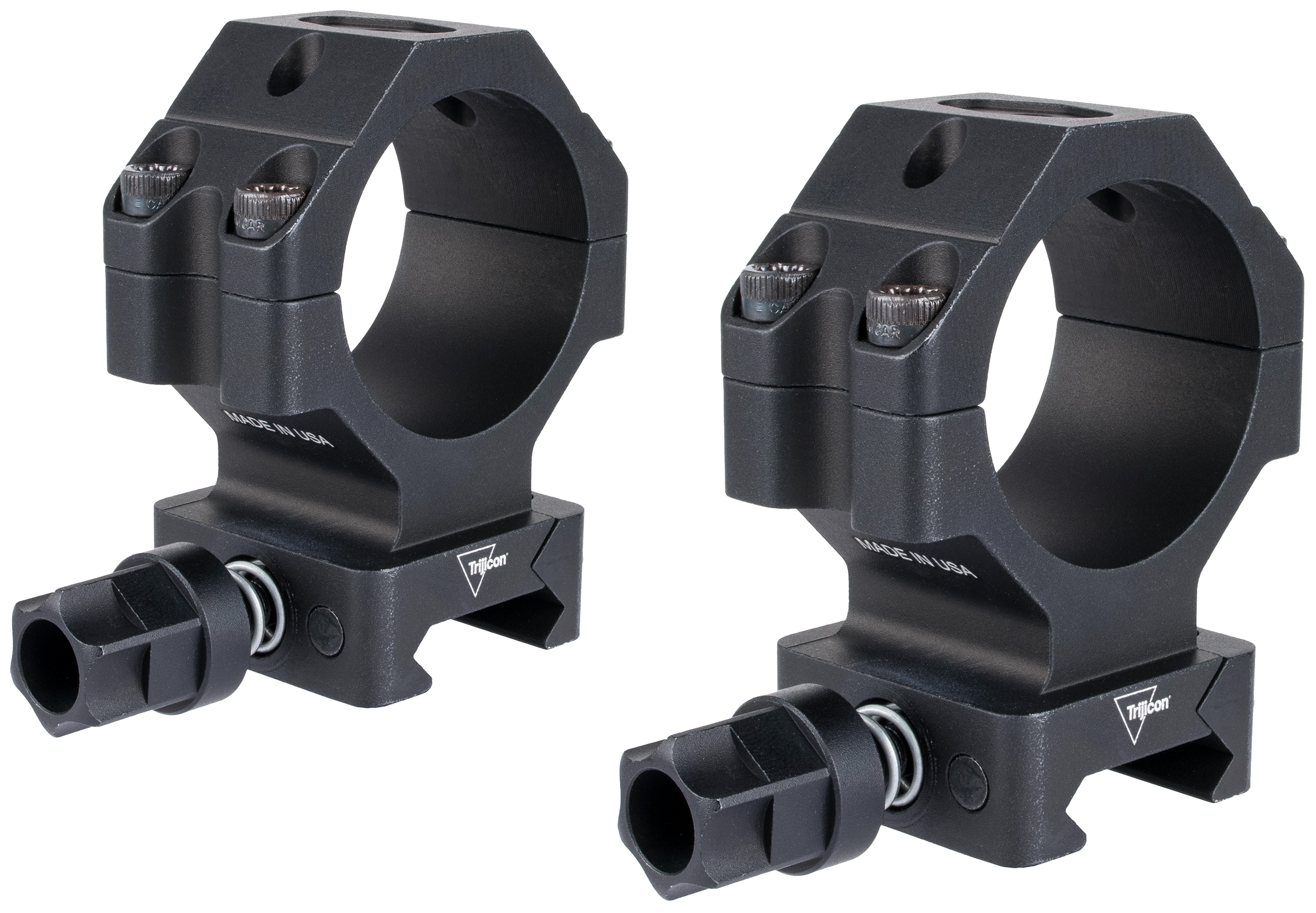

Trijicon 35mm Q-LOC Scope Rings, High
The AC22074 is the high 35 mm Q-LOC ring set, with a 1.3-inch optical-axis height above the rail. Trijicon lists this model for objective lenses up to 50 mm. It sits between the medium and extra-high 35 mm options, giving a specific measured height to compare with the required scope position.
Its two independent rings are made from 6061-T6 aluminum and have a matte black anodized finish. Spring-loaded Q-LOC attachment fits compatible Picatinny rails, while separate bases provide flexibility in ring spacing. Check the scope’s usable tube length and the outside dimensions of the objective housing; neither can be determined from the 35 mm main-tube size alone.
Specifications
- Manufacturer part number: AC22074
- Scope tube diameter: 35 mm
- Height class: high
- Optical-axis height above the rail: 1.3 inches
- Attachment: Trijicon Q-LOC
- Rail compatibility: MIL-STD-1913 / NATO Picatinny
- Material: 6061-T6 aluminum
- Finish: matte black anodized
- Manufacturer-listed objective lens size: up to 50 mm; actual clearance depends on the scope and firearm
- Includes: two ring mounts, two ring caps, eight screws, and one hex key
