Trijicon Compact ACOG Scopes

Trijicon Compact ACOG Scopes

Trijicon Compact ACOG scopes bring fixed magnification and battery-free reticle illumination to a smaller optical format. The family includes 1.5x16S, 1.5×24, 2×20, 3×24 and 3×30 configurations, plus dedicated 3×24 XB crossbow models. Magnification is only the first distinction: reticle geometry, illumination color, housing height and mounting package also separate the models.

Compare Magnification and Viewing Dimensions

The 1.5x16S TA44 offers a 39-foot field of view at 100 yards and 2.4-inch eye relief. The 1.5×24 TA45 has the same magnification but longer 3.6-inch eye relief, a larger 24 mm objective and a narrower 25.6-foot field of view. The 2×20 TA47 sits between the 1.5x and 3x options, with 2.1-inch eye relief and a 29.3-foot field of view.

The two 3x families also differ. The 3×24 TA50 has 1.4-inch eye relief and a 25.6-foot field of view, while the 3×30 TA33 has 1.9-inch eye relief and a 19.3-foot field of view. All field-of-view figures here are measured at 100 yards. These viewing dimensions are useful comparisons when two products have the same magnification or similar reticles.

Choose the Reticle, Not Just the Color

Ring-and-dot models provide a simple circular outline and center reference. Crosshair, chevron and horseshoe-and-dot configurations offer different central shapes, with ballistic calibration on designated models. A .223 reticle, a 7.62×39 reticle and a .300 Blackout reticle are not interchangeable merely because their illumination colors match.

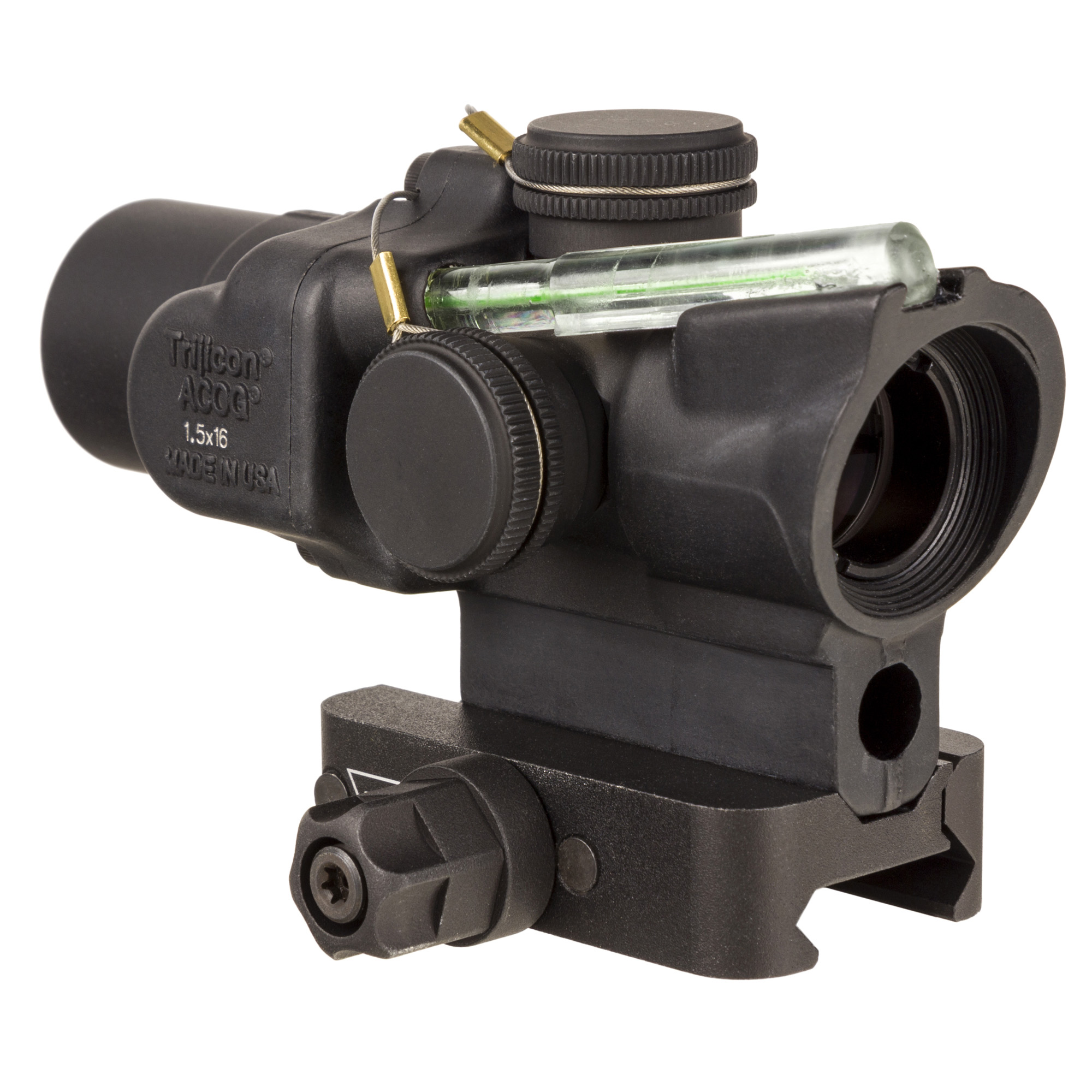

Compare the green ring-and-dot 1.5x16S TA44-C-400329 with the RTR 9mm PCC TA44-C-400389. The first has a green ring and 2 MOA center dot; the second adds a caliber-specific horseshoe-and-dot pattern with ballistic references. RTR versions span more than one generation, so the complete model number matters as much as the RTR name.

Housing Height, Mounts and Combination Packages

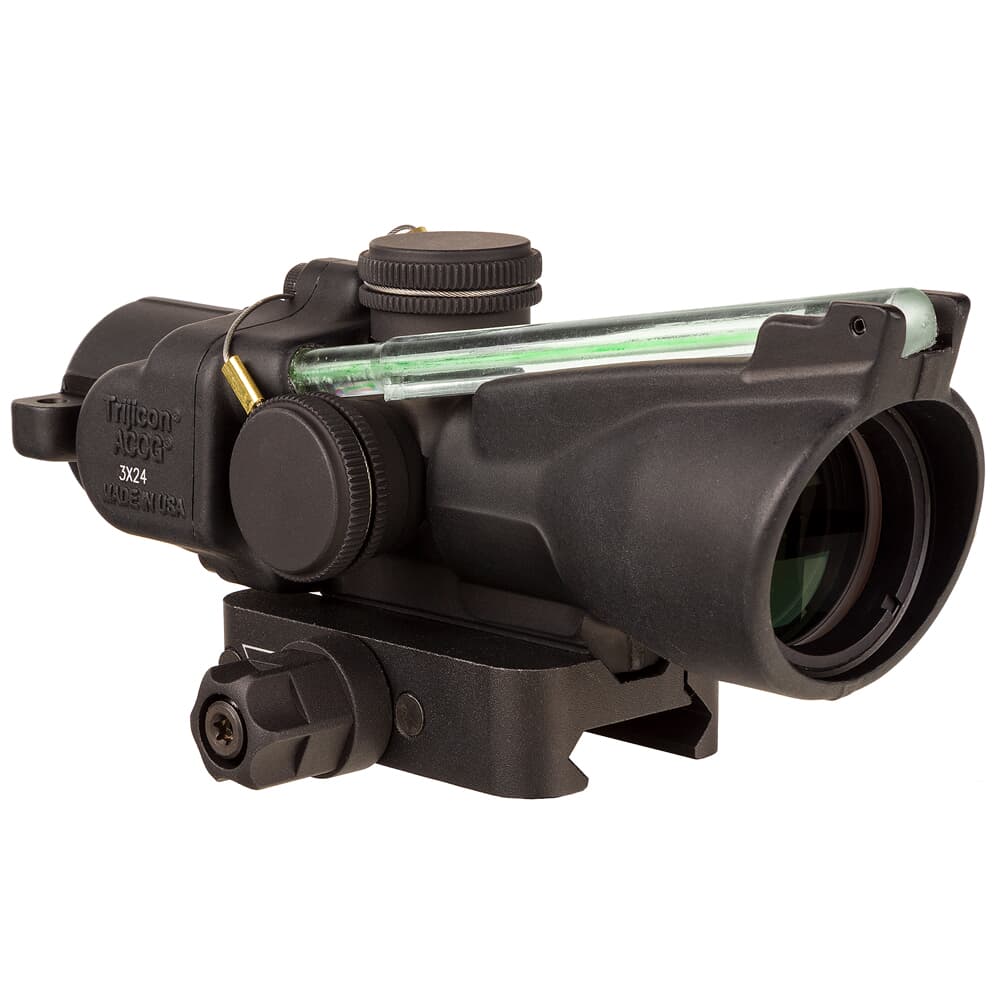

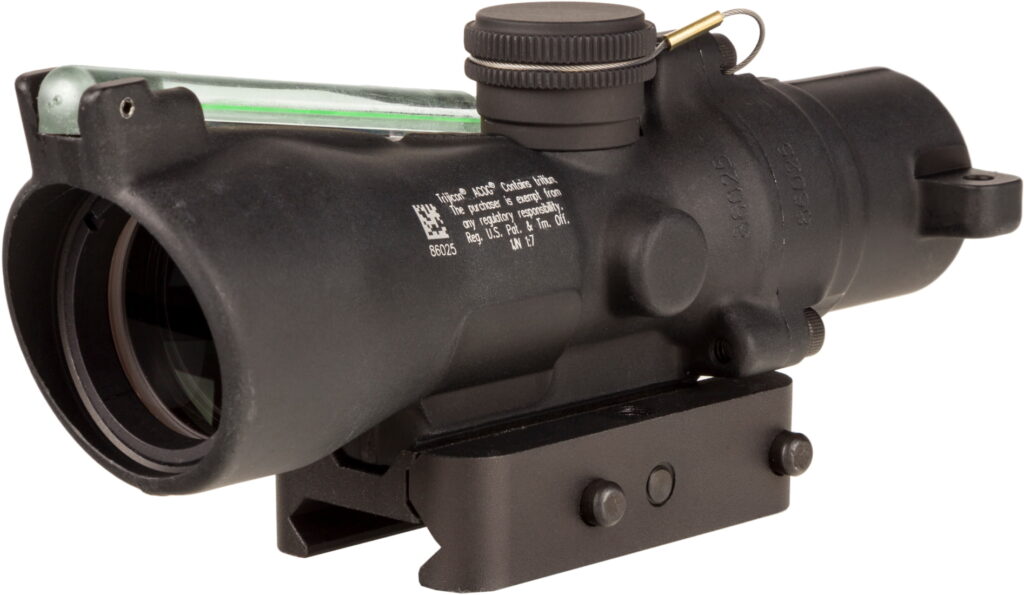

Low-height versions are offered within the TA44 and TA50 families. A low-height housing is a distinct configuration, not simply another name for the Q-LOC mount. Compare the complete optic-and-mount arrangement with the available rail space and clearance. Packages specifying a Q-LOC mount include Trijicon’s quick-release Picatinny mounting system.

The TA33-C-400394 combination pairs a green 3×30 ACOG with an automatic LED RMR Type 2 and a 3.25 MOA red dot. The ACOG uses fiber optics and tritium, but the RMR is an electronic sight. This package should not be confused with a standalone TA33 or a combination supplied with a manually adjustable LED RMR.

Dedicated XB Crossbow Models

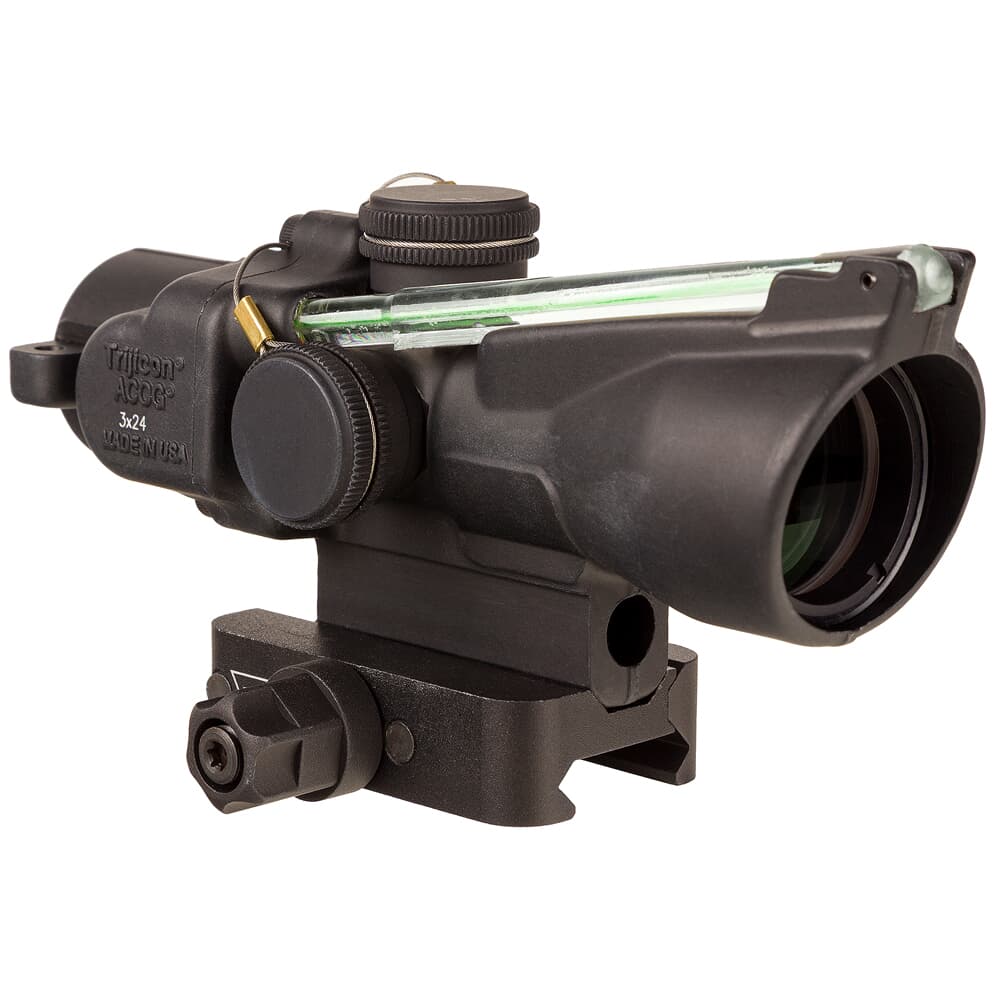

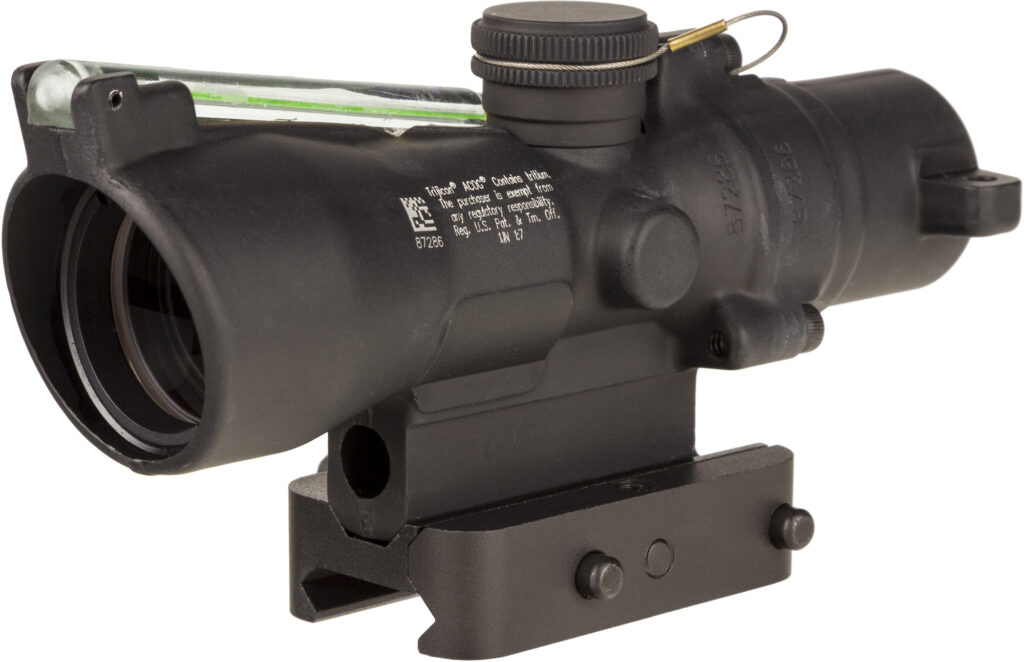

The 3×24 XB scopes use green chevron reticles with bolt-drop and ranging references. TA50-C-400391 is designated for 300-340 fps bolt speeds; TA50-C-400393 is designated for 400-440+ fps. Their shared color and magnification do not make the speed-specific reticles identical. For other magnifications and larger formats, explore the related Trijicon ACOG collection.

Frequently Asked Questions

Do Compact ACOG scopes need batteries?

The dual-illuminated Compact ACOG scopes use fiber optics and tritium, so the scope reticle does not require a battery. A bundled LED RMR is a separate sight with its own electronic illumination.

Is a Compact ACOG a variable-power scope?

No. These models have fixed magnification. A 3×24 model is a 3x optic with a 24 mm objective, not a scope that zooms from 3x to 24x.

What is different about the low-height models?

They use a lower housing profile than their standard-height counterparts. The final viewing height also depends on the mount and rail arrangement, so low height does not promise universal fit or clearance.

Are all RTR 9mm models the same?

No. The original TA44-C-400389 has a 2 MOA illuminated center dot and a reticle designated for 115-grain ammunition. The newer TA44-C-400409 has an illuminated horseshoe and center dot, with references for 115- and 147-grain ammunition. Match the complete model number and reticle specification when comparing generations.

Does every 3×30 package include an RMR?

No. TA33-C-400394 includes an RMR Type 2 with an automatic LED 3.25 MOA red dot. Standalone TA33 configurations do not include that reflex sight simply because they share the 3×30 format.

Can the XB reticles be treated as rifle reticles?

No. The XB models are dedicated crossbow scopes with bolt-speed-specific reticles. Their markings differ from the cartridge-specific ballistic patterns in the rifle models.
